Cal-Royal ICAG05 Storeroom Lock - Accepts SFIC Core

Cal-Royal ICAG05 Storeroom Lock - Accepts Small-format Interchangeable Core (SFIC) (core not included)  -*ANSI*F91

Outside lever fixed. Entrance by key only. Inside lever always unlocked.

ANSI:Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

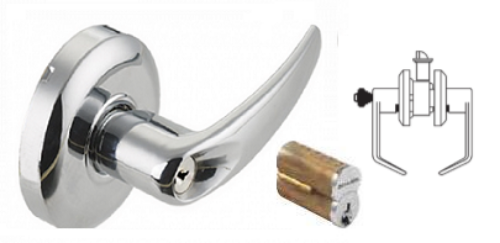

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

Model:Cal-Royal ICAG05,Cal-Royal ICAG05US26D,Cal-Royal ICAG05US1,Cal-Royal ICAG05US,3Cal-Royal ICAG05US4,Cal-Royal ICAG05US10,Cal-Royal ICAG05US10BE,Cal-Royal ICAG05US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
