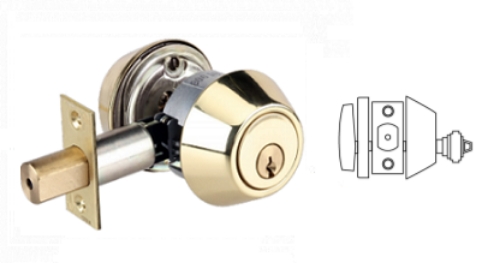

Cal-Royal ICCL600 Single Cylinder Deadbolt - Accepts SFIC Core

Cal-Royal ICCL600 Grade 2 Heavy duty Single cylinder deadbolt, UL listed - Accepts Small-format Interchangeable Core (SFIC) (core not included) - ANSI:E0172

Classroom Deadbolt Lock:Deadbolt thrown or retracted by key from outside. Inside turn unit will retract bolt only. Bolt automatically deadlocks when fully thrown.

Material- Wrought brass or stainless steel.

Door Ranges- Adjustable for 1-3/8" to 1-3/4" door thickness.

Backset- Adjustable 2-3/8" or 2-3/4. UL Listed.

Strikes- 1-1/8" X 2-3/4" square corner.

Interchangeable core- Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW. Less Core

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Face Plate- Standard 2-1/4" x 1" packed with 1/8" plastic filler for 1-1/8" width.

Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 3" screws with wood frame reinforcer greatly strengthens door frames.

Finishes:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US26 - Bright Chrome, US10 - Satin Bronze, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

Model:Cal-RoyalICCL600, ICCL600US26D, ICCL600US3, ICCL600US4, ICCL600US5, ICCL600US10, ICCL600US15, ICCL600US10B, ICCL600US26.

Meets or exceeds standards of BHMA/ANSI A 156.5 Grade? 2 requirements
