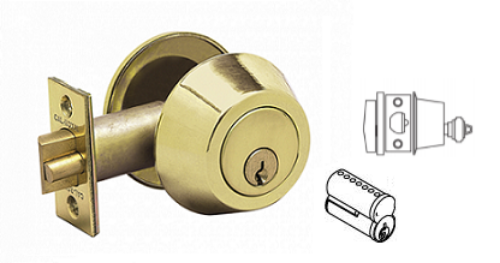

Cal-Royal ICGL220 Grade 2, Single cylinder Gate Latch (2 3/8" backset) - Accepts SFIC Core

Cal-Royal ICGL220 Standard Duty Grade 3, Single cylinder Gate Latch - Accepts Small-format Interchangeable Core (SFIC) (core not included) - ANSI:E0153  (2 3/8" backset)

FUNCTION:Dead locking latch bolt retracted by key from outside or by thumb turn on inside. Otherwise always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:  2-3/8"

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

INTERCHANGEABLE CORE:Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal Series,ICGL220, ICGL220US26D, ICGL220US3, ICGL220US4, ICGL220US5, ICGL220US10, ICGL220US15, ICGL220US10B, ICGL220US1, ICGL220US26.
