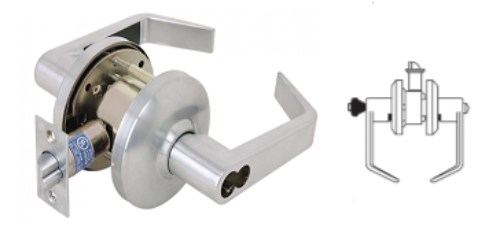

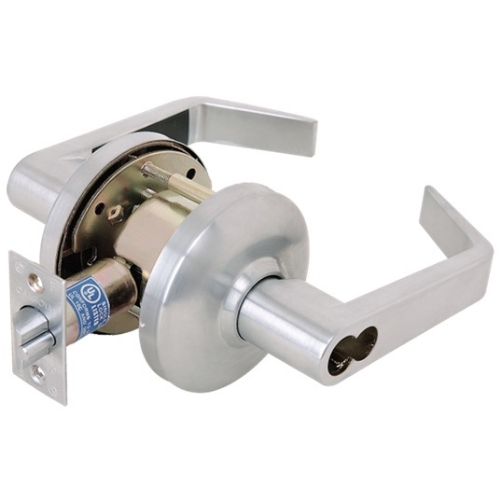

Cal-Royal ICCOM00 US26D Grade 2, Entrance Lock, Satin Chrome - Accepts Schlage LFIC Core

Cal-Royal ICCOM00 US26D Grade 2, Entrance Lock, Satin Chrome - Accepts Schlage Large-format Interchangeable Core (LFIC) (core not included) - With Clutch

ANSI F109

Turn / Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.

DOOR RANGES: 1 3/8" to 1 3/4" thickness doors.

BACKSET: 2 3/4" Standard, 2 3/8", 3 3/4" and 5" optional.

LATCH FACEPLATE: 2 1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2", for 2 3/4" backset. Optional 2 1/4" x 1" for 2 3/8" backset.

STRIKES: ASA strike standard, "T" and full lip strike available on request.

LATCH BOLT: 1/2" Throw solid brass, reversible for RH or LH applications. UL Listed.

ANSI STANDARDS: Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
