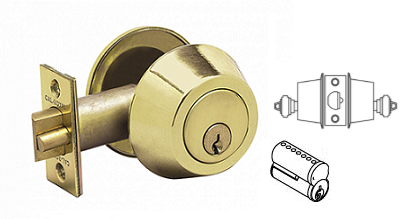

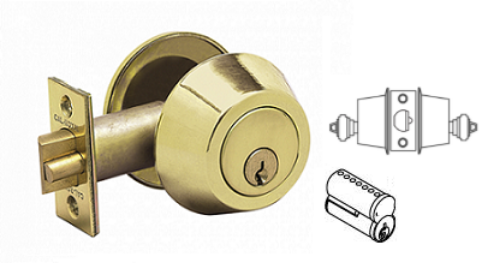

Cal-Royal ICGL330 Standard Duty Grade 2, Double Cylinder Gate Latch - Accepts SFIC Core

Cal-Royal ICGL330 Standard Duty Grade 2, Double Cylinder Gate Latch - Accepts Small-format Interchangeable Core (SFIC) (core not included) - ANSI:E0143  (2 3/8" backset)

FUNCTION:Dead locking latch bolt retracted by key from either side. Otherwise, always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:  2-3/8"

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

INTERCHANGEABLE CORE:Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal Series,ICGL330, ICGL330 US26D, ICGL330 US3, ICGL330 US4, ICGL330 US5, ICGL330 US10, ICGL330 US15, ICGL330 US10B, ICGL330 US1, ICGL330 US26. ICGL330US26D, ICGL330US3, ICGL330US4, ICGL330US5, ICGL330US10, ICGL330US15, ICGL330US10B, ICGL330US1, GL330US26.
