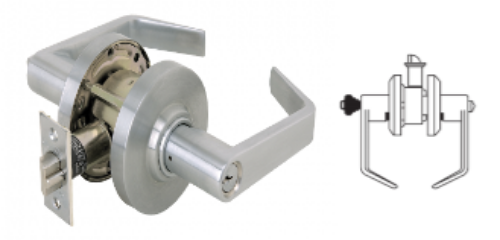

Cal-Royal CXP00 Grade 2, Entrance Lock - With Clutch

Cal-Royal CXP00 *Grade 2,*Entrance Lock - With Clutch - ANSI: F109

Turn/Push button locking. Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle. Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Cylinders & Keyways- 6 pin solid brass "C" keyway standard

Keys:2 keys per lock.

model:Cal-Royal CXP00,Cal-Royal CXP00US26D,Cal-Royal CXP00US10B,Cal-Royal CXP00US26,Cal-Royal CXP00US4,Cal-Royal CXP00US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
