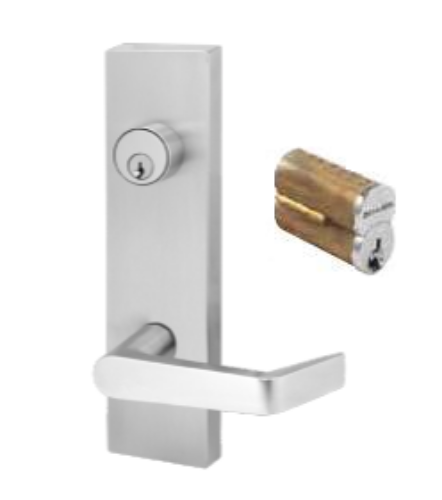

Cal-Royal ICHDESC-00 Entrance Exit Device Escutcheon Lever Trim - Stainless Steel - Accepts SFIC Core

Cal-Royal ICHDESC-00 Entrance Exit Device Escutcheon Lever Trim, Stainless Steel - With Clutch - Accepts Small-format Interchangeable Core (SFIC) (core not included)

Rigid Entrance, key locks or unlocks escutcheon trim: ANSI function (08) Operates as classroom function

Rigid, non clutch mechanism. Double heavy duty spring support to prevent sagging and enhance operation. Grade 1, thru-bolted design. Non-handed design. Easily field reversible. All Stainless Steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.

Door Thickness: Standard 1-3/4". For 2-1/4thick door use additional part# TAIL9.

Escutcheon dimensions: 2-5/8 width X 10-5/8 length. Lever length: 4-5/8". Fits and covers 2-1/8 161 cutout

(IC) INTERCHANGEABLE CORE: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.
