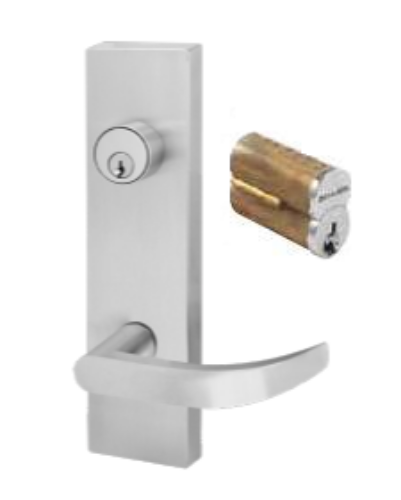

Cal-Royal ICHDRLESC-00 Entrance Exit Device Escutcheon Lever Trim - Stainless Steel - Accepts SFIC Core

About this item

Cal-Royal ICHDRLESC-00 Entrance Exit Device Escutcheon Lever Trim, Stainless Steel - With Clutch - Accepts Small-format Interchangeable Core (SFIC) (core not included)

Rigid Entrance, key locks or unlocks escutcheon trim: ANSI function (08) Operates as classroom function

Rigid, non clutch mechanism.
Double heavy duty spring support to prevent sagging and enhance operation.
Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.

Door Thickness: Standard 1-3/4". For 2-1/4 thick door use additional part# TAIL3.

Escutcheon dimensions: 2-3/4" width X 10-1/4 length. Lever length: 4-3/4". Fits and covers 2-1/8161 cutout

(IC) INTERCHANGEABLE CORE: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Resources

• https://www.cal-royal.com/files/7700_Accessories_RIMSVR.pdf
