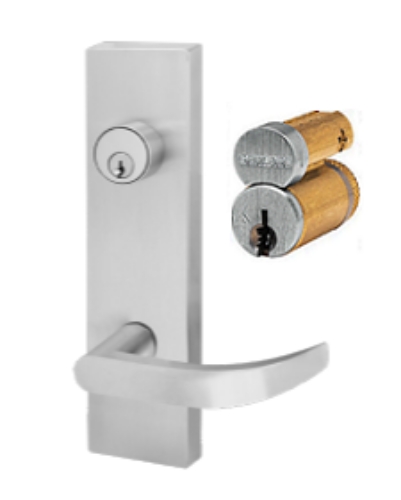

Cal-Royal ICSCHDRLESC-05 Storeroom Exit Device Escutcheon Lever Trim - Stainless Steel - Accepts Schlage LFIC Core

About this item

Cal-Royal ICSCHDRLESC-05 Storeroom Exit Device Escutcheon Lever Trim, Stainless Steel - With Clutch - Accepts Schlage Large format Interchangeable Core (LFIC) (core not included)

Rigid Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked ANSI function (09)

Rigid, non clutch mechanism.
Double heavy duty spring support to prevent sagging and enhance operation.
Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.

Door Thickness: Standard 1-3/4". For 2-1/4" thick door use additional part# TAIL3.

Escutcheon dimensions: 2-3/4" width X 10-1/4" length. Lever length: 4-3/4". Fits and covers 2-1/8 161 cutout

(ICSC) INTERCHANGEABLE CORE: Indicates function available with Schlage Full size format Interchangeable Core.

Resources

• https://www.cal-royal.com/files/7700_Accessories_RIMSVR.pdf
