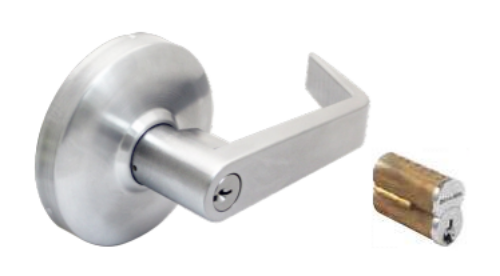

Exit device trims don't get much attention until the wrong one gets ordered, and then it becomes the only thing anyone's talking about on the job site. The Cal-Royal ICSTR05L is a storeroom function clutch lever trim for Cal-Royal exit devices, prepped to accept a Small Format Interchangeable Core from BEST, Arrow, or Falcon. If you're running a BEST 6 or 7 pin SFIC master key system and need a storeroom-function outside trim on a panic device, this is the part.
The core is not included. It ships as an IC-prepped trim body. Browse compatible BEST IC cores to pair the right core for your keying system.
What Is the Storeroom Function and When Does It Apply?
The ICSTR05L carries ANSI Function 09, Clutch Storeroom. The outside lever is always locked and fixed unless a key is used to activate it. From the inside, the exit device push rail always allows free egress regardless of whether the outside lever is locked. This function is standard for server rooms, pharmacies, supply rooms, restricted-access storage areas, and any commercial opening where you want controlled entry from outside but unrestricted exit from inside at all times.
The clutch mechanism is the key design feature here. If someone applies excessive force to the outside lever when it's locked, the lever freewheels rather than transferring torque to the latch mechanism. This prevents the kind of forced-entry lever damage that wrecks standard rose-mounted trim designs. It's the right trim for high-security restricted openings, not a budget option.
Cal-Royal ICSTR05L Technical Specifications
ANSI function: 09, Clutch Storeroom. Core type: Small Format Interchangeable Core (SFIC), accepts BEST, Arrow, and Falcon cores. Core not included. Grade: Grade 1. Handing: non-handed, field reversible. Mounting: thru-bolted for additional security. Tailpiece: hardened steel heavy duty. Door thickness: 1-3/4" standard. Optional 2-1/4" thick door prep available, prefix "THI" before part number when ordering. Keyway (standard cylinder option): 6-pin solid brass "C" keyway. Optional keyways: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA, and Kwikset. High security cylinder options: Medeco, Assa, Kaba, and Cal-Royal HSK.
Compatible Exit Device Series
The ICSTR05L is designed for use with Cal-Royal 2200, 6600, 7700, and 9800 Series exit devices. If your facility runs 9800 Series rim panic devices or 7700 Series surface vertical rod devices and you need to add or replace a storeroom-function outside trim, this is the direct match. The non-handed clutch design means one SKU covers left-hand and right-hand doors without ordering separately. View the full range of Cal-Royal exit device trims for related functions including entrance (ENT00L), passage (PAS30L), and dummy (DUM40L) configurations.
Other Available IC Configurations for the Storeroom Function
If your facility uses a different IC platform, Cal-Royal offers additional storeroom trim variants: ICSCSTR05L4 for Schlage Large Format Interchangeable Core (LFIC), SARICSTR05L for Sargent SFIC, RUSICSTR05L for Corbin/Russwin SFIC, and YALICSTR05L for Yale SFIC. Make sure you're ordering the correct prefix for your master key system before placing the order.
Anti-Microbial Coating Option
An anti-microbial coating is available on the US32D satin stainless finish. Order using part number ANTB-TRIM when specifying for healthcare, food service, or any application requiring surface pathogen reduction. This option is not available on other finishes.
Available Finishes
US26D Satin Chrome, US32D Satin Stainless Steel, US26 Bright Chrome, US10B Oil Rubbed Bronze, US1 Bright Brass.
In stock and ships same day on qualifying orders. This trim is a common spec item for facility managers replacing worn storeroom trims on existing Cal-Royal panic devices. For device body options across all configurations, browse the full Cal-Royal exit device lineup.
