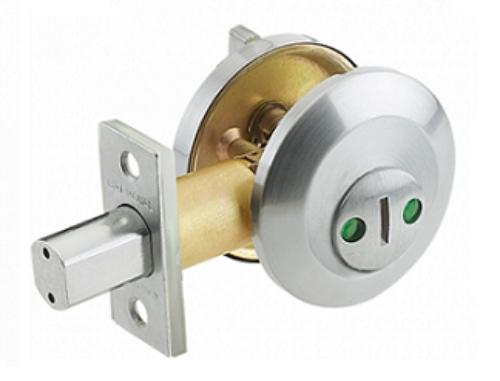

Cal-Royal IND84 Standard Duty Grade 3, Indicator Deadbolts

Cal-Royal IND84*Standard Duty Grade 3, Indicator Deadbolts - ANSI:E0153*

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4".

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

CYLINDER & KEYWAY:6 pin solid brass "C" keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

Conforms with ANSI A 156.2 Series 4000, Standard Duty GRADE 3

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal LSDSeries,IND84, IND84US26D, IND84US3, IND84US4, IND84US5, IND84US10, IND84US15, IND84US10B, IND84US1, IND84US26. IND84, IND84 US26D, IND84 US3, IND84 US4, IND84 US5, IND84 US10, IND84 US15, IND84 US10B, IND84 US1, IND84 US26.
