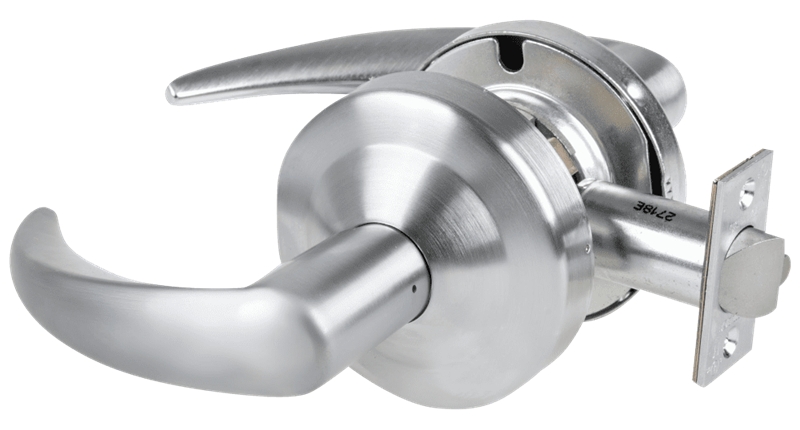

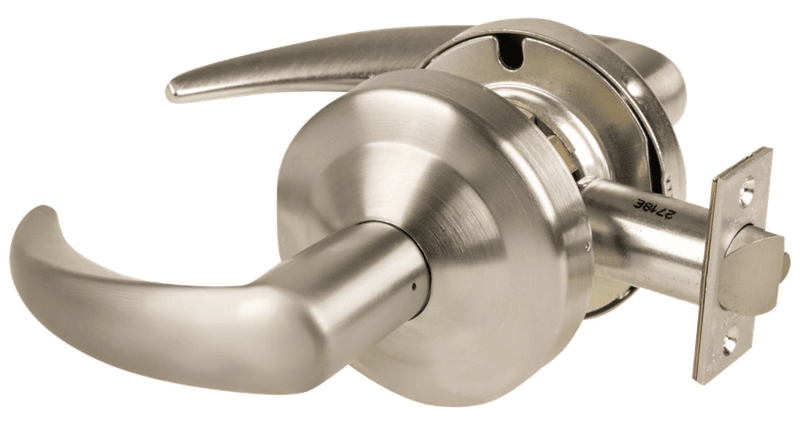

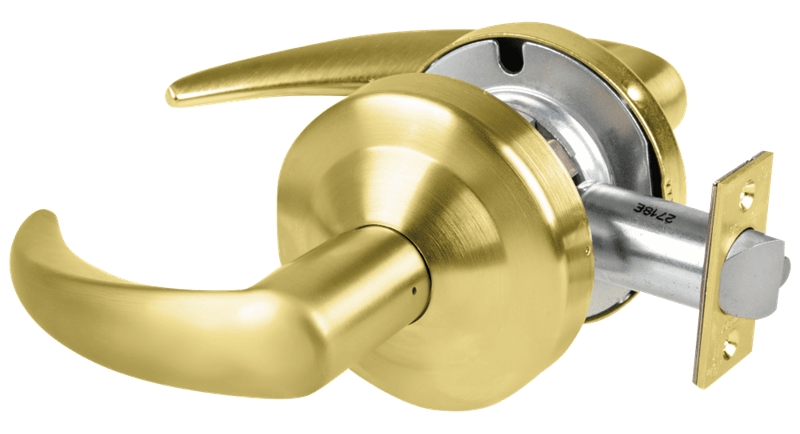

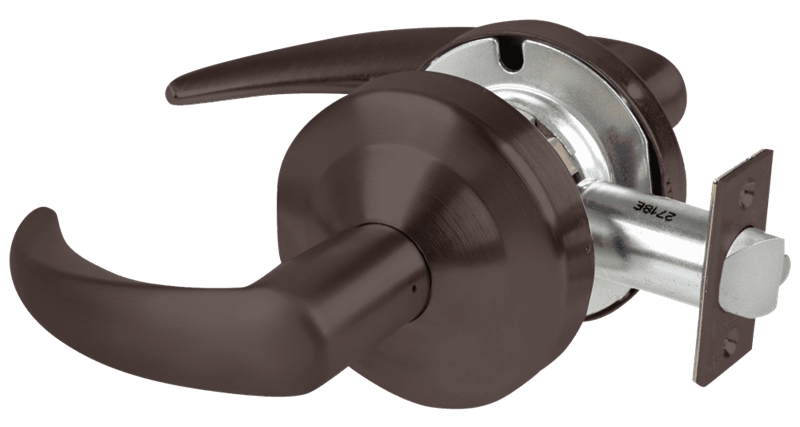

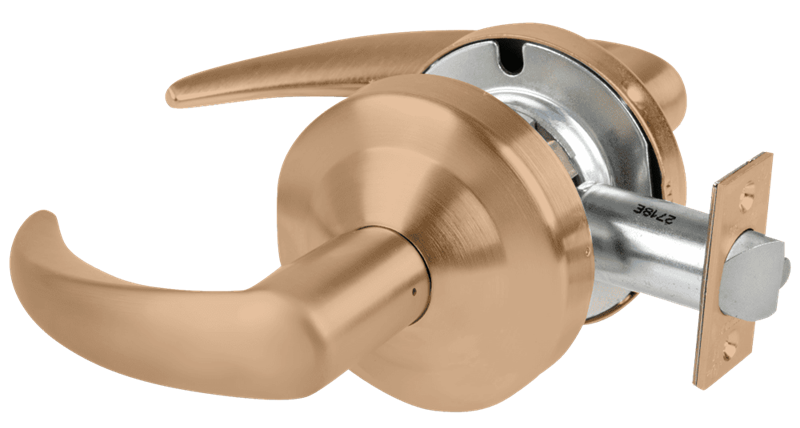

Schlage ND12DEU OME Grade 1 Electrified Cylindrical Lock, Exit Function, 12-24V DC, Fail Secure, Omega Lever

Schlage ND12DEU OME - Heavy Duty Exit Lever Set - Electrically Unlocked (Fail Secure) - Omega Style

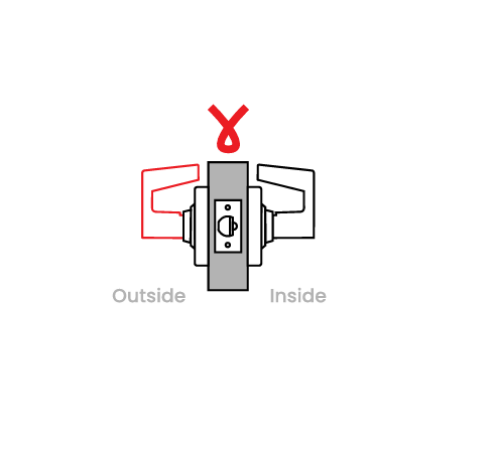

Outside lever continuously locked until unlocked by electric current  Auxiliary latch deadlocks latchbolt when door is closed  Inside lever is always free for immediate exit

UL Listed and rated for both fire and electrical single point locking on labeled doors.

Electrical Requirements:24V AC, .35 amps or 24V DC, .15 amps.

Operating Temperature:Maximum +151 1/2F, Minimum -31 1/2F

Lever Styles: Omega (OME)

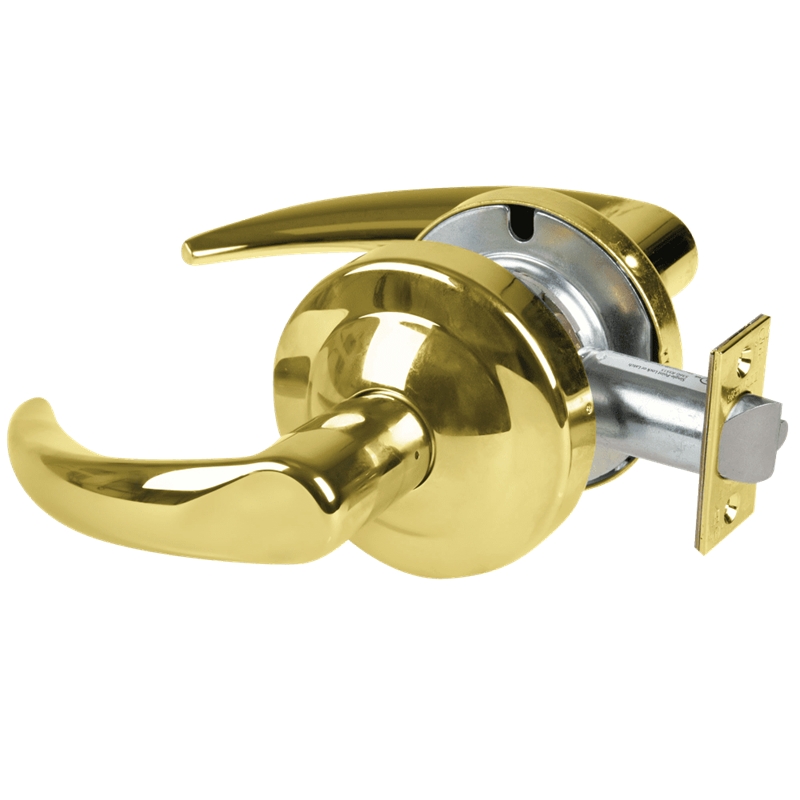

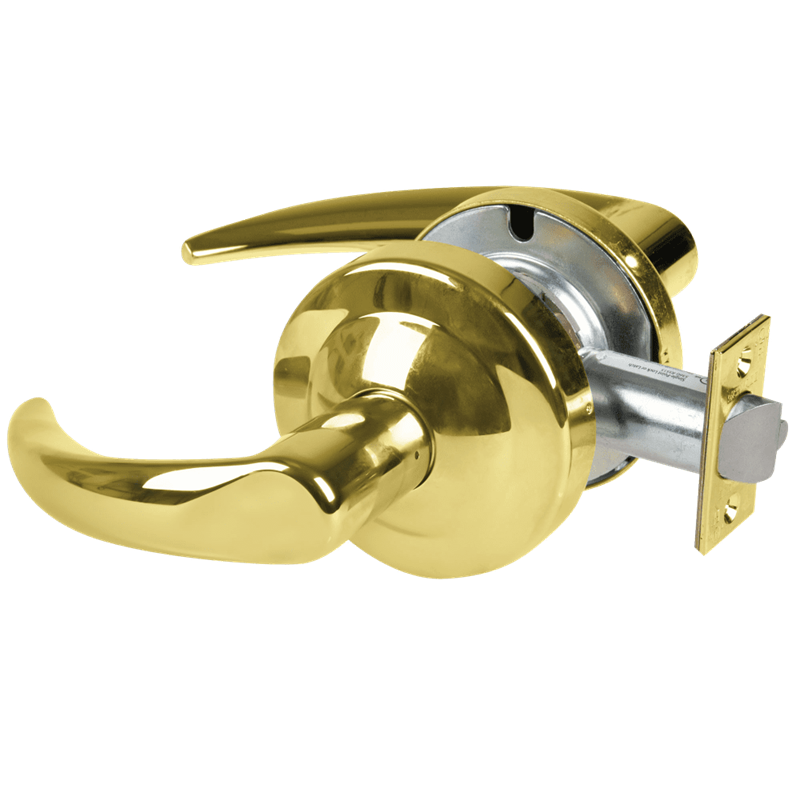

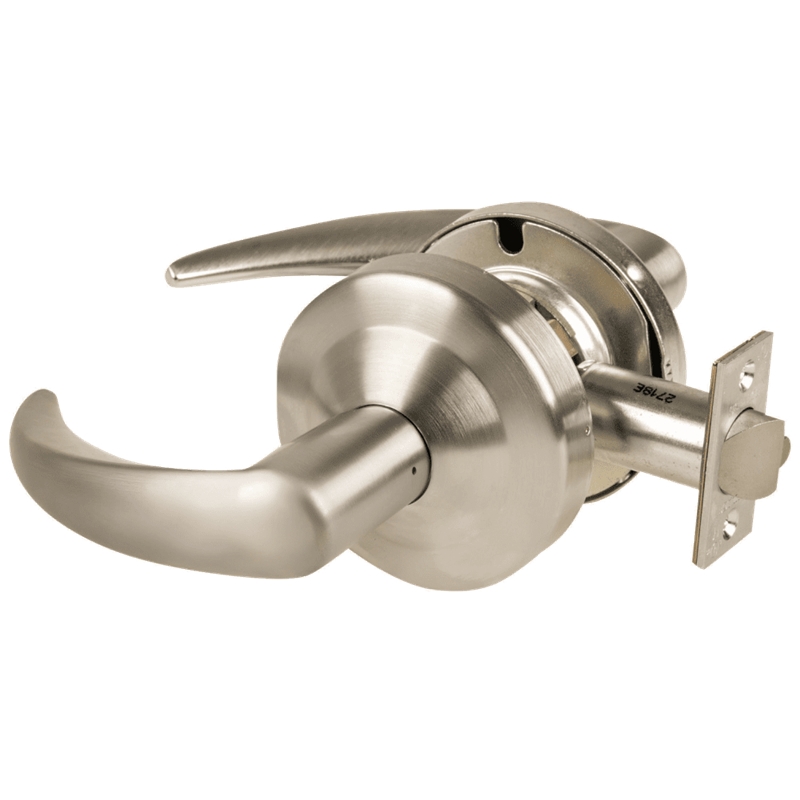

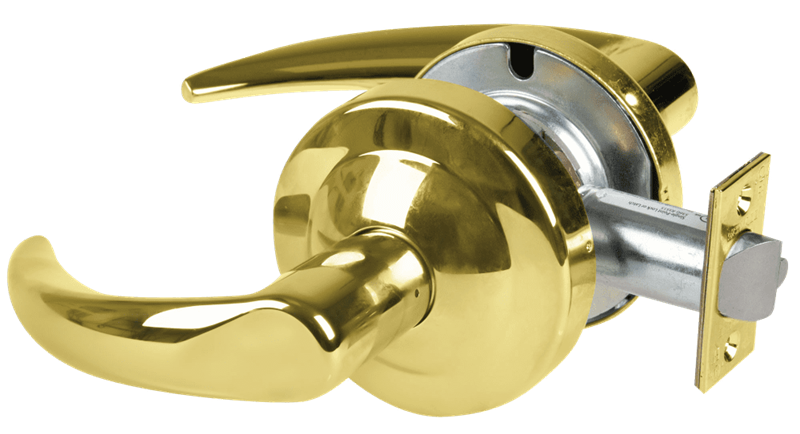

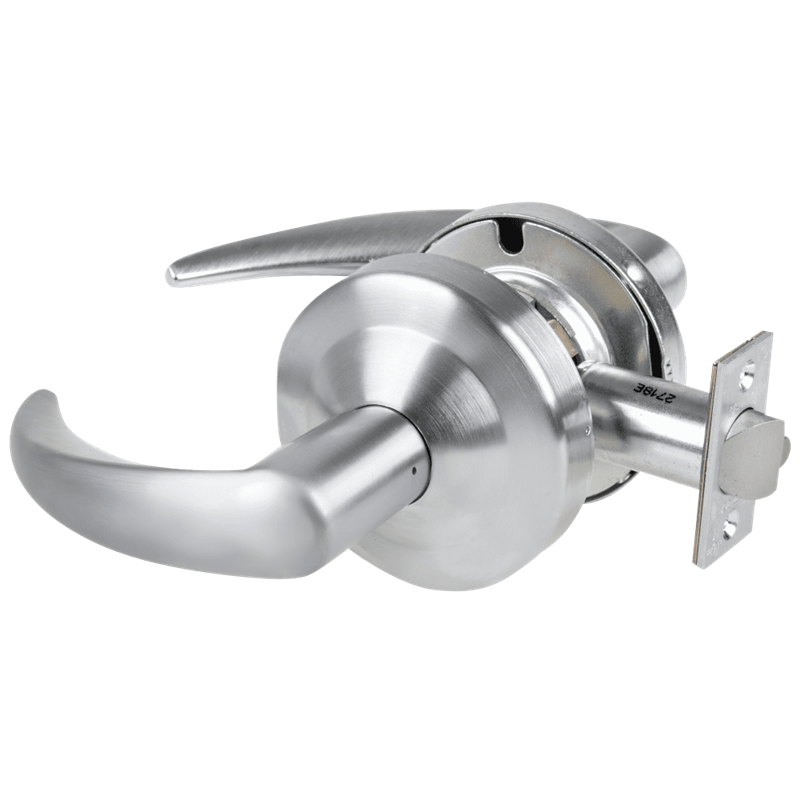

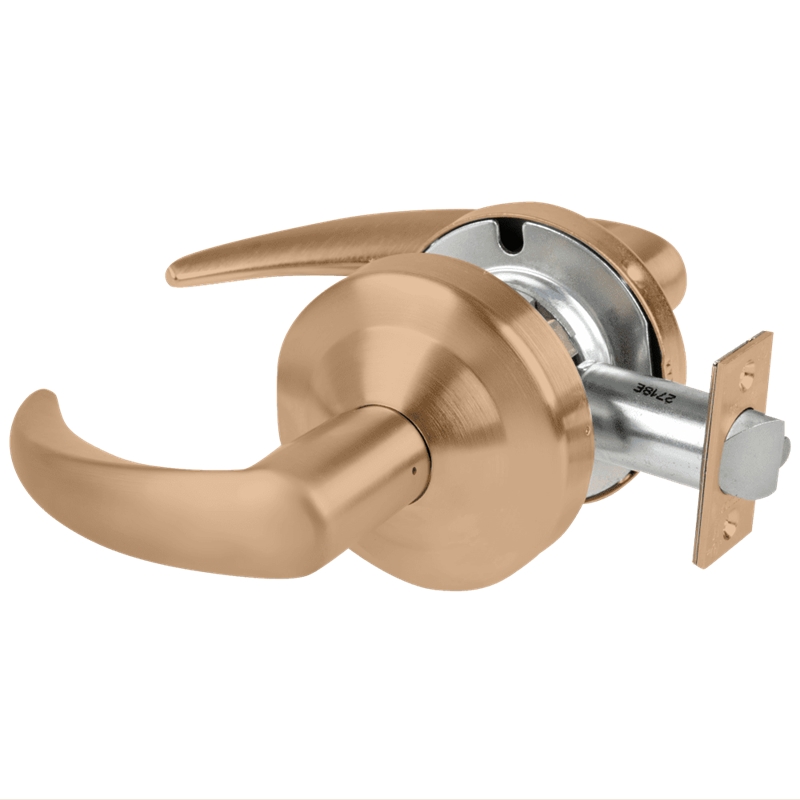

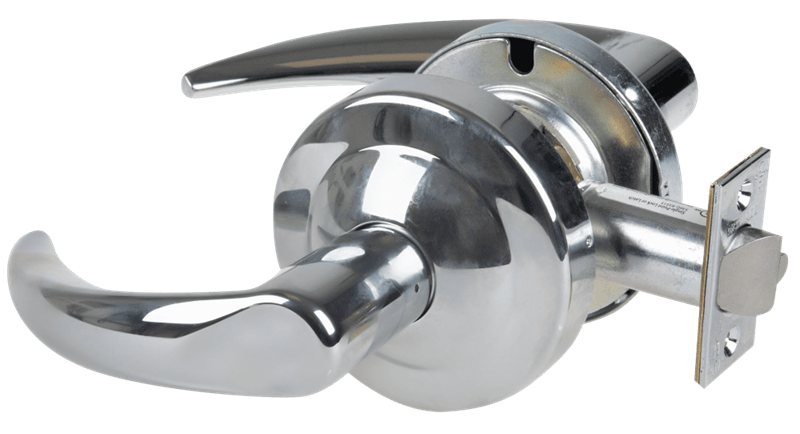

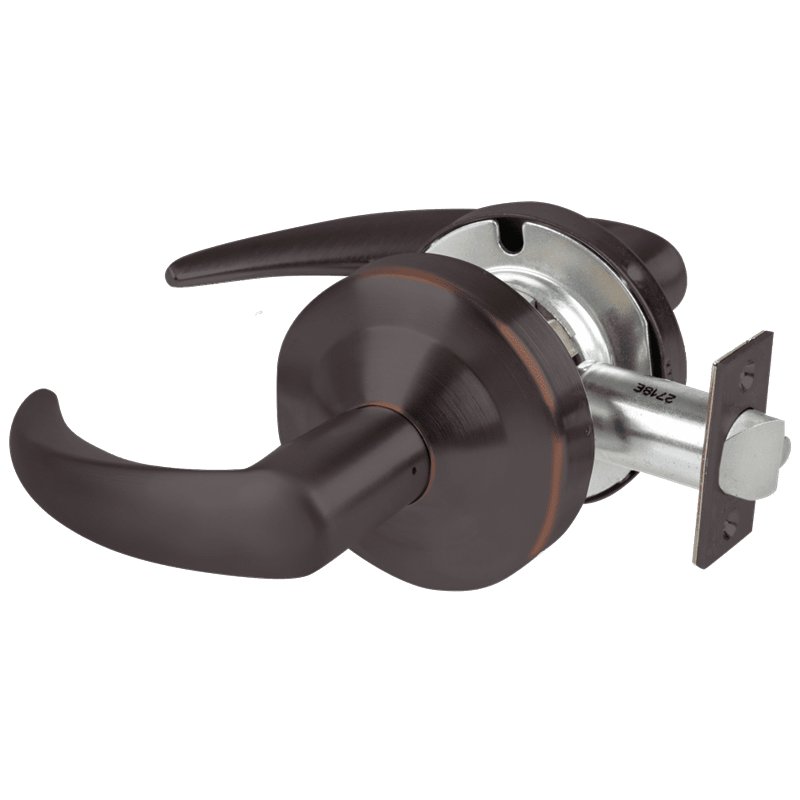

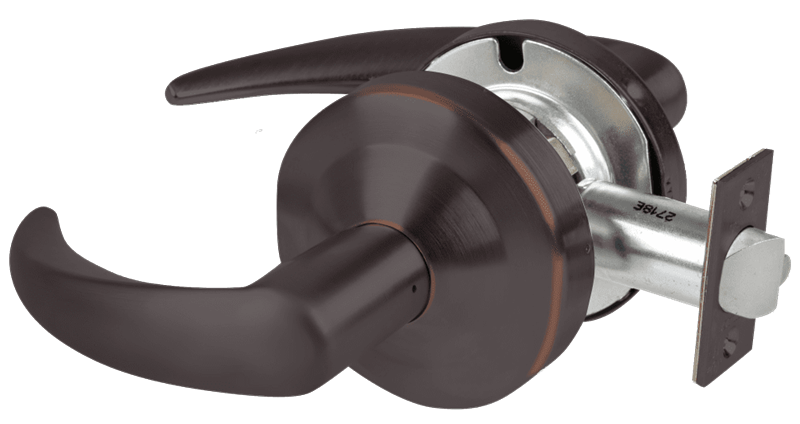

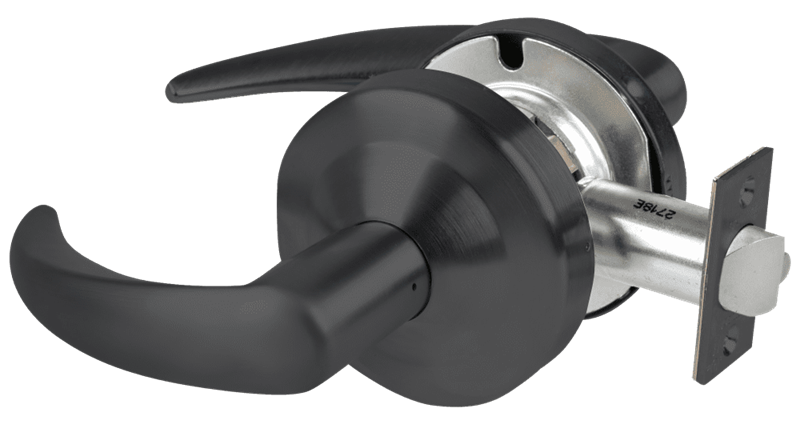

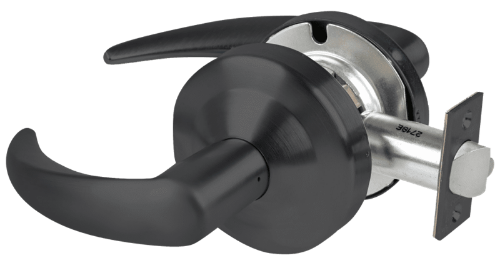

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately (please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available (please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors (please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Model: Schlage, ND12DEU, ND12, ND12DEUOME, ND12EUOME, ND12DEUOME643E, ND12DEUOME626AM, ND12DEUOME626,  ND12DEUOME625, ND12DEUOME622, ND12EUOME619, ND12DEUOME613, ND12DEUOME612,  ND12DEUOME606, ND12DEUOME605, 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643E.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Standard Features:

Cylindrical lock housing - Cold rolled steel, corrosion treated for normal atmospheric conditions

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)
