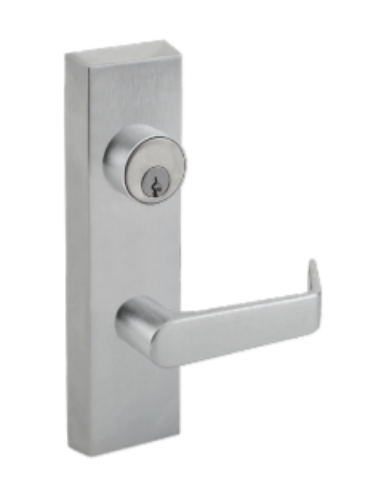

Cal-Royal N-CVRESC00 Entrance Exit Device Escutcheon Lever Trim
Entrance:Clutch Entrance, key locks or unlocks escutcheon trim ANSI FUNCTION (08) Operates as classroom function
Designed for 7700 And 9800 Concealed Vertical Rod Exit Device
Free-wheeling clutch mechanism, Grade 1, thru-bolted design, Non-handed design. Easily field reversible.
Door Thickness:Standard 1 3/4"
Escutcheon Dimensions:2 5/16" width X 8 1/2" length. Lever length: 4 3/4". Fits and covers 2 1/8" 161 cutout
KEYWAY: 6-Pin solid brass "C" keyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders. (IC)
INTERCHANGEABLE CORE: Interchangeable Core locks will accept compatible 6 or 7-Pin cores with BEST, FALCON and ARROW
(ICSC) INTERCHANGEABLE CORE: Indicates function available with Schlage Full Size Format Interchangeable Core. Corbin, Sargent and Yale format also available.
