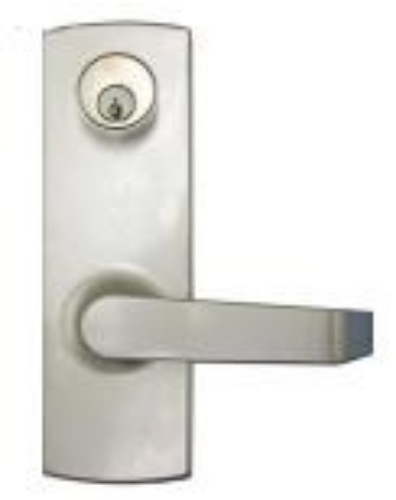

Cal-Royal NESC2200 Entrance Exit Device Escutcheon Lever Trim

About this item

Cal-Royal NESC2200 Entrance Exit Device Escutcheon Lever Trim

Rigid Entrance, key locks or unlocks escutcheon trim: ANSI function (63) Operates as classroom function

Grade 1, thrubolted design, rigid non-clutch, Non handed design.
Easily field reversible.
Hardened steel heavy duty tailpiece.  Available for fire
and non fire rated rim and vertical rod exit devices.

Door Thickness: Standard 1-3/4". For 2-1/4thick door use additional part# TAIL3.

Escutcheon dimensions: 2-3/4width X 8-3/4" length. Lever length: 4-3/4". Fits and covers 2-1/8161 cutout

Keyway: 6 pin solid brassCkeyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow 1C, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa and Kaba High Security Cylinders.

(IC) INTERCHANGEABLE CORE: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(ICSC) INTERCHANGEABLE CORE: Indicates function available with Schlage Full size format Interchangeable Core.

Resources

• https://www.cal-royal.com/files/2200_Accessories.pdf
