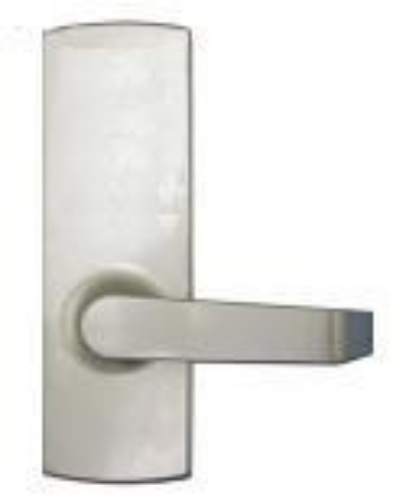

Cal-Royal NESC2230 Passage Exit Device Escutcheon Lever Trim

About this item

Cal-Royal NESC2230 Passage Exit Device Escutcheon Lever Trim

PASSAGE  - Passage, always operable and free ANSI FUNCTION (14)

Grade 1, thrubolted design, rigid non-clutch, Non handed design.
Easily field reversible.
Hardened steel heavy duty tailpiece.  Available for fire
and non fire rated rim and vertical rod exit devices.

Door Thickness: Standard 1-3/4". For 2-1/4thick door use additional part# TAIL3.

Escutcheon dimensions: 2-3/4width X 8-3/4length. Lever length: 4-3/4". Fits and covers 2-1/8161 cutout

Resources

• https://www.cal-royal.com/files/2200_Accessories.pdf
