Cal-Royal NEWSH140 Full Mortise Standard Weight Spring Hinge, 4 1/2" x 4 1/2" - Template - Box Of 2

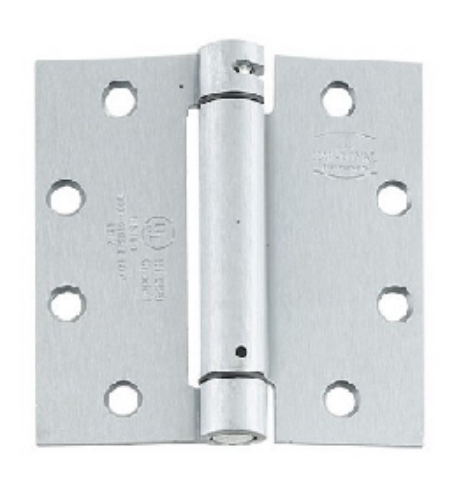

Spring hinges solve a specific problem: keeping a door closed automatically without a separate door closer mounted to the frame. On fire-rated door openings where code requires self-closing action and a traditional overhead closure isn't part of the hardware set, a UL Listed spring hinge is often the correct and most cost-effective solution. The Cal-Royal NEWSH140 is a 4-1/2" x 4-1/2" full mortise standard weight spring hinge, UL Listed for fire-rated door applications, ANSI templated, and sold in a box of two for standard commercial door installations.

Browse the complete range of commercial spring hinges to find related configurations, or view all commercial door hinges across every type we carry.

How the NEWSH140 Spring Hinge Works

The NEWSH140 is a single-acting spring hinge, meaning the spring mechanism automatically returns the door to the closed position after opening. The tension is field-adjustable using the tension adjustment pin built into the barrel. For a standard commercial door installation requiring self-closing action on a fire door, two spring hinges replace the top and bottom butt hinges, while a standard ball bearing hinge occupies the middle position. This three-hinge configuration (two NEWSH140 spring hinges and one ball bearing hinge such as the Cal-Royal BB31) is the typical spec for 3'0" x 7'0" wood or hollow metal doors in institutional applications.

Cal-Royal NEWSH140 Technical Specifications

Size: 4-1/2" x 4-1/2". Hinge type: full mortise, both leaves mortised. Knuckles: 3-knuckle. Weight class: standard weight. Gauge: 0.134". Corner: square corners. Material: wrought steel base. UL Listed: yes, fire rated. Finish: multiple ANSI/BHMA A156.18 finishes available. Template: ANSI A156.7 templated screw hole pattern. Included fasteners: machine screws and wood screws. Sold as: box of 2. Warranty: lifetime limited on commercial grade hinges. BHMA Certified.

ANSI compliance: A156.1 (Butts and Hinges), A156.7 (Template Hinge Dimensions), A156.17 (Self Closing Hinges and Pivots), A156.18 (Materials and Finishes).

UL Listed for Fire-Rated Door Openings

The NEWSH140 is UL Listed, which means it can be specified on fire-rated door assemblies where self-closing hardware is required by the fire code. On most fire-rated hollow metal door openings, the Authority Having Jurisdiction (AHJ) requires either an overhead closure or UL Listed self-closing hinges. The NEWSH140 satisfies that requirement. It's suitable for wood and hollow metal doors alike, making it a versatile spec for both retrofit and new construction projects.

Full Mortise Mounting Type

Full mortise means both leaves are recessed into the door edge and the frame. This is the standard mounting type for hollow metal doors in hollow metal frames and wood doors in wood frames. It provides the cleanest appearance, strongest mechanical attachment, and is the required mounting for virtually all commercial door specifications. The NEWSH140 is not a surface-applied or half-mortise design.

Standard Weight Application

Standard weight hinges are specified for doors receiving average frequency service on standard weight door construction. For heavy entrance doors, corridor doors, or openings receiving high-frequency daily use, a heavy weight spring hinge would be the correct upgrade. The NEWSH140 is the right call for interior office doors, classroom doors, storage room doors, and secondary egress doors with moderate use patterns.

Available Finishes and Ordering Options

The NEWSH140 is available in a full range of ANSI/BHMA A156.18 architectural finishes including US26D Satin Chrome, US32D Satin Stainless, US10B Oil Rubbed Bronze, US3 Bright Brass, US4 Satin Brass, and US1 Polished Brass. Stainless steel base material is available for high-corrosion environments. All hinges are stamped with the CRP logo. Logo-free versions are available by using the "UN" prefix before the part number when ordering. Brass base material is available using the "SB" prefix.

In stock and ships same day on qualifying orders. For installations also requiring ball bearing hinges alongside this spring hinge set, view our five-knuckle ball bearing hinges for compatible pairing options.
