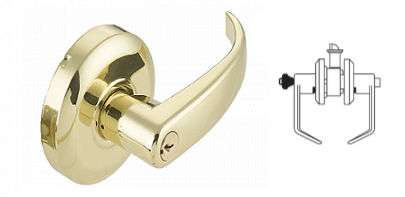

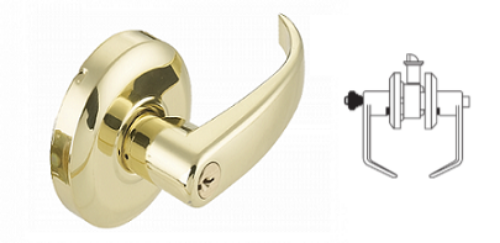

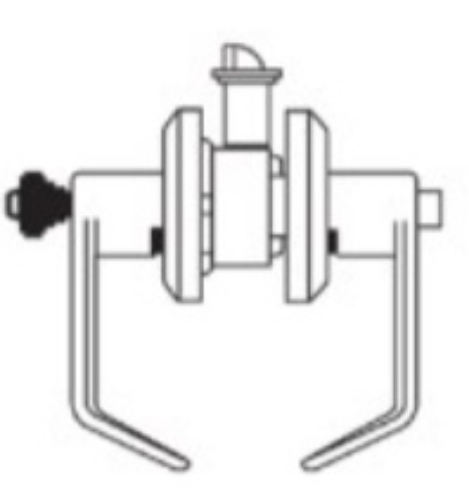

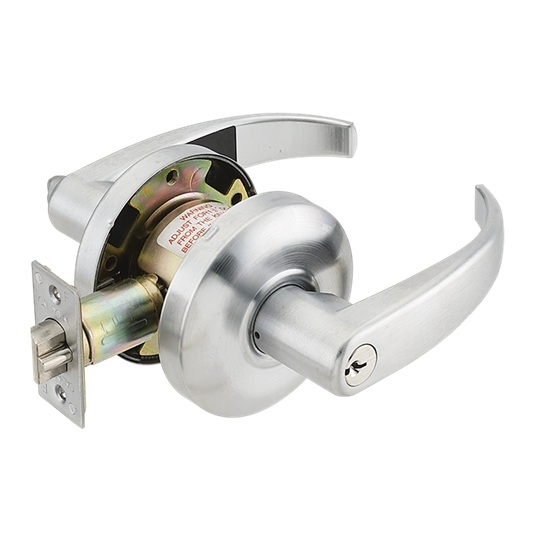

Cal-Royal RL01 Entrance Push Button Lock

Cal-Royal RL01 Entrance Push Button Lock -ANSI F82

Pushing button in inside knob locks outside knob. Turning inside knob or operating key in outside knob releases button automatically. Closing door does not release button. Button cannot be fixed in lock position, Inside knob always free. Latch bolt automatically deadlocks when door is closed.

ANSI:Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose. Keying - 6-pin "C" keyway cylinder, 2 keys per lock.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

Model:Cal-Royal RL01,Cal-Royal RL01US26D,Cal-Royal RL01US1,Cal-Royal RL01US,3Cal-Royal RL01US4,Cal-Royal RL01US10,Cal-Royal RL01US10BE,Cal-Royal RL01US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
