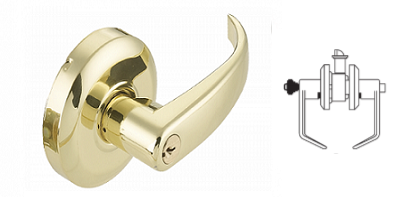

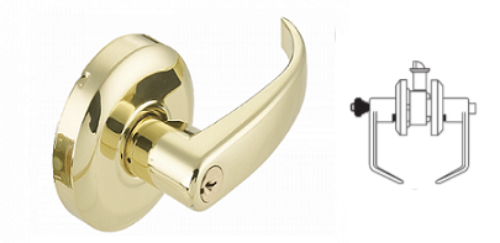

Cal-Royal RL101 Dormitory / Assisted Living Lock

Cal-Royal RL101 Dormitory / Assisted Living*Lock - *ANSI: F90

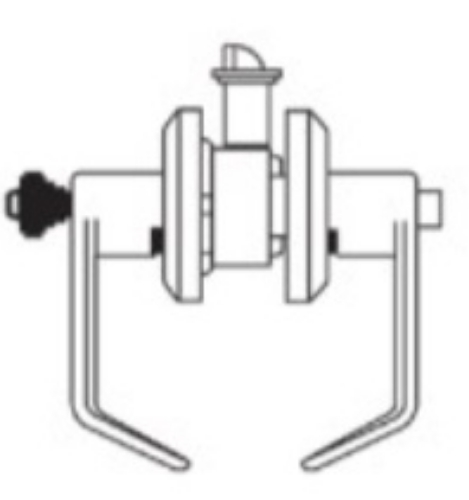

Deadlocking latch bolt operated by lever from either side except when outside lever is locked by key or by push button on inside lever. Key in outside lever locks or unlocks outside lever. Outside key releases push button when locked from inside. Rotating inside lever or closing the door releases push button. ANSI: Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose. Keying - 6-pin "C" keyway cylinder, 2 keys per lock.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

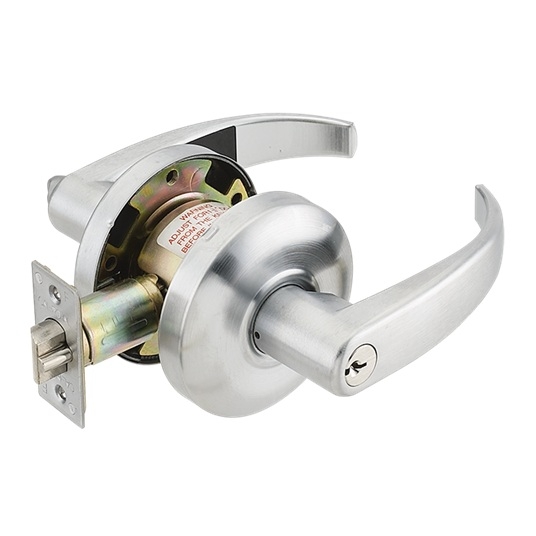

Model:Cal-Royal RL101,Cal-Royal RL101US26D,Cal-Royal RL101US1,Cal-Royal RL101US3,Cal-Royal RL101US4,Cal-Royal RL101US10,Cal-Royal RL101US10BE,Cal-Royal RL101US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
