Product Details

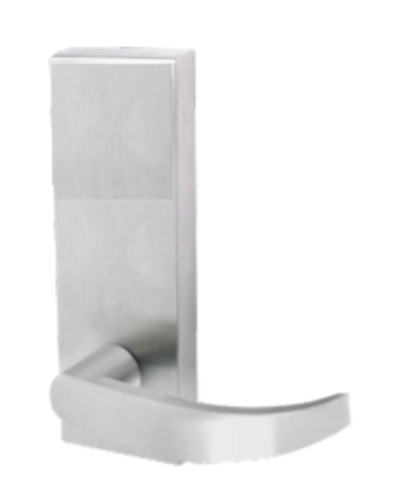

Cal-Royal RLESC3330 Passage Exit Device Escutcheon Lever Trim - Stainless Steel
Passage, always operable and free. ANSI FUNCTION (14)
Non-Ferrous Alloy Material
Clutch Mechanism
Double Heavy Duty Spring Support to prevent sagging and enhance operation
Grade 1, Thru-Bolted design. Non-Handed design.
Easily field reversible
Includes Adjustable Heavy Duty Steel Spindle.
Available for Fire and Non-Fire Rated Rim and Vertical Rod Exit Devices
Door Thickness:Standard 1 3/4" to 2 1/4". Use Adjustable Spindle for 1 3/4", 2, 2 1/4" door thickness.
Escutcheon dimensions:2 5/8" width x 8 1/16" length. Lever length: 4 5/8". Fits and covers 2 1/8" 161 cutout
Model: Cal-Royal RLESC3330,
