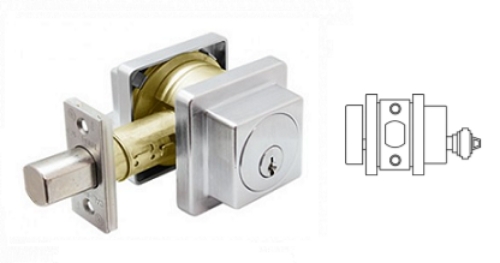

Cal-Royal SQ-220 Heavy duty Grade 2, Single cylinder deadbolt

Cal-Royal SQ-220*Heavy duty*Grade 2, Single cylinder deadbolt, UL listed - ANSI:E0152

Heavy Duty Single Cylinder Deadbolt:Deadbolt thrown or retracted by key from outside or by inside turn unit. Bolt automatically deadlocks when fully thrown.

Material- Wrought brass or Zinc

Door Ranges- Adjustable UL Listed 3 Hour Fire Rating 1 3/8" (35mm) to 1 3/4" (45mm) door thickness

Backset- Adjustable 2-3/8" or 2-3/4. UL Listed.

Strikes- 1-1/8" X 2-3/4" Square Corner. Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 2 pcs x 3" screws with wood frame reinforcer greatly strengthens door frames.

Keyway- 6 pin high security "C" keyway.

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Face Plate- Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations

Finishes:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US26 - Bright Chrome, US10 - Satin Bronze, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

Model:Cal-RoyalSQ300Series,SQ-220, SQ-220US26D, SQ-220US3, SQ-220US4, SQ-220US5, SQ-220US10, SQ-220US15, SQ-220US10B, SQ-220US26.
