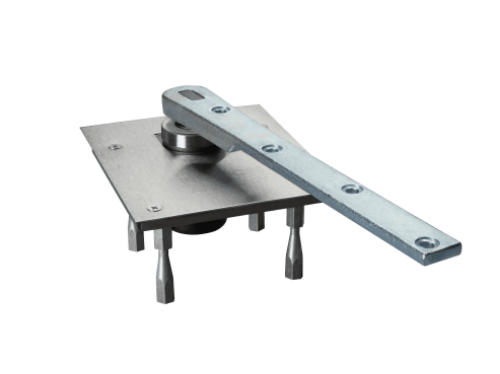

Norton Rixson 117-3/4 LTP 626 Center hung Less Top pivot ( 600 lbs.)

Norton Rixson *117-3/4 LTP 626 Center hung Less Top pivot- Satin Chrome( 600 lbs.)*

Application:

Exterior or Interior DoorsWeight to 600 lbs.Door Sizes up to 4'0"x 8'6"* (1219 x 2591mm)Non-handedCenter hung pivots are door hanging means only. To close doors, see floor closer sections.For doors taller than 8'6" use top pivot 345 in lieu of 340

Description/Features:

Bottom pivot is mortised into floorPivot point centered in thickness of doorDoor must have radius on pivot edgeHeavy-duty bearingsPivot features sealed bearings for protection against weather and debrisNot allowed for use on labeled doors and framesFurnished with wood and machine screws

Model:117-3/4-LTP-626, 117 3/4 LTP 626, 1173/4LTP626
