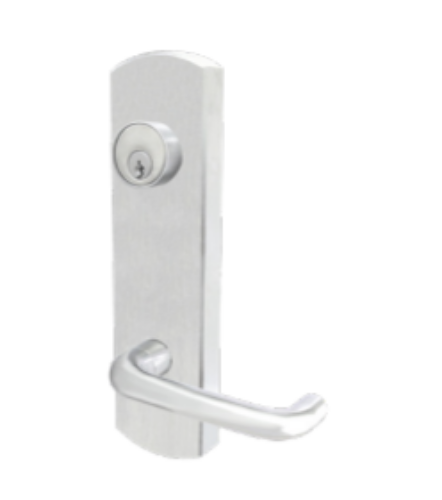

Cal-Royal TUBESC7700 Entrance Exit Device Escutcheon Lever Trim

Cal-Royal TUBESC7700 Entrance Exit Device Escutcheon Lever Trim

Rigid Entrance, key locks or unlocks escutcheon trim: ANSI function (08) Operates as classroom function

Rigid, non clutch mechanism. Double heavy duty spring support to prevent sagging and enhance operation. Grade 1, thru-bolted design. Non-handed design. Easily field reversible. Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.

Door Thickness: Standard 1-3/4". For 2-1/4thick door use additional part# TAIL3.

Escutcheon dimensions: 2-3/4" width X 10-1/4length. Lever length: 4-3/4". Fits and covers 2-1/8" 161 cutout

Keyway: 6 pin solid brassCkeyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow 1C, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa and Kaba High Security Cylinders.

(IC) INTERCHANGEABLE CORE: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(ICSC) INTERCHANGEABLE CORE: Indicates function available with Schlage Full size format Interchangeable Core.
