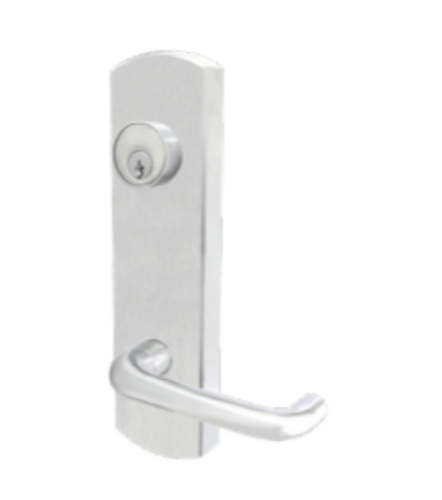

Cal-Royal TUBESC7705 Storeroom Exit Device Escutcheon Lever Trim

Cal-Royal TUBESC7705 Storeroom Exit Device Escutcheon Lever Trim

Rigid Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked ANSI function (09)

Rigid, non clutch mechanism. Double heavy duty spring support to prevent sagging and enhance operation. Grade 1, thru-bolted design. Non-handed design. Easily field reversible. Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.

Door Thickness:Standard 1-3/4". For 2-1/4" thick door use additional part# TAIL3.

Escutcheon dimensions:2-3/4" width X 10-1/4" length. Lever length: 4-3/4". Fits and covers 2-1/8 161 cutout

Keyway:6 pin solid brassCkeyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow 1C, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa and Kaba High Security Cylinders.

(IC) Interchangeable Core:Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(Icsc) Interchangeable Core:Indicates function available with Schlage Full size format Interchangeable Core.
