Product Details

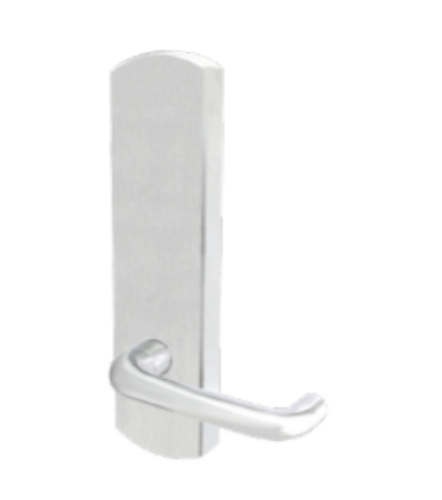

Cal-Royal TUBESC9830 Passage Exit Device Escutcheon Lever Trim
Trim always operable and free ANSI FUNCTION (14)
Rigid, non clutch mechanism.
Double heavy duty spring support to prevent sagging and enhance operation.
Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.
Door Thickness: Standard 1-3/4". For 2-1/4" thick door use additional part# TAIL3.
Escutcheon dimensions: 2-3/4" width X 10-1/4" length. Lever length: 4-3/4". Fits and covers 2-1/8 161 cutout
