Product Details
Camden CX-33 Advanced Logic Relay, 12-30 VDC/AC, Includes (4) Dry/(1) Wet/(3) Heavy Duty SPDT Relays, 1-50 Timer Options, 1-60 Adjustable Time Delay Options, Blue LED Display
DESCRIPTION

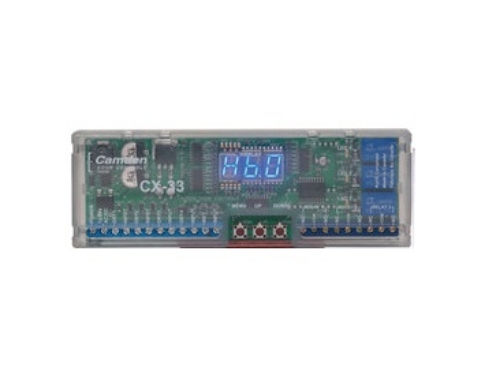

Camden Door Controls CX-33 Advanced Logic Relay is a 'state of the art' door controller designed for 'universal' operation in virtually any automatic door application. This compact unit is small enough to fit inside most door operator cases. It provides a large 3 segment LED and simple push buttons for the easiest programming, and supports illuminated signage in restroom applications. CX-33 is pre-programmed for interconnection with access control, fire alarm and telephone entry systems. CX-33 also leads the market with a range of exclusive operating features, including time duration in airlock applications and protection of automatic door operators when utilizing magnetic locks.
APPLICATION
The flexibility of the CX-33 lends itself to an incredible variety of locking and and/or automatic door applications, such as sequencing applications using 2 or 3 doors. Also included are modes required for safety sensor installations. What is unique in the CX-33 is being able to combine these functions simultaneously with a switching network (make/break relay).
Another application for the CX-33 is single occupant restrooms equipped with low energy operators. Our 3 relay design now includes a dedicated output for illuminated signage.
Other uses include smoke evac (fire door), 2-door timed or latching airlocks, and certain access control situations where an extended trigger input results in the lock retracting while enabling an exterior wall switch.
For apartment entry applications, a direct connection to the phone entry panel simplifies wiring, and eliminates the need for an isolating relay. This input unlocks the door, and energizes a vestibule convenience switch (if one is provided).
FEATURES
15 DIFFERENT OPERATING MODES, WITH SUB-MODES AND ADJUSTABLE TIMERS ON EACH RELAY, PROVIDE NEAR LIMITLESS APPLICATIONS.
5 INPUTS, INCLUDING A "WET" INPUT, FOR MORE FLEXIBILITY. YOU CAN EASILY SEQUENCE FROM MULTIPLE POINTS, AND MAINTAIN & HOLD DIFFERENT OUTPUTS.
NEW V3.2 FEATURES INCLUDE:
- LOCK DOWN MODE DELAYED RELAY.
- ACTIVATION.
- SELECTABLE N.O OR N.C. INPUTS.
LARGE 3 SEGMENT DISPLAY IS EASIER TO VIEW AND UNDERSTAND.
3 BUTTONS FOR MODE SELECTION, OFFER FASTER & EASIER PROGRAMMING.
"TRIED AND TRUE" POWER CIRCUITRY ENSURES OUTSTANDING FILTERING AND SURGE PROTECTION, COMBINED WITH SIMPLE 2 TERMINAL DESIGN.
3 HEAVY DUTY 3 AMP. FORM C OUTPUTS.
LED'S FOR VISUAL RELAY CONFIRMATION.
3 YEAR WARRANTY.

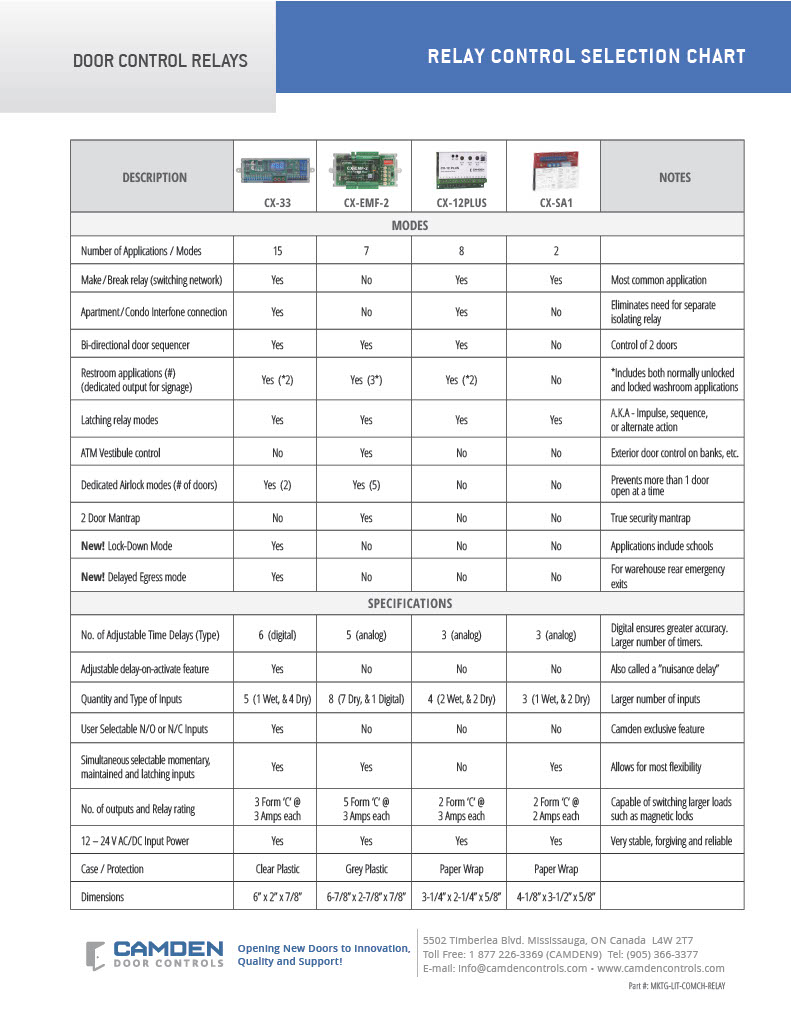

SPECIFICATIONS
MOUNTING:(2) #6 SCREWS OR VELCRO.
OPERATING VOLTAGE:12 TO 24 VOLTS AC/DC.
OPERATING TEMPERATURE:-22 F TO +185 F (-30 C TO + 85 C).
CURRENT DRAW:105 MA TYPICAL 320MA MAXIMUM.
RESPONSE TIME:.5 SECONDS.
DISPLAY:BLUE MULTI-SEGMENT LED.
PROGRAMMING:1 MENU, PLUS UP & DOWN BUTTONS.
INPUTS:4 X DRY.
1 X WET:MIN 4.5V/AC/DC.
RELAY OUTPUTS:(3) FORM 'C' (SPDT).
CONTACT RATING:3 AMPS @ 24VDC.
TIME DELAYS:
HOLD 1 TIMER: 0 - 50 SECONDS.
DELAY 1 TIMER: 0 - 15 SECONDS.
HOLD 2 TIMER: 0 - 50 SECONDS.
DELAY 2 TIMER: 0 - 60 SECONDS.
HOLD 3 TIMER: 0 - 50 SECONDS.
DELAY ON ACTIVATE: 0 - 10 SECONDS.
DIMENSIONS:6"W x 2"H x 7/8"D (152mm x 51mm x 22mm).
