Camden CX-ED1079 Grade 1 'Universal' Gr. 1 Electric Strike - Standard Depth

Camden CX-ED1079*'Universal' *Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 AC/DC, Satin Stainless Steel - Standard Depth, For 3/4" Latch Projection

Camden CX-ED1079D Series: Standard depth, for 3/4" latch projection, 'Universal' grade 1 ANSI strikes offer 'universal' performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment. FEATURES

• COMPATIBLE WITH CENTERLINE CYLINDRICAL AND MORTISE LOCKSETS.
• CX-ED1079: SHALLOW DEPTH, 1/2"-5/8"(13mm - 16mm).
• CX-ED1079L: AS ABOVE, WITH LATCH MONITORING.
• CX-ED1079D: EXTENDED DEPTH, 5/8"-3/4"(16mm - 19mm).
• CX-ED1079DL: AS ABOVE, WITH LATCH MONITORING.
• FIELD SELECTABLE FAIL SECURE/FAIL SAFE.
• DUAL VOLTAGE 12/24V, AC OR DC.
• ADJUSTABLE STRIKE BODY.

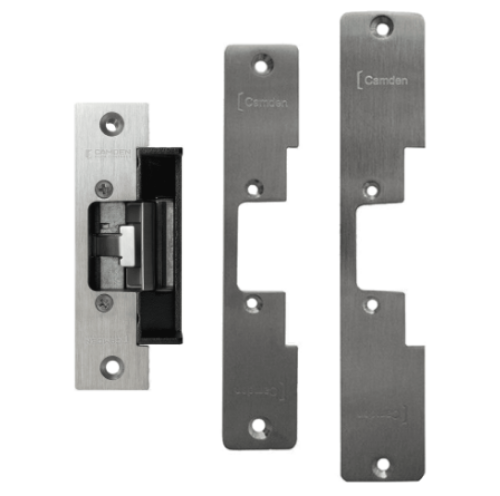

• 3 STAINLESS STEEL FACEPLATES PROVIDED:    ANSI SQUARE - 4 7/8" x 1 1/4" (123mm x 32mm).    HOLLOW METAL DOOR - 6 7/8" x 1 1/4" (173mm x 32mm).    WOOD DOOR - 7 7/8" x 1 3/8" (200mm x 36mm).
• CONTINUOUS DUTY OPERATION.
• NON-HANDED.
• EASY FIT CONNECTORS FOR POWER & MONITORING WIRES.
• TRIM PLATE PROVIDED.
• 5 YEAR WARRANTY.

SPECIFICATIONS:

VOLTAGE:12/24V AC/DC CURRENT DRAW: 260mA@12VDC,150mA@24VDC. STATIC HOLD FORCE:1,500 LBS. DYNAMIC STRENGTH:70 FT-LBS. ENDURANCE:1,000,000 CYCLES (FACTORY TESTED) 250,000 CYCLES (UL VERIFIED). MODE:FIELD SELECTABLE. FAIL SAFE/FAIL SECURE. MECHANICAL ADJUSTMENT:STRIKE BODY. OPERATION:AC - BUZZ, DC - SILENT. LATCH MONITOR:LATCH BOLT. DUTY:CONTINUOUS. DIMENSIONS (BODY): CX-ED1079: 3 3/8"L x 1 3/4"W x 1 7/32"D (86mm x 44mm x 31mm). CX-ED1079D: 3 3/8"L x 1 3/4"W x 1 3/8"D (86mm x 44mm x 35mm).
