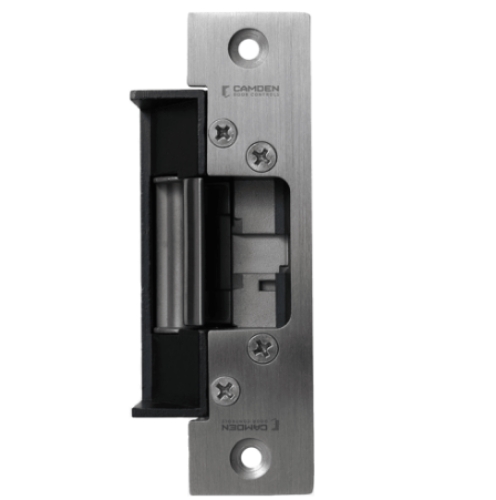

Camden CX-ED1410 Grade 1 'Universal' Gr.1 ANSI Fire Electric Strike

Camden CX-ED1410 Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 AC/DC, Satin Stainless SteelCX-ED1410:

'Universal' Grade 1 ANSI Fire Rated Electric Strike.

Note: Fire rating applicable only while in fail secure mode.

FEATURES

• BHMA Grade 1 ANSI Strike.

• UL/ULC 90 minute fire rated and UL 1034 Burglary and UL 294 Security listed.

• 5/8" to 3/4" latch projection.

• Selectable 12/24V, AC/DC.

• Selectable fail safe/fail secure (fire rating voided in fail safe mode).

• Continuous duty operation.

• Non-handed.

• 5 year warranty.

SPECIFICATIONS

Voltage: 12 or 24V AC/DC.

Current Draw:  260 mA @ 12 VDC. - 150 mA @ 24 VDC.

Static Strength: 1,500 Lbs.

Dynamic Strength: 70 Ft-Lbs.

Endurance: 1,000,000 cycles (factory tested), 250,00 cycles (UL verified).

Mode: Selectable fail safe/fail secure.

Operation:  AC - Buzz, DC - Silent.

Duty: Continuous.

Dimensions: 3-3/8"H x 1-7/8"W x 1-3/8"D (86mm x 47mm x 35mm).
