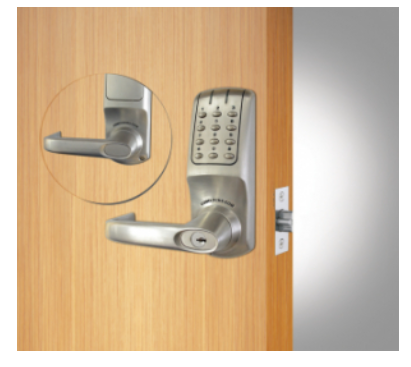

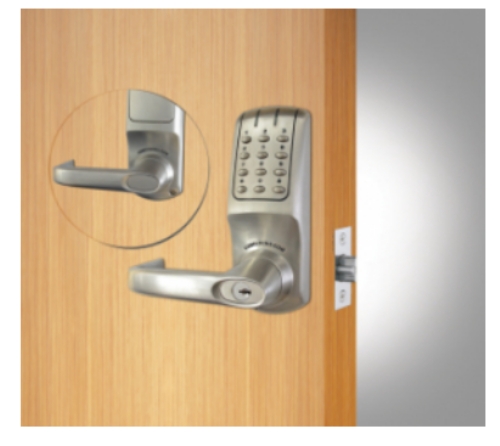

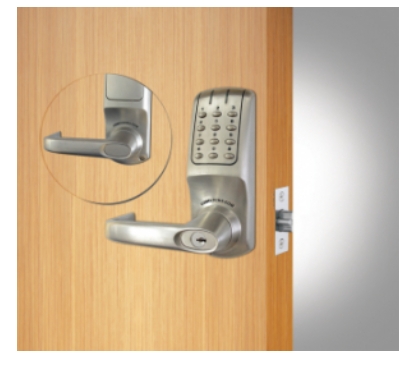

Codelocks CL5210 electronic Keypad Lever Lock

**Codelocks CL5210 lock

 Allows up to 80 User Codes 4, 5 or 6 digits longOn door programming via Master (programming) CodesAllows up to 10 One-Time User Codes to be enteredLocked/ unlocked, LED indicator optionPVD weather resistant, low maintenance finishOver 200,000 operations from 4 x AA cells (supplied)Tamper time out and low battery warningConnections for remote release by reception desk button, and alarm release includedPassage mode option entry mechanically by key or electronically from the keypadTechnical InformationDoor thickness:1 3/8"-2 3/8" (inches)Door material:Suitable for wooden doorsSpindle type:5/16" (inches) spring loaded spindleBody material:Zinc alloyNon handed:Lock will fit doors hung on the left or rightBatteries:4 x AA Cells (supplied)

The CL5210 CL 5000 Series is a heavy duty electronic tubular deadlatch.External doors - low / medium / high traffic Internal doors - low / medium / high traffic Mortice LatchLever handle lock for doors hung on the left or rightUse in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the homeAvailable in Stainless Steel, Polished BrassAlso available as Back to Back (CL5210BB) Provides coded access in both directionsThe outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the deadlatch. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Passage mode so that anyone can open the door without using a code. Passage Mode can also be programmed at the keypad using the Master Code.

The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long. Programming is via the keypad, using the Master Code.

The lock has fitted as standard two alarm release terminals.

REM1 is used to open the lock from a reception desk button or answer phone.REM2 can be linked to an alarm system which, when activated by a momentary contact, will release the door for 30 minutes. This allows emergency personnel to enter the room to rapidly check that no one has been overlooked. Lock comes with a standard 2 3/4" deadlatch.

Optional 2 3/8" Deadlatch available

Model: codelocks, code locks, codelock, code lock, CL5210-SS, CL5210 SS, CL5210SS, CL5210-PB, CL5210 PB, CL5210PB, CL5210-DB, CL5210 DB, CL5210DB, CL5000 Series, 5000 Series Dark bronze, Flat Black
