Command Access CDL-AL-EXT Concealed Door Loop, Press Fit, No Wires, Extended Length One Side, Aluminum

Command Access CDL-AL-EXT Concealed Door Loop, Press Fit, No Wires, Extended Length One Side, Aluminum

Product Details

Command Access CDL-AL-EXT Concealed Door Loop, Press Fit, No Wires, Extended Length One Side, Aluminum** - Offset Pivot Applications (3/4" only)- Easy Installation- Supports up to 105 degree swing- 3-Year Warranty

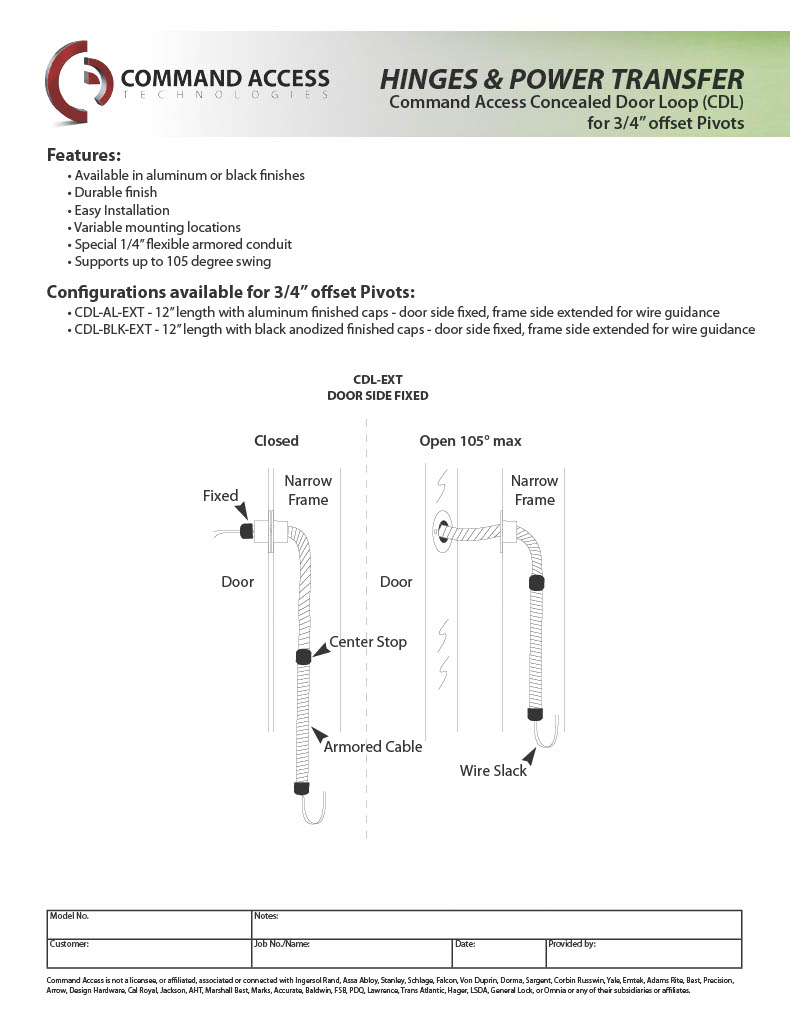

Features:Configurations available for 3/4" offset Pivots:- Available in aluminum or black finishes- Durable finish- Easy Installation- Variable mounting locations- Special 1/4" flexible armored conduit- Supports up to 105 degree swing- CDL-AL-EXT - 12" length with aluminum finished caps - door side fixed, frame side extended for wire guidance- CDL-BLK-EXT - 12" length with black anodized finished caps - door side fixed, frame side extended for wire guidance

Command Access CDL-AL-EXT Concealed Door Loop, Press Fit, No Wires, Extended Length One Side, Aluminum

Name: Command Access CDL-AL-EXT Concealed Door Loop, Press Fit, No Wires, Extended Length One Side, Aluminum
SKU: CDL-AL-EXT
Price: 45.50 USD
Availability: InStock

SKU: CDL-AL-EXT

In Stock

Chat

$45.50

About this item

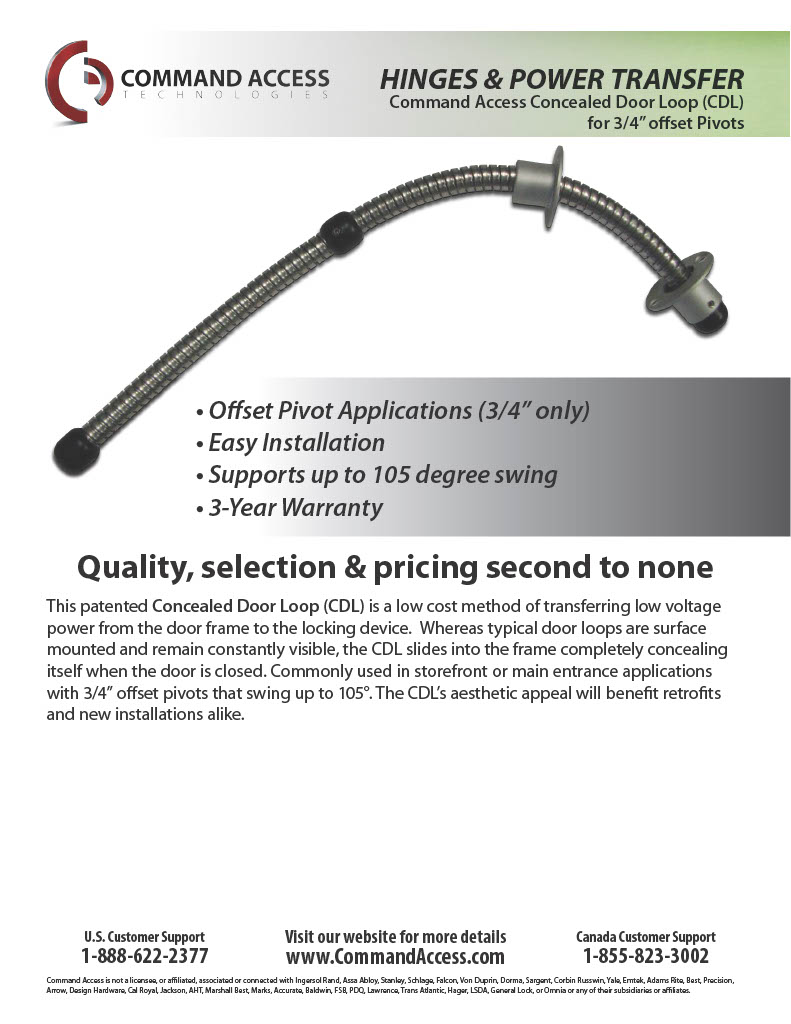

This patented Concealed Door Loop (CDL) is a low cost method of transferring low voltage power from the door frame to the locking device. Whereas typical door loops are surface mounted and remain constantly visible, the CDL slides into the frame completely concealing itself when the door is closed. Commonly used in storefront or main entrance applications with 3/4" offset pivots that swing up to 105. The CDL?s aesthetic appeal will benefit retrofits and new installations alike.
