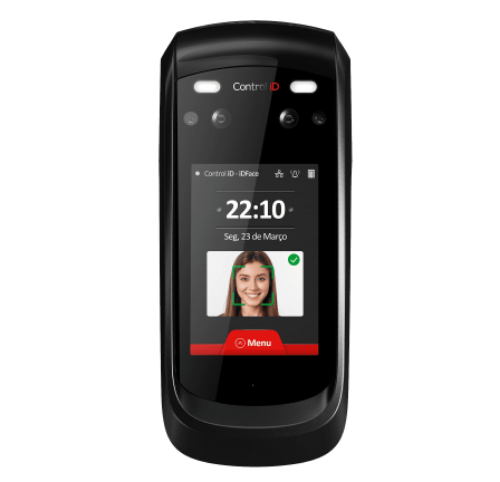

Control iD IDFACE PRO Facial Identification Access Controller

Control iD IDFACE Facial Identification Access Controller, Up to 10,000 Faces, IP65 Protection, Proximity Card/Password/QR Code Identification Methods, 3-1/2" Touchscreen Display, *Integrated SIP Intercom* **iDFace high quality algorithm enables face liveness detection, authentication of users wearing a mask and identification of up to 10,000 faces (1: N).iDFace has an integrated TCP/IP and USB connectivity.The device also features a 3.5" touchscreen display and an embedded web software that makes it easy to manage access rules and generate reports.

Identification of up to 10,000 faces with face liveness detection3.5" touchscreen displayIntegrated SIP IntercomTCP/IP and USB connectivityCustomized access rules according to groups and schedulesIP65 ingress protection level

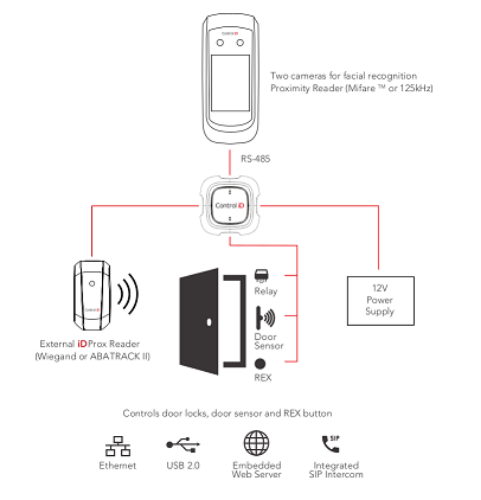

Access Control: *Number of UsersMore than 200,000 registered usersNumber of FacesUp to 3,000 faces with face liveness detectionAccess rulesAccess rules according to schedules and departmentsDoor control1 door with REX button and door sensor inputsRelay Output1 relay rated up to 220VAC / 5AWiegand Input1 native portWiegand Output*1 native port

Communication:*Ethernet1 native 10/100Mbps Ethernet portUSB1 USB 2.0 Host PortRS-4851 RS-485 port for communication between the external access control module and terminalWi-FiIntegrated Wi-Fi connectivity (optional)GPRS*Optional GPRS module

Identification Methods:*Facial IdentificationTwo 1080p Full HD cameras (visible light and infrared light)Proximity Cards (optional)MIFARE or 125kHz ASK or HIDPasswordUser identification through PIN and passwordQR Code*User identification through QR Code

User Interface:*LCD Touchscreen3.5" TFT Color LCD Display (320x480) with Capacitive TouchscreenIntegrated Web Software*Complete access control management from your browser

User Interface:*LCD Touchscreen3.5" TFT Color LCD Display (320x480) with Capacitive TouchscreenIntegrated Web SoftwareComplete access control management from your browser *AudioBuilt-in speaker and microphone

General Characteristics:*General dimensions76.7 mm x 54.5 mm x 174 mm (W x D x H) - Terminal52mm x 52mm x 22mm (W x D x H) - External Access Control ModuleEquipment weight240g - Terminal35g - External Access Control ModulePower inputExternal 12V sourceIngress Protection level*AudioBuilt-in speaker and microphone
