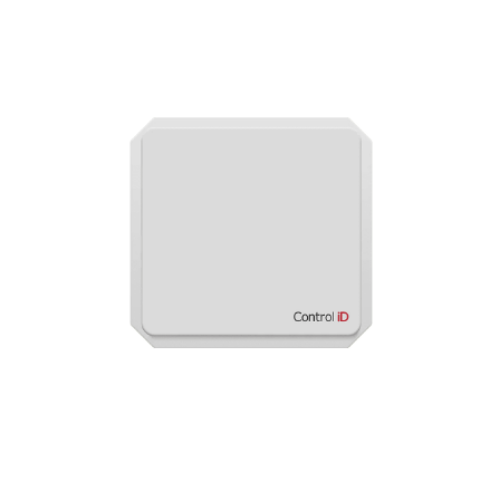

Control iD IDUHF LITE Access Controller, Long Range UHF Tag Reader (Compact Model) - 35-40 Feet

Control iD brings to the market an equipment with IP65 protection, ideal for monitoring and controlling vehicle access in corporate and residential condominiums. With reduced size and an integrated UHF reader with a range of up to 12 meters, the iDUHF Lite operates as an independent device that provides both the reading and authentication of vehicle tags, as well as the control of the external motor drive board. Its storage capacity is up to 200,000 users and, through the embedded web software, it is possible to configure the product, customize access rules and generate specific reports in a simple and intuitive way. Reading and authentication of tags on the deviceAccess rules and customizable reportsStores up to 200,000 usersIP65 ProtectionControls motor drive boardEmbedded software and TCP/IPReading distance up to 35-40 feet

**Access Control:

**Number of UsersMore than 200,000 registered usersAccess RulesAccess rules according to schedules and departmentsAccess RecordsCapacity for over 200,000 records

Communication:*Ethernet1 native 10/100Mbps Ethernet portRS-4851 native RS-485 port with 120 Ohm terminationRS-2321 native RS-232 portOutput Relay1 relay up to 30VAC / 5AWiegand Output1 native outputAdditional InputsTrigger and Door Sensor Inputs * *Identification Methods:*UHF ReaderReading distance up to 12m, depending on the tag used and the antenna installation conditions

User Interface:*Integrated Web Software*Complete access control management from your browser

General Characteristics:*General Dimensions275 mm x 275 mm x 70 mm (W x H x D) - Antena52 mm x 52 mm x 22 mm (W x H x D) - External Drive ModuleEquipment Weight1280g - Antena35g - External Access Control ModulePower InputExternal 12V power supply (not included)Total Consumption3,5W (300mA) ratedHorizontal Capture Angle*30 degrees for each side
