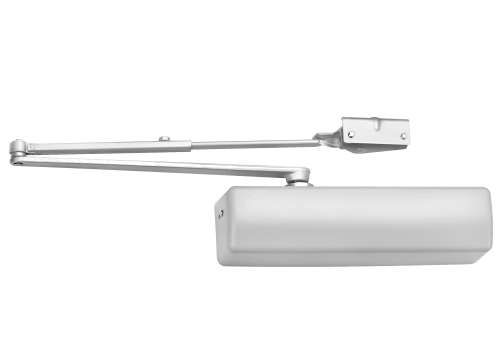

Corbin Russwin DC6210 689 M54, H.D. Closer, Multi-sized - Aluminum Painted

Corbin Russwin DC6210 689 M54, H.D. Closer, Multi-sized - Aluminum Painted

Universal Quick-Install mounting bracket standard.

Reduces installation time Ensures correct mounting

Bracket is first mounted to door or frame, then closer is attached

Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)

Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

Features

Spring Power: DC6200 closers: multi-sized; fully adjustable sizes 1 through 6.

Valves

Latching speed valve standard.

Closing speed valve standard.

Multiple backcheck location valve and backcheck intensity valve standard.

Delayed action valve optional. Delayed action preset for 20 seconds. Between 90 and 70 for all mountings. To order specify M71.

Degree of Opening: Up to full 180 opening standard forregular, top jamb and parallel arm mountings, conditions permitting.

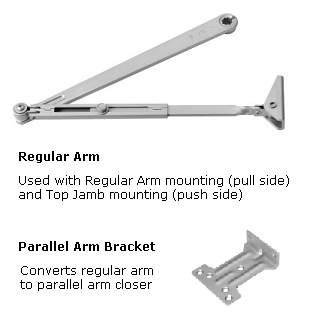

Power Adjustment Arm Bracket: 15% adjustment standard.

Cover: Standard: plastic V-O flame rated cover.

Mountings: Tri-packed DC6200 comes with screws, brackets and soffit plates to allow for regular, top jamb and parallel arm installations.

Fasteners: Standard: self-drilling screws, sex nuts and bolts (SNBs)

Warranty: Ten-year limited warranty.

Body: Cast iron case with seamless cold-headed steel spring tube.

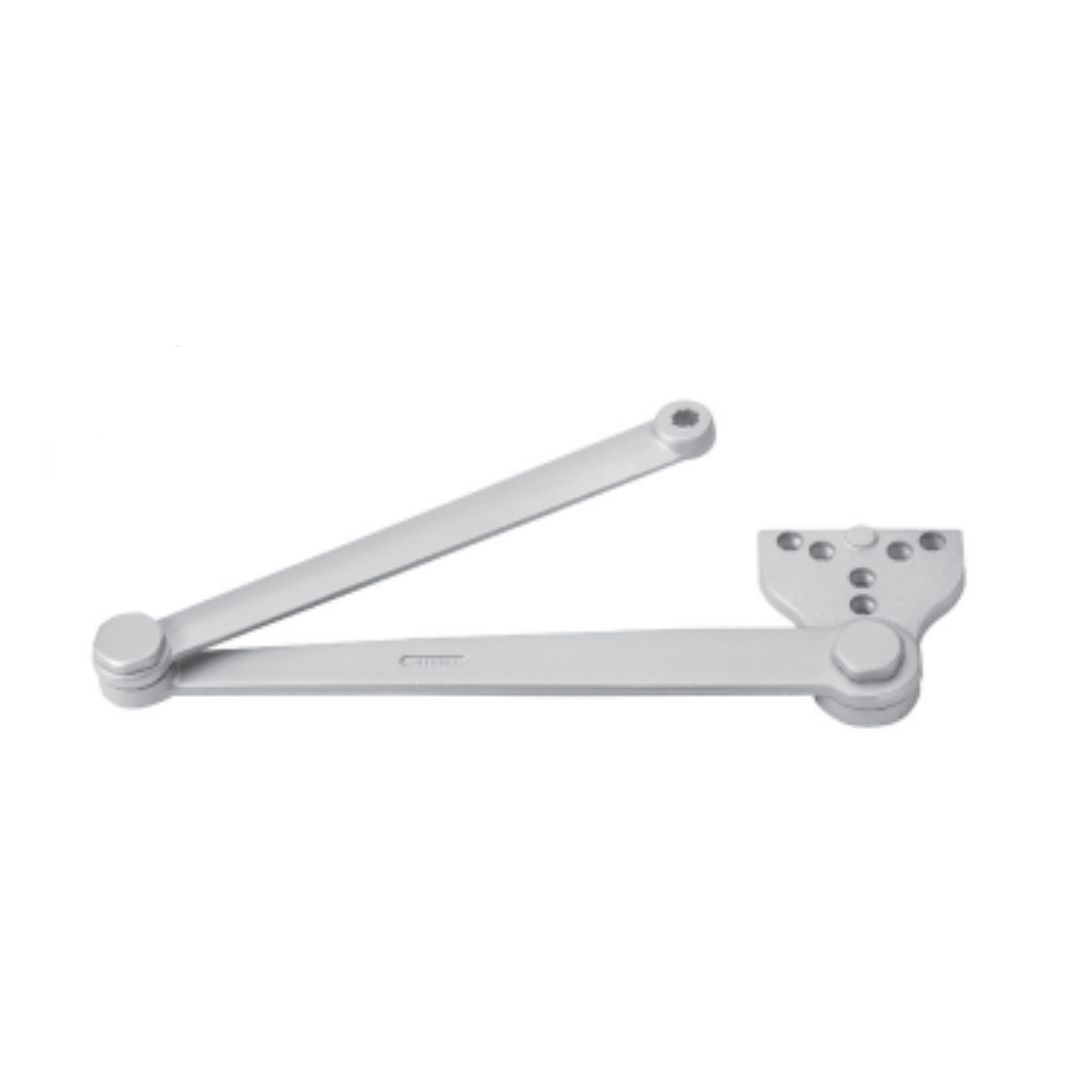

Arm: Standard: forged steel.

Spindle: Cold-headed heat-treated steel.

Piston: 1-3/8" diameter; Precision machined, heattreated steel.

Springs: Chrome silicon wire.

Seals: "O" rings.

Fluid: Standard high lubricity extreme temperature hydraulic fluid.

Certification/Compliance

Barrier-Free Code Compliance: The DC3000 Series Door Closers listed below conform to the 5 lbf. maximum door opening force requirement for non-fire-rated interior hinged doors, according to:

Americans with Disabilities Act (ADA): Complies with the Accessibility Guidelines for Buildings and Facilities, Section 4.13.11.

ANSI/BHMA Certified: A156.4, Grade 1. A117.1.

UL / ULC / UL10C: Listed for fire and cycle requirements.
