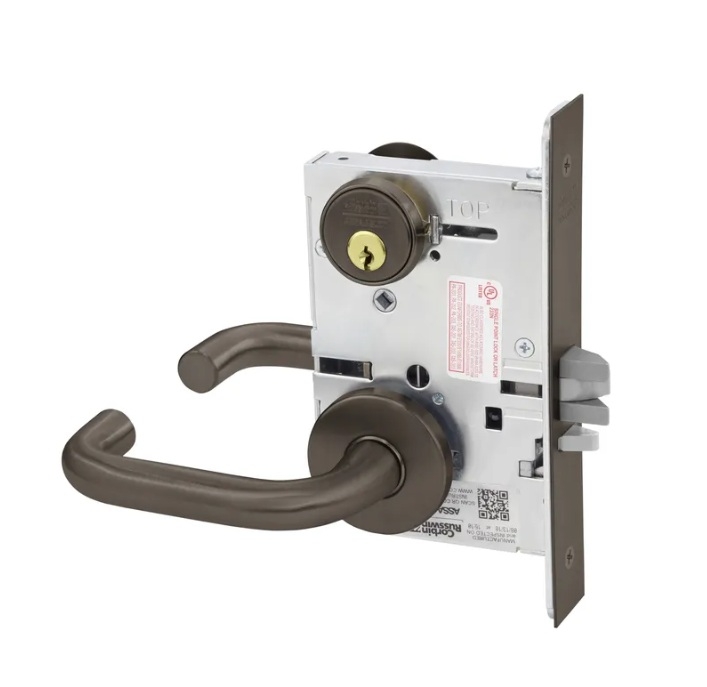

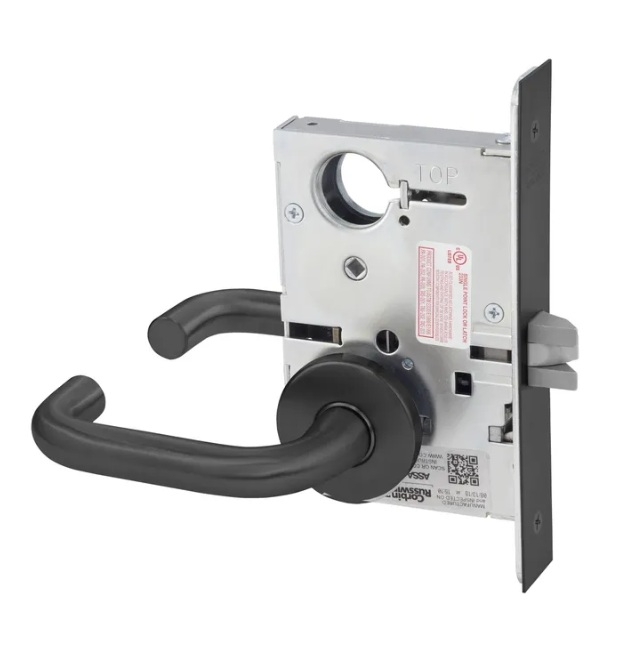

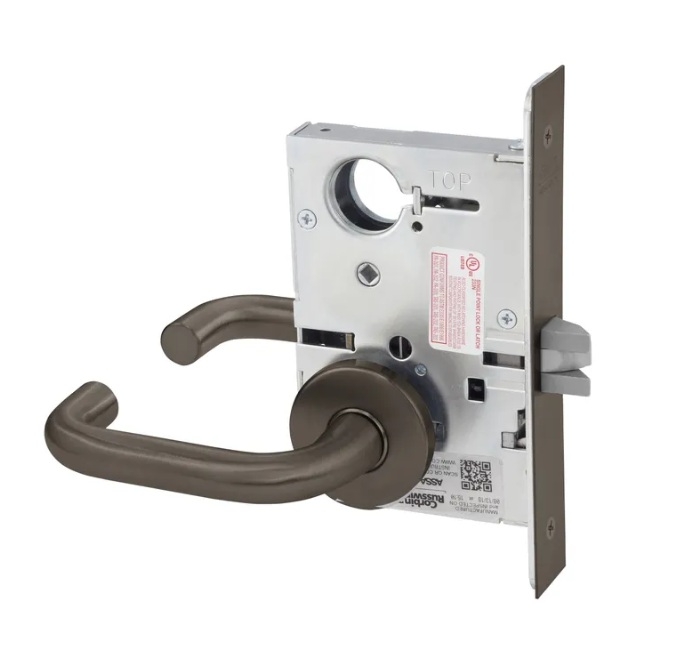

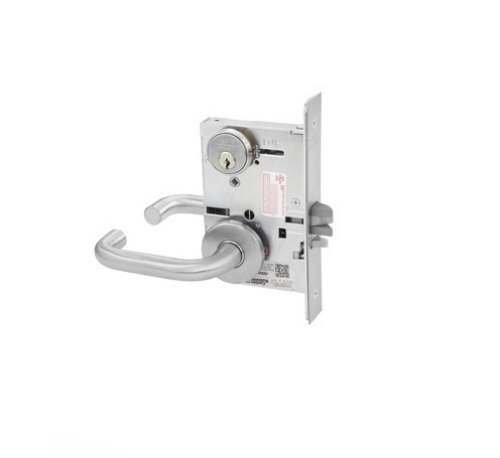

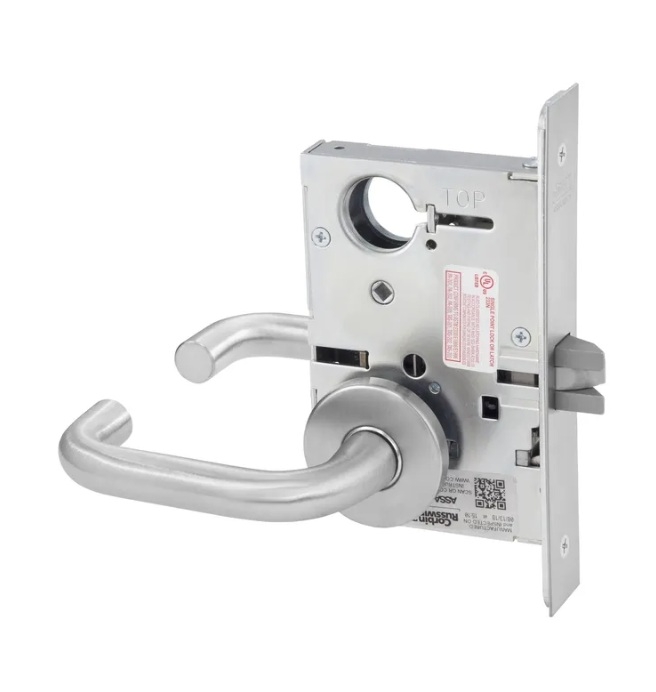

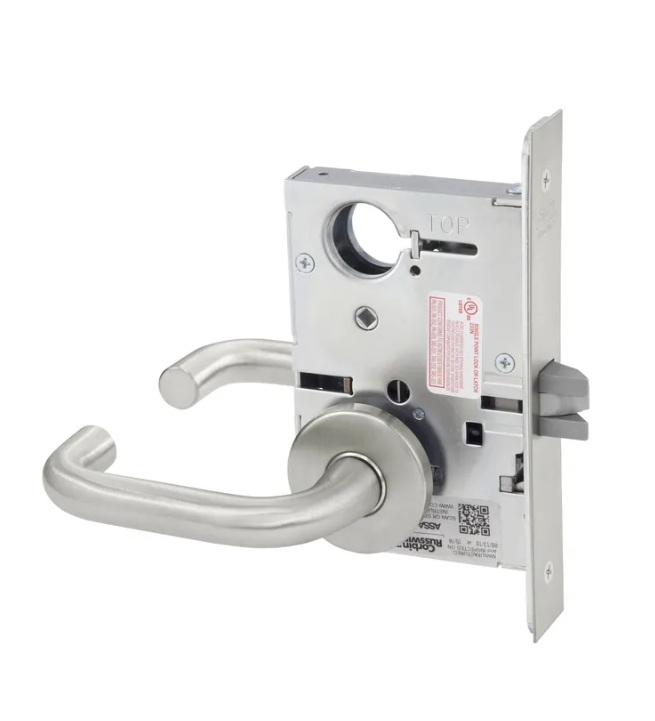

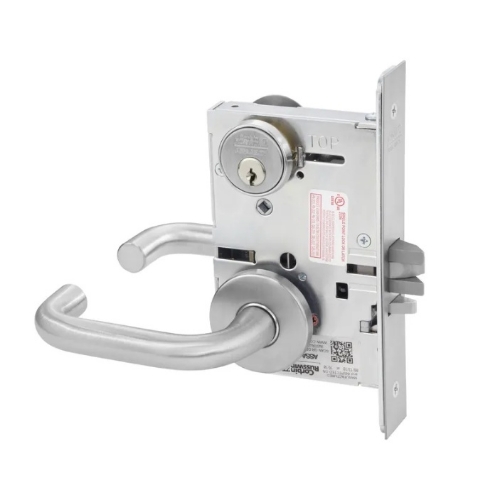

Corbin Russwin ML2002 LWA Grade 1 Classroom Intruder Mortise Lock, Lustra (Wrought) Lever, A Rose

Corbin Russwin ML2002-LWA Mortise Classroom Intruder Lock

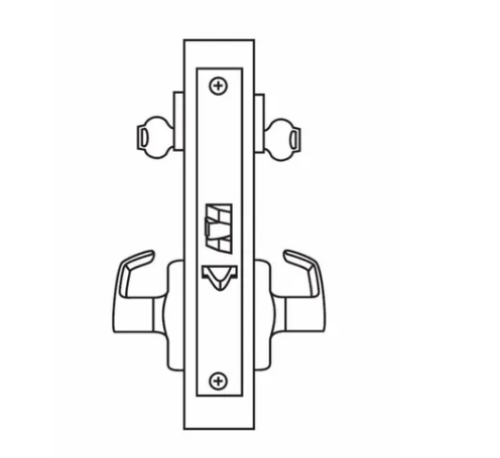

ML2002 - Classroom Intruder

• Latchbolt by grip either side, unless outside grip is locked by key either side.
• Outside grip locked or unlocked by cylinder either side.
• Auxiliary latch deadlocks latchbolt.
• Inside grip always free.

Handing:Quick reversible. The lockset can be re-handed without disassembling the lock case

*Door Thickness:*1-3/4" (44mm) standard.

*Backset:*2-3/4" (70mm).

*Lockcase:*Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

*Armored Front:*Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt:2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

*Auxiliary Latchbolt:*9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

*Deadbolt:*One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

*Hub*Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

*Spacing*C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

*Strike:*Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder:Brass, 6-pin, L4 keyway standard. Optional cylinders available, 7-pin cylinder, Interchangeable core (IC)

Keys:Two nickel silver standard.

*Keying Features Available:*Master keying, Construction master keying

Warranty:Ten-year limited.

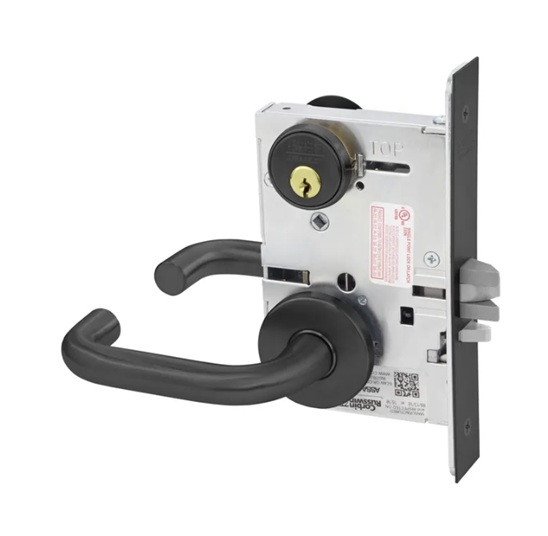

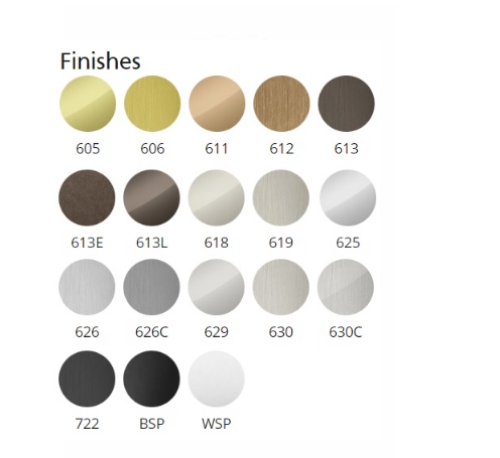

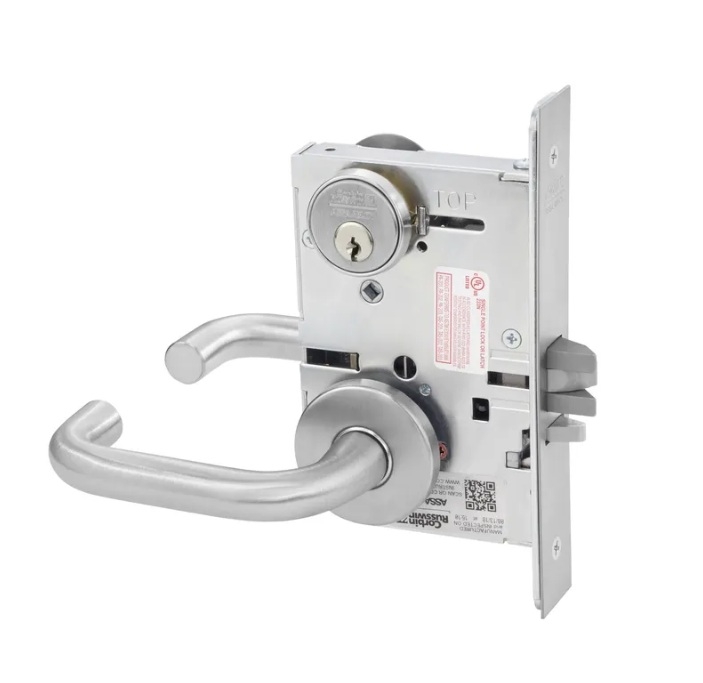

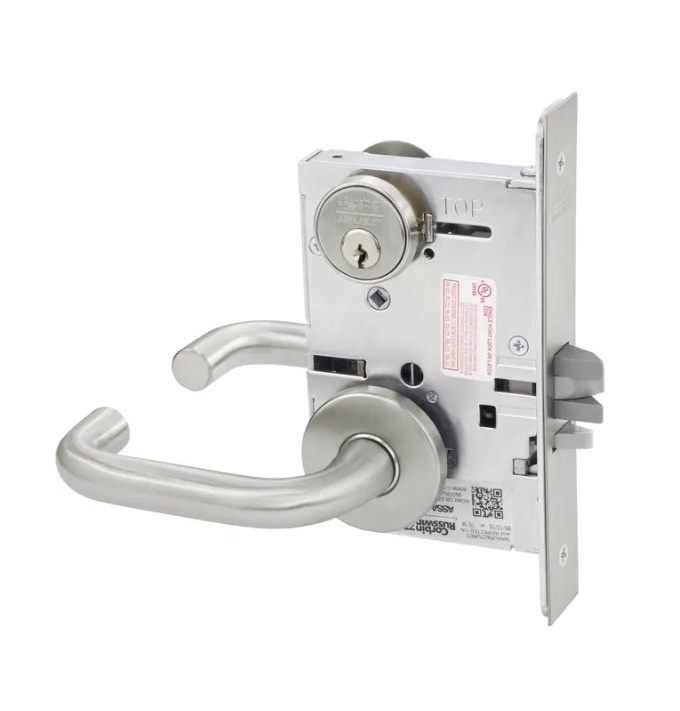

Model: Corbin Russwin ML2002LWA, ML2002LWA605, ML2002LWA606, ML2002LWA612, ML2002LWA613, ML2002LWA625, ML2002LWA626, ML2002LWA630, ML2002LWA722, Corbin Russwin ML2002, ML2002LWA Corbin Russwin, Corbin Russwin  ML2002LWA605, Corbin Russwin ML2002LWA606, Corbin Russwin ML2002LWA612, Corbin Russwin ML2002LWA613, Corbin Russwin ML2002LWA625, Corbin Russwin ML2002LWA626, Corbin Russwin ML2002LWA630, Corbin Russwin ML2002LWA722, Corbin Russwin ML2002, ML2002LWA Corbin Russwin, ML2002LWA605 Corbin Russwin, ML2002LWA606 Corbin Russwin, ML2002LWA612 Corbin Russwin, ML2002LWA613 Corbin Russwin, ML2002LWA625 Corbin Russwin, ML2002LWA626 Corbin Russwin, ML2002LWA630 Corbin Russwin, ML2002LWA722 Corbin Russwin

Certification/Compliance*ANSI:*Meets A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

*Federal:*Meets FF-H-106C.

*UL /ULC-UL10C Positive Pressure:*All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

*California State Reference Code:*(Formerly Title 19, California State Fire Marshal Standard)All levers with returns, return to within 1/2" (13mm) of door face.
