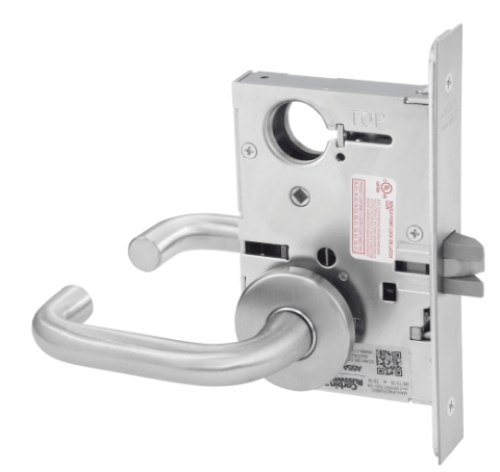

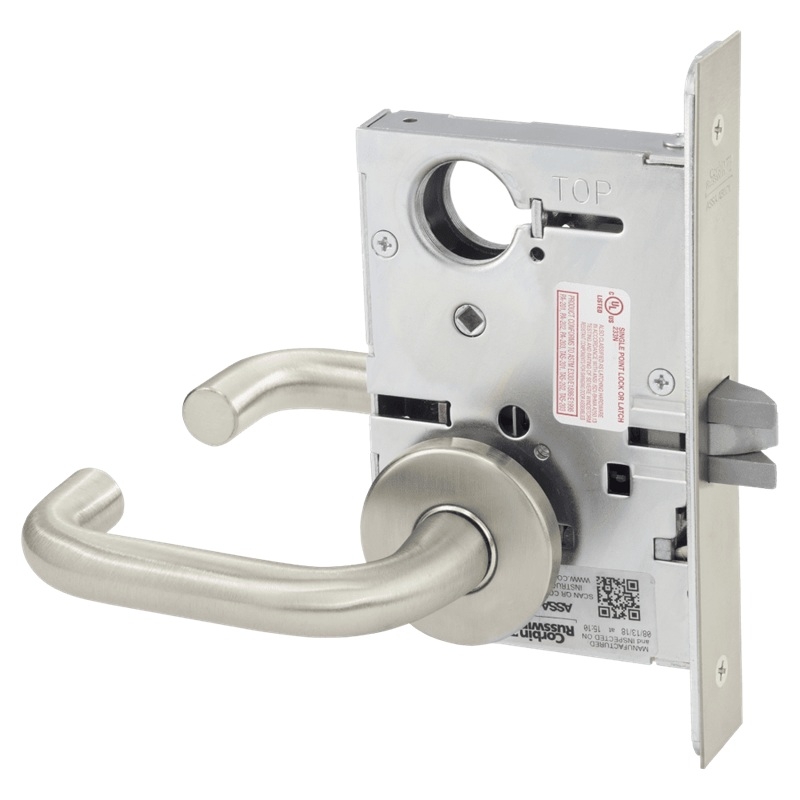

Corbin Russwin ML2010 LWA Passage or Closet Mortise Lock, LW Lever, A Rose

The ML2000 Series is the premium commercial mortise lock line from Corbin Russwin, built to ANSI/BHMA A156.13 Series 1000 Grade 1. It exceeds Grade 1 requirements for both operational and security testing and is UL Listed for use on fire doors up to and including 3-hour rated assemblies, with UL10C positive pressure compliance. For the complete ML2000 Series function lineup, browse Corbin Russwin ML2000 Series or view all commercial mortise locks across every brand.

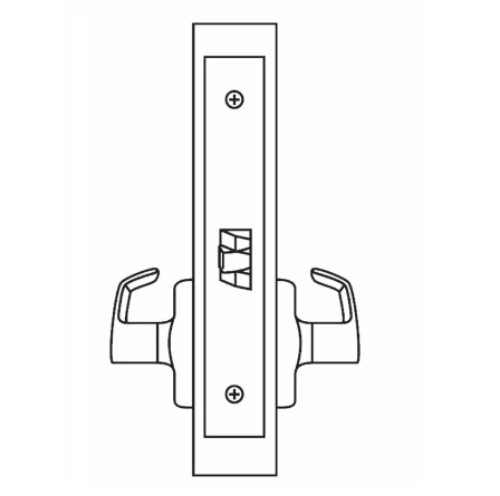

ML2010 Function: ANSI F01 Passage or Closet

ANSI Function F01 means both levers operate freely from both sides at all times. There is no locked state, no key cylinder, no push button. The latch bolt is the only mechanical element in operation, and it retracts whenever either lever is turned. This is the specification for doors that need to latch shut without any security requirement: interior hallways, conference rooms, break rooms, supply areas, and mechanical rooms where occupancy control is not needed. If any form of locking is required on the opening, the ML2010 passage function is not the correct specification.

Why Specify ML2000 Series Over a Grade 2 Cylindrical Lock for Passage

On a passage-only opening, a Grade 2 cylindrical lever is less expensive. The ML2010 gets specified when the rest of the door schedule runs ML2000 mortise locks and consistency in lock body, trim style, and finish across a building matters to the specifier. A single mortise lock prep serves every function in the ML2000 lineup. If a passage door later needs to be upgraded to an entrance, classroom, or storeroom function, the lock body stays in the door and only the function change is made. That flexibility is the operational argument for specifying a mortise lock on a passage opening rather than mixing cylindrical and mortise hardware across a building.

Corbin Russwin ML2010 LWA Technical Specifications

Series: ML2000. ANSI function: F01, Passage or Closet. ANSI/BHMA standard: A156.13, Series 1000, Grade 1. UL Listed: yes, UL10C compliant, fire doors up to 3-hour rating. ULC Listed: yes. ADA Compliant: yes. Florida Building Code Windstorm Certified: yes. ASTM E330 Certified: yes. CAL FIRE approved: 3775-1305:0130. Lever: Lustra (LW). Rose: A round rose. Handing: field reversible. Latchbolt throw: 3/4". Backset: standard 2-3/4" (minimum 2-3/8"). Door thickness: standard 1-3/4" (range 1-3/8" to 4"). Door types: wood, hollow metal, bullet-resistant doors. Strike: ANSI straight lip standard. Cylinder: none in passage function. Multi-function lockbody: yes, the same lockbody accepts all 63 ML2000 functions. Warranty: 10-year limited.

Patented Quick Reversible Latchbolt

One of the most practical features on the ML2000 is the patented Quick Reversible latchbolt. Handling can be reversed in the field without disassembling the lock case. On a passage door, this matters during installation if the door swing changes or the hardware is moved to a different opening. No tools are required beyond what's already on site.

LW Lever and A Rose: Understanding the Designation

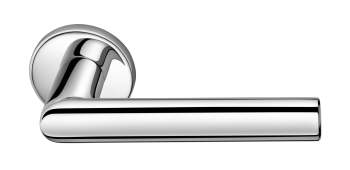

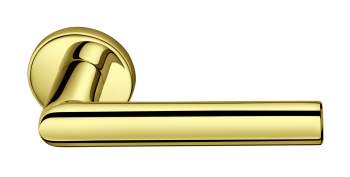

LW refers to the Lustra lever, one of Corbin Russwin's 61 available lever designs for the ML2000 Series. The Lustra is a clean contemporary profile suited for modern commercial and institutional interiors. The A designation refers to the round rose, the smaller of the two standard rose styles. The M designation (not this product) uses the larger escutcheon trim. Both are thru-bolted for additional security and proper alignment. For other lever and rose combinations on the ML2010 passage function, browse the full Corbin Russwin lever lock selection.

Available Finishes

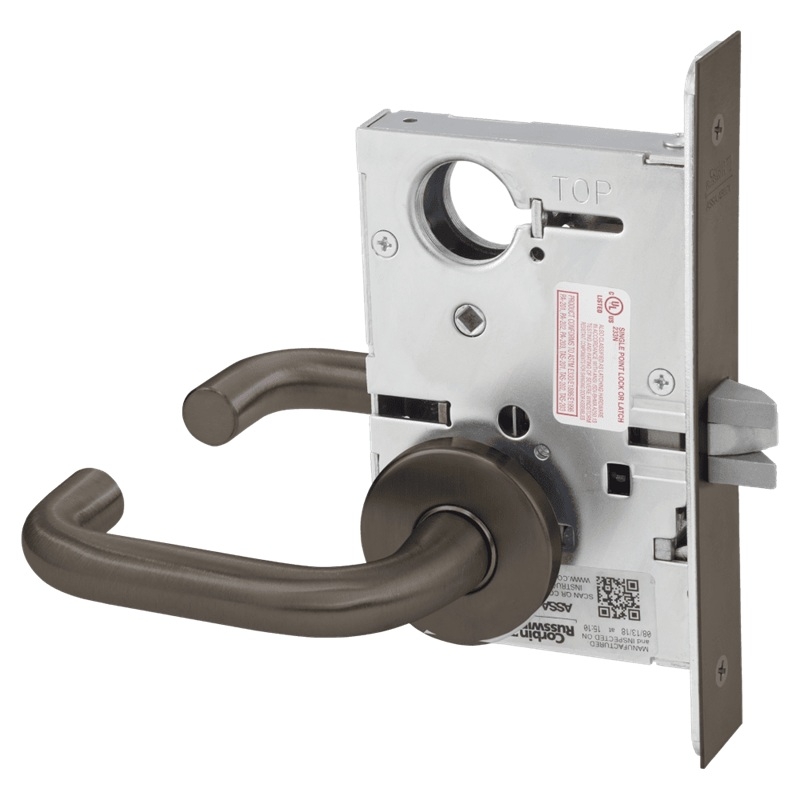

Finishes available across the ML2000 Series: 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Dark Bronze, 619 Satin Nickel, 625 Bright Chrome, 626 Satin Chrome, 629 Bright Stainless Steel, 630 Satin Stainless Steel, 633 Aged Bronze, 643 Matte Black, 689 Aluminum, 690 Dark Aluminum, 693 Black, 695 Satin Nickel Plated Steel.
