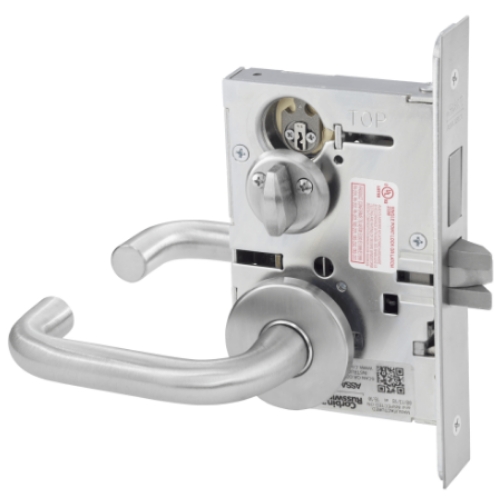

Corbin Russwin ML2030 Mortise Privacy Lock

About this item

The Corbin Russwin ML2030 is the privacy function in the Corbin Russwin ML2000 Series commercial mortise lock platform, certified to ANSI A156.13 Series 1000 Operational and Security Grade 1. ANSI Function F19. Designed for bedroom, bathroom, restroom, and private office applications in commercial, institutional, healthcare, and hotel environments. American Locksets is an authorized ASSA ABLOY Corbin Russwin dealer stocking the ML2030 with same-day shipping and free shipping on orders over $300.

Corbin Russwin ML2030 Privacy Lock: How the Function Works

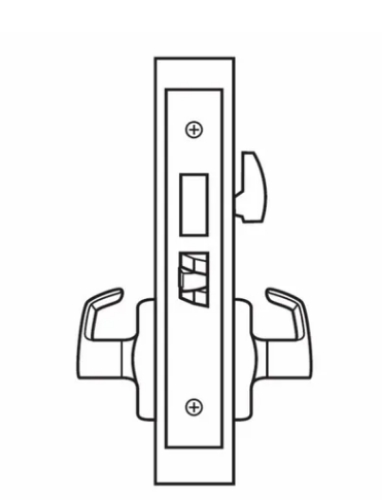

The ML2030 carries ANSI Function F19, which is the privacy function with both a latchbolt and a deadbolt. The function operates as follows:

The latchbolt operates freely from either side by grip unless the outside grip is locked by the thumbturn inside. The deadbolt is thrown or retracted by the thumbturn inside only. From the outside, the deadbolt can only be retracted by an emergency release tool, not by a key. The inside grip simultaneously retracts both the latchbolt and the deadbolt when turned, and unlocks the outside grip. This means a single inside lever operation clears the door completely, which is the correct behavior for life safety egress in privacy applications.

The privacy function provides occupancy privacy without trapping the occupant. Anyone inside can always exit freely by turning the inside lever. Emergency access from outside is provided by a slotted emergency release tool that retracts the deadbolt without a key. This is the correct specification for hotel guestrooms, hospital patient rooms, single-occupancy restrooms, and residential-style private spaces in commercial buildings.

Corbin Russwin ML2030 Specifications

• SKU: ML2030

• ANSI Function: F19, Privacy Bedroom or Bathroom

• Grade: ANSI/BHMA A156.13 Series 1000 Operational and Security Grade 1. Meets A117.1 Accessibility Code. Federal spec FF-H-106C

• UL/ULC: UL 10C positive pressure listed. All locks listed for A-label and lesser class doors, 4 feet x 10 feet single or 8 feet x 10 feet paired

• Lockcase: Heavy-gauge steel, 5-7/8 inch (149mm) x 4 inch (102mm) x 15/16 inch (24mm)

• Front: Heavy-gauge steel, 8 inch (203mm) x 1-1/4 inch (32mm). Accommodates flat and beveled doors, 1/8 inch in 2 inches

• Latchbolt: 2-piece mechanical with anti-friction insert, 5/8 inch x 1 inch, 3/4 inch throw. Patented Quick Reversible design, field re-handable without disassembling the lock case

• Auxiliary Latchbolt: 9/16 inch effective throw, 3/8 inch deadlocking

• Deadbolt: One-piece stainless steel, 19/32 inch x 1-1/4 inch x 1 inch throw

• Backset: 2-3/4 inch (70mm)

• Door Thickness: 1-3/4 inch (44mm) standard. Optional thicknesses available

• Strike: Wrought brass, bronze, or stainless steel. ANSI straight lip standard, 4-7/8 inch x 1-1/4 inch x 1-1/8 inch lip to center

• Cylinder: Brass, 6-pin, L4 keyway standard. 0-bitted standard. Compatible with Corbin Russwin patented high-security Pyramid and Access 3 cylinders. Also accepts cylinders from most other manufacturers

• Handing: Handed. Quick Reversible latchbolt re-hands without disassembling the lock case (Patent 6,349,982)

• Trim: Through-bolted for proper alignment and increased security. Compatible with multiple Corbin Russwin lever and escutcheon trim styles

• VN Indicator Option: VN indicator escutcheon available, displaying Vacant/Occupied in green and red on the exterior face

• Warranty: 10-year limited warranty
