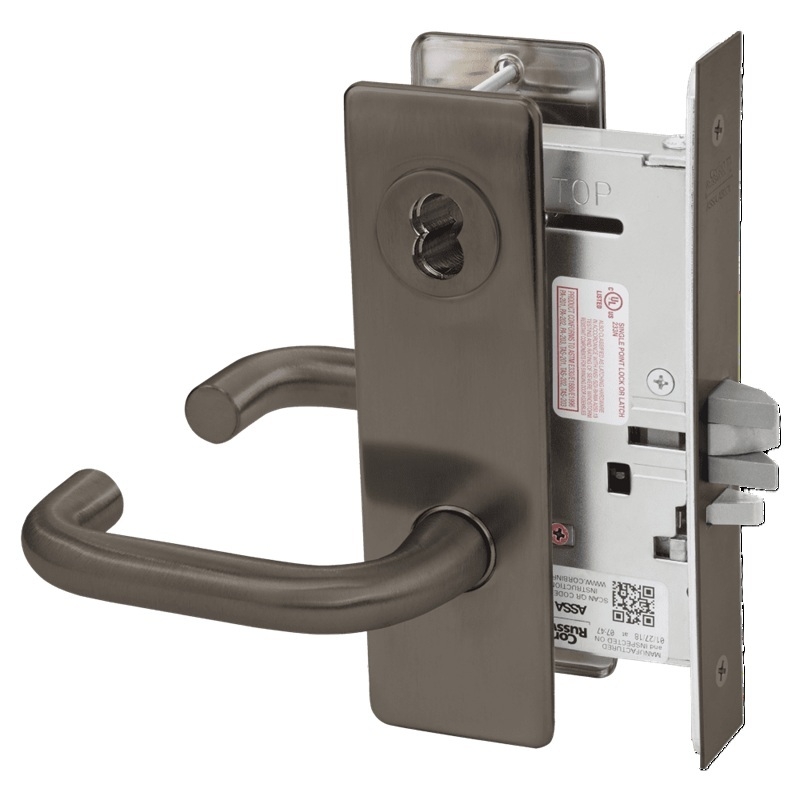

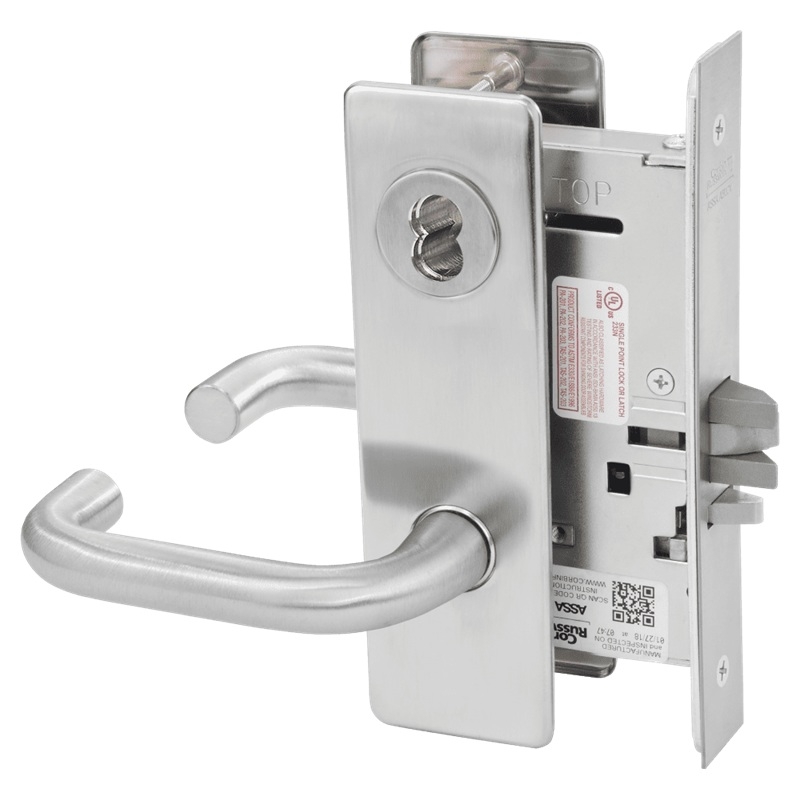

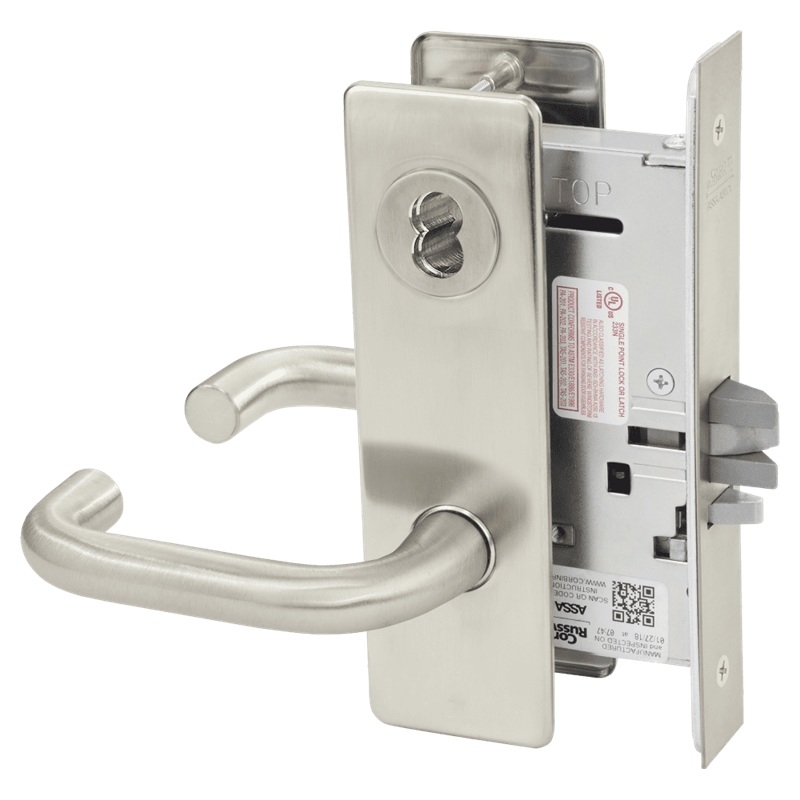

Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon

Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
ML-2042
ML2024-LSM
1Corbin-Russwin-FinishesChart
1-Page2-ML2
1-Page3-ML2
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon

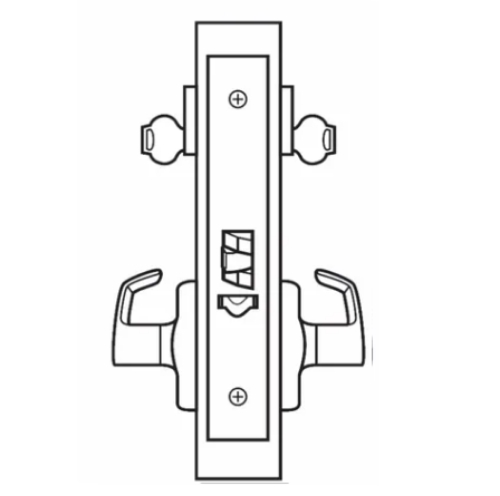

ML-2042

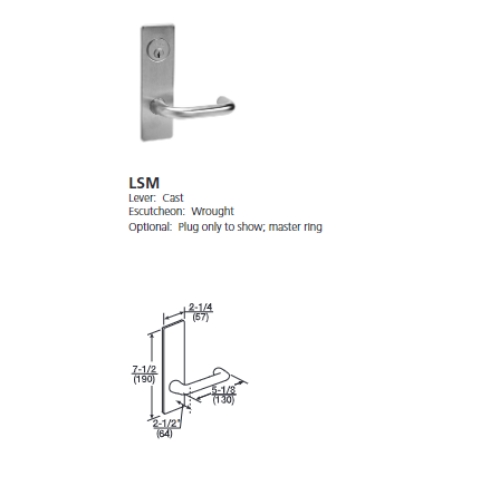

ML2024-LSM
1Corbin-Russwin-FinishesChart
1-Page2-ML2
1-Page3-ML2
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
naxt
prev

Product Details

Corbin Russwin ML2042-LSM Mortise Entrance or Public Restroom Lock

Entrance or Public Restroom - ANSI F09

Latchbolt by grip either side, unless outside grip is locked by key from inside. Latchbolt by key outside when outside grip is locked. Auxiliary latch deadlocks latchbolt. Inside grip always free.

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Warranty: Ten-year limited.

Model: Corbin Russwin ML2042LSM, ML2042LSM626

Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon

SKU: ML2042 LSM

In Stock
Picture for manufacturer Corbin Russwin
icon Chat

$950.29

Finish *

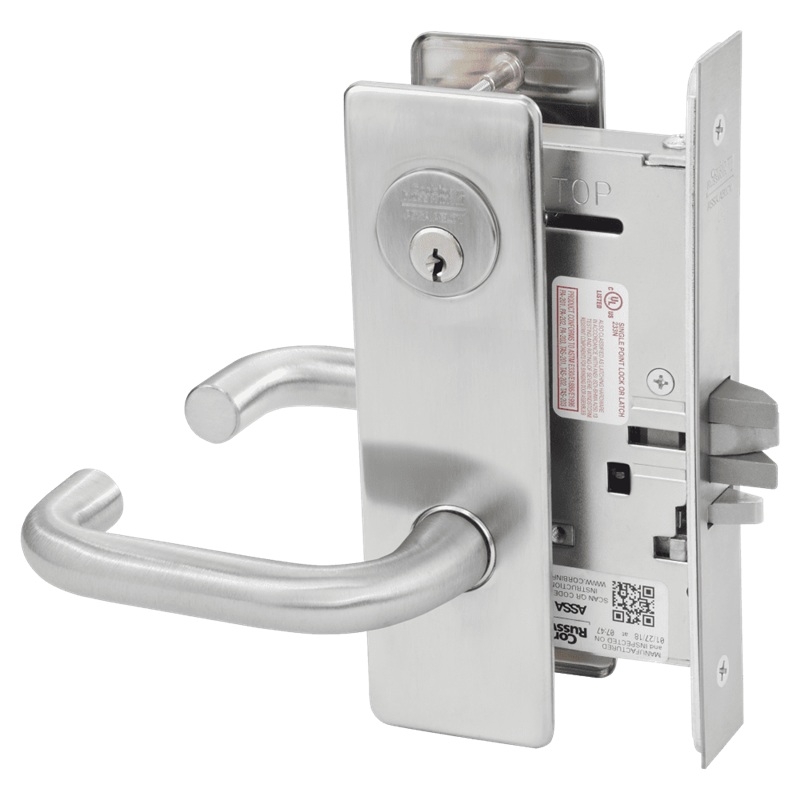

626 - Satin Chrome
626 - Satin Chrome
613 - Oil Rubbed Bronze
613 - Oil Rubbed Bronze

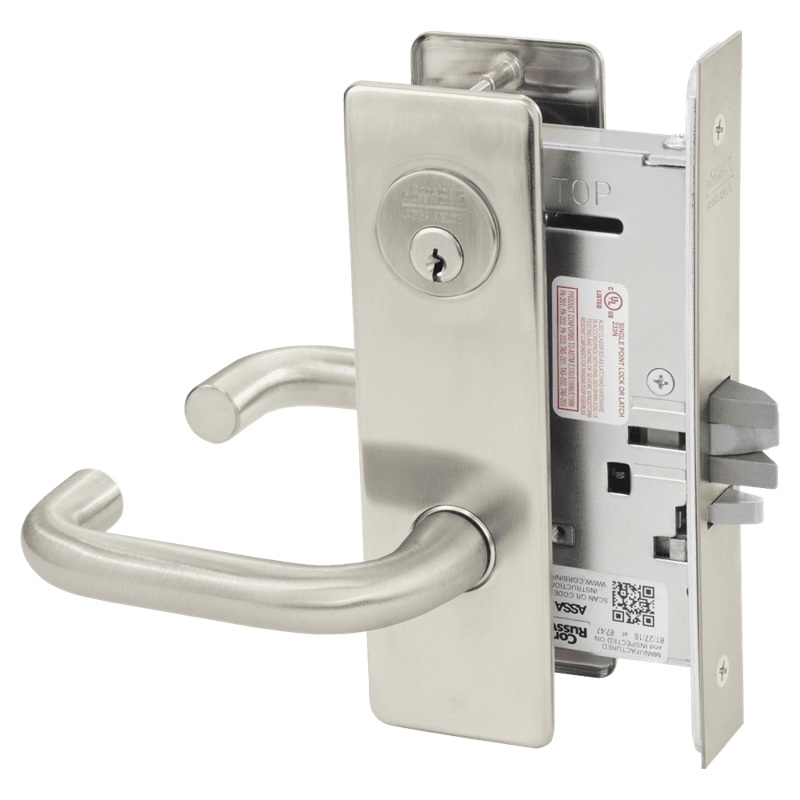

630 - Satin Stainless Steel
630 - Satin Stainless Steel

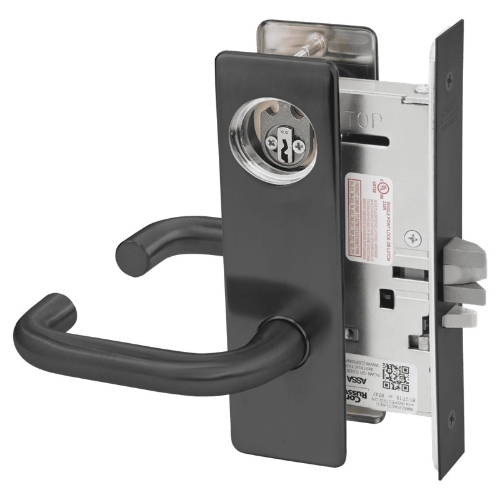

722 - Black Oxidized Bronze
722 - Black Oxidized Bronze

Cylinder *

Conventional (Standard)
Conventional (Standard)

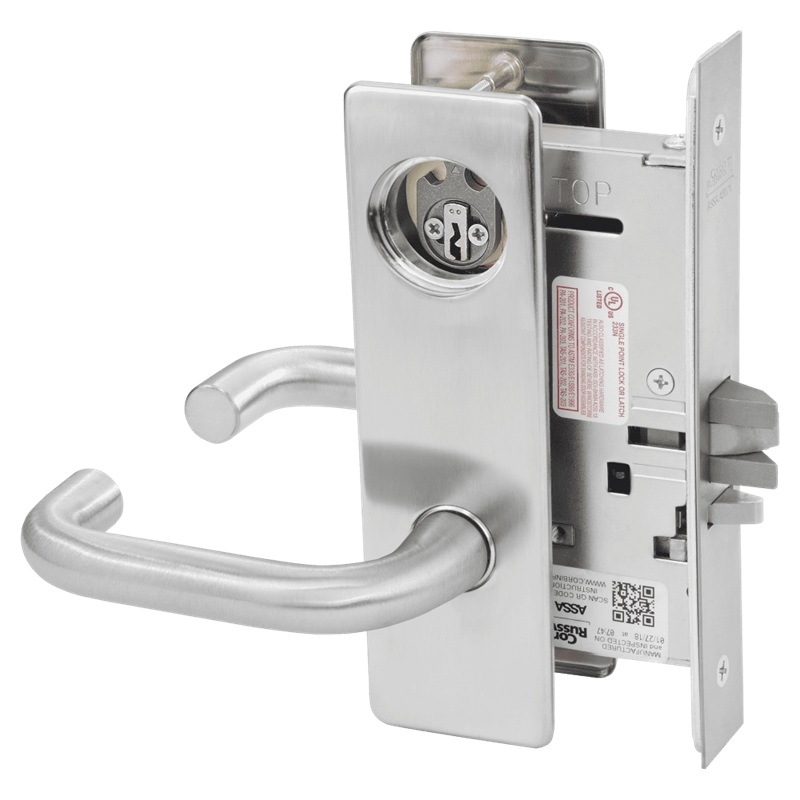

CL6 - Prepared for Interchangeable core, less core
CL6 - Prepared for Interchangeable core, less core
LC - Less Cylinder
LC - Less Cylinder

Keyway *

Keying *

About this item

The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of hightraffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1" stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

Resources

Corbin Russwin ML2042-LSM Mortise Entrance or Public Restroom Lock

Entrance or Public Restroom - ANSI F09

Latchbolt by grip either side, unless outside grip is locked by key from inside. Latchbolt by key outside when outside grip is locked. Auxiliary latch deadlocks latchbolt. Inside grip always free.

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Warranty: Ten-year limited.

Model: Corbin Russwin ML2042LSM, ML2042LSM626

Picture of Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon
Corbin Russwin ML2042 LSM Entrance or Public Restroom Mortise Lock, LS Lever, M Escutcheon

Product code: ML2042 LSM

In Stock

$950.29

$950.29

Certification/Compliance ANSI: Meets A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

UL /ULC-UL10C Positive Pressure: All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)All levers with returns, return to within 1/2" (13mm) of door face.
