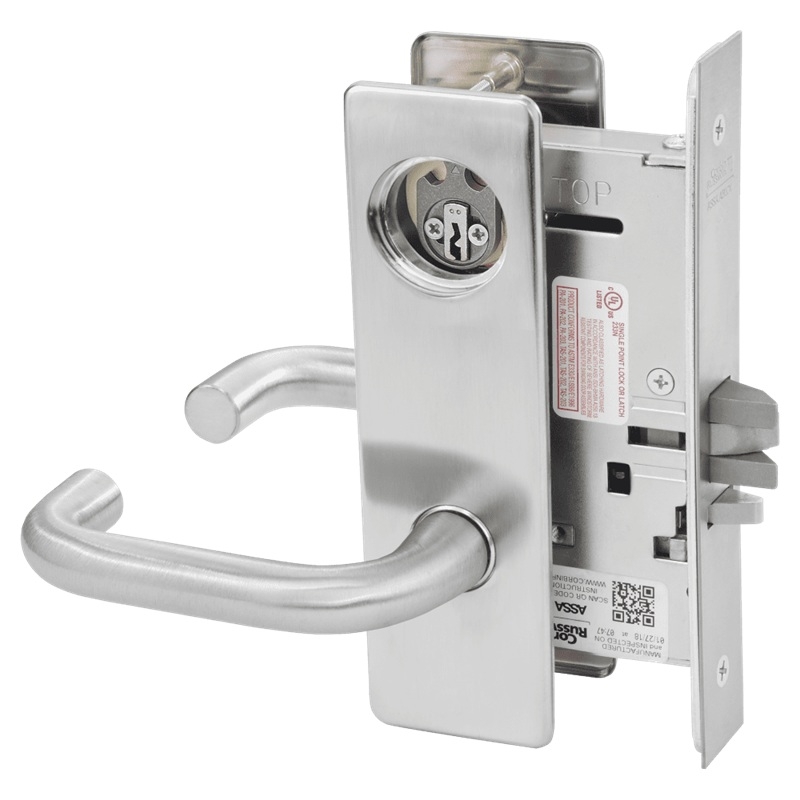

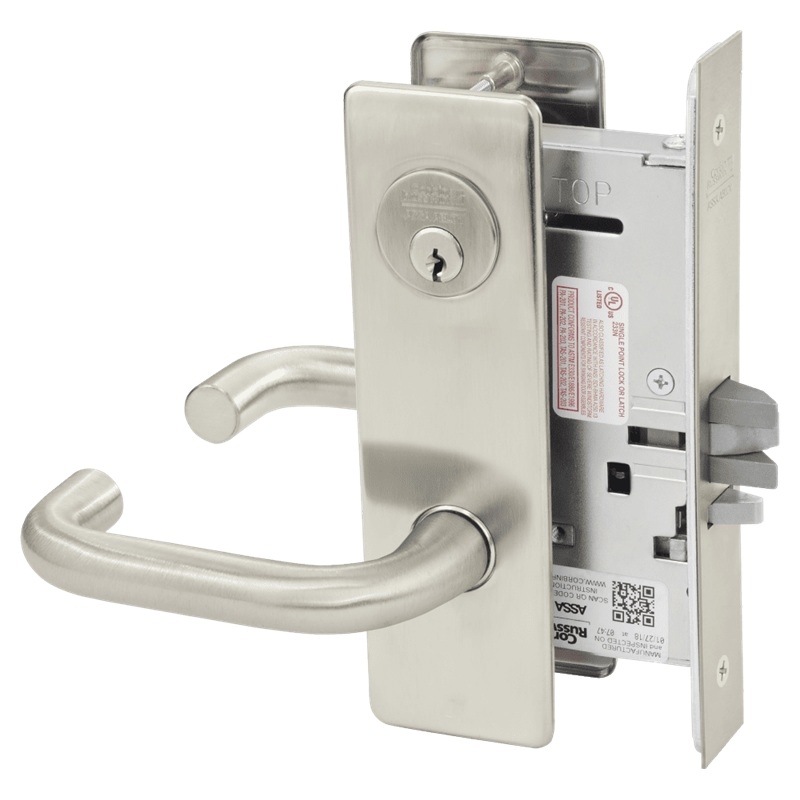

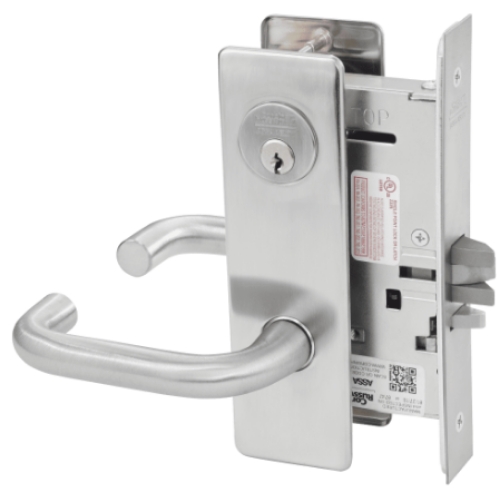

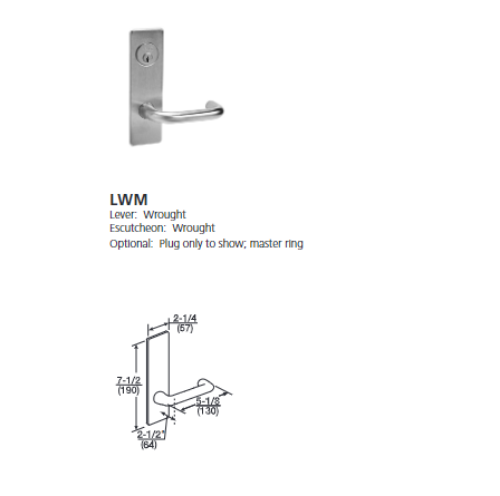

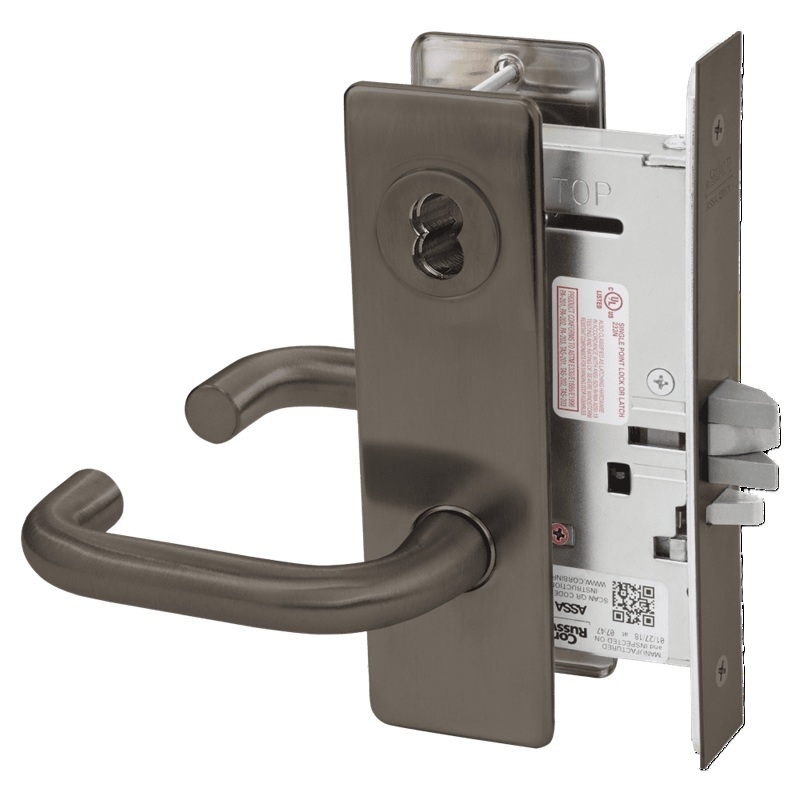

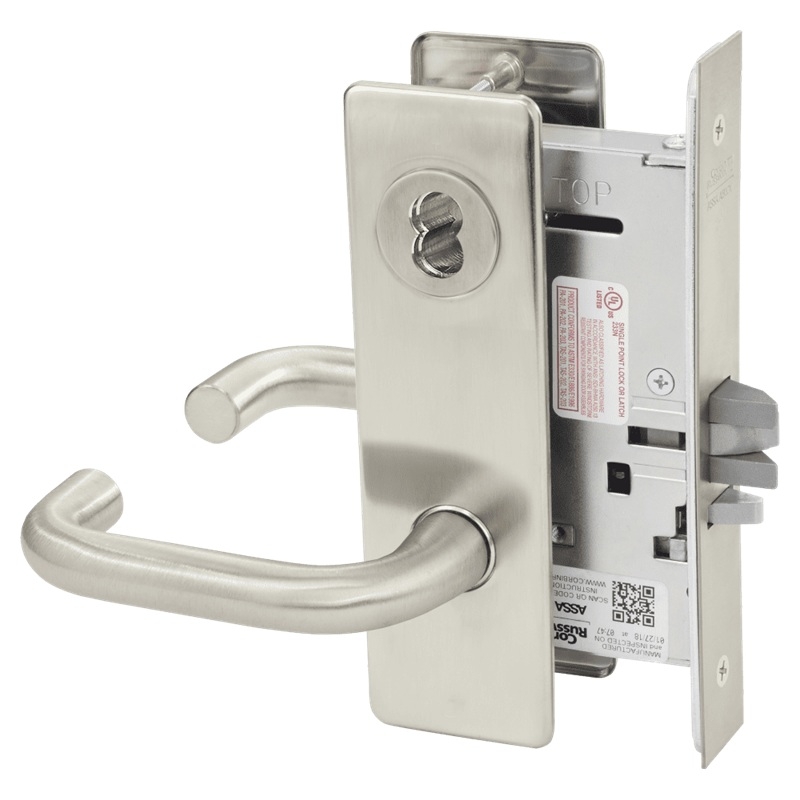

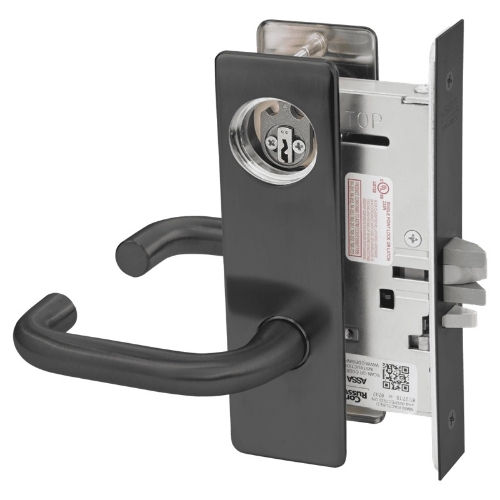

Corbin Russwin ML2042 LWM Entrance or Public Restroom Mortise Lock, LW Lever, M Escutcheon

Corbin Russwin ML2042 LWM Entrance or Public Restroom Mortise Lock, LW Lever, M Escutcheon

Product Details

Corbin Russwin ML2042-LWM Mortise Entrance or Public Restroom Lock

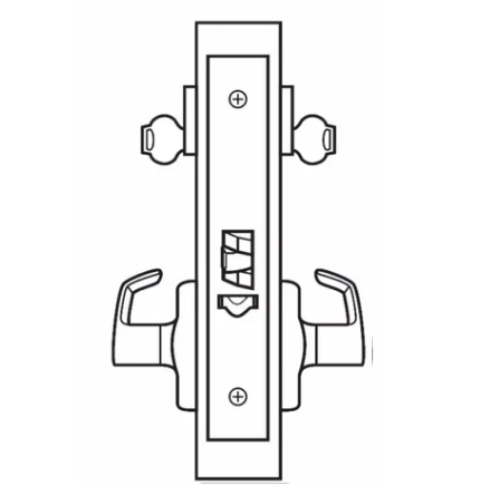

Entrance or Public Restroom - ANSI F09

Latchbolt by grip either side, unless outside grip is locked by key from inside. Latchbolt by key outside when outside grip is locked. Auxiliary latch deadlocks latchbolt. Inside grip always free.

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Warranty: Ten-year limited.

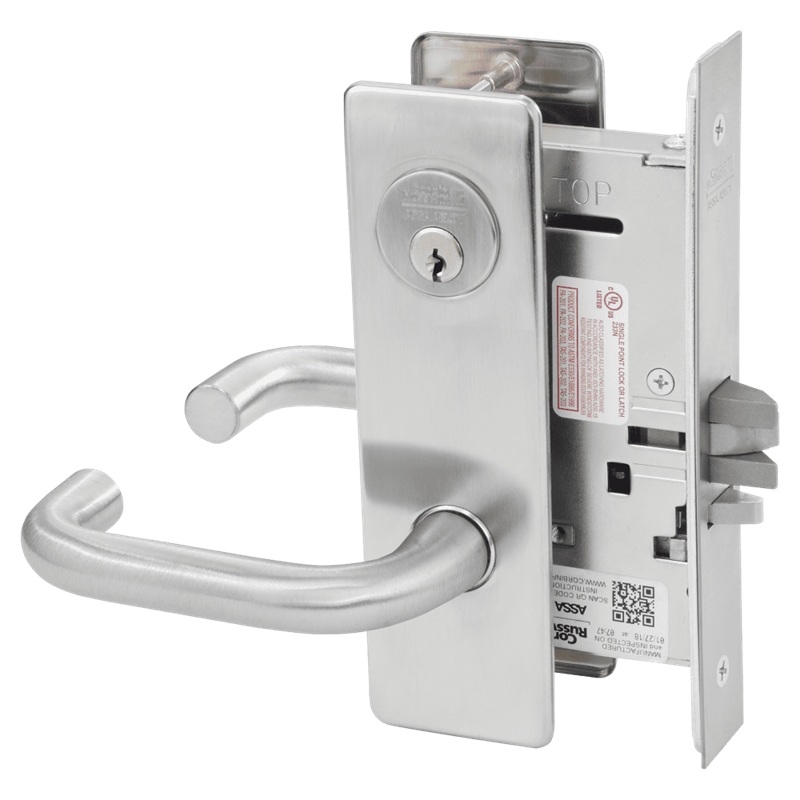

Model: Corbin Russwin ML2042LWM, ML2042LWM605, ML2042LWM612, ML2042LWM613, ML2042LWM626, ML2042LWM722

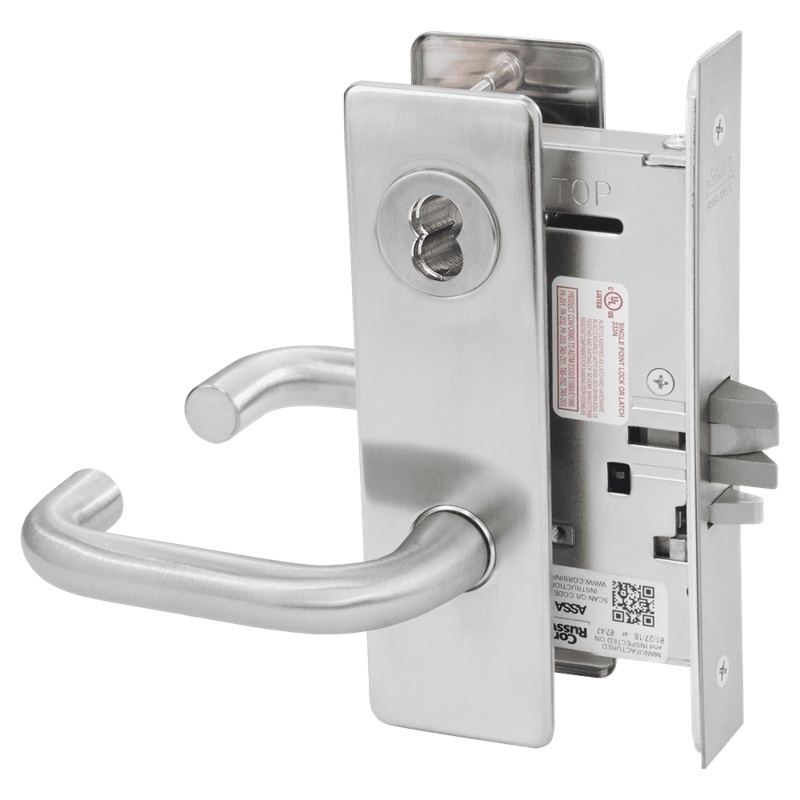

Corbin Russwin ML2042 LWM Entrance or Public Restroom Mortise Lock, LW Lever, M Escutcheon

Name: Corbin Russwin ML2042 LWM Entrance or Public Restroom Mortise Lock, LW Lever, M Escutcheon
SKU: ML2042 LWM
Price: 793.35 USD
Availability: InStock

SKU: ML2042 LWM

In Stock

Chat

$793.35

About this item

The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of hightraffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1" stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

Resources

Corbin Russwin ML2042-LWM Mortise Entrance or Public Restroom Lock

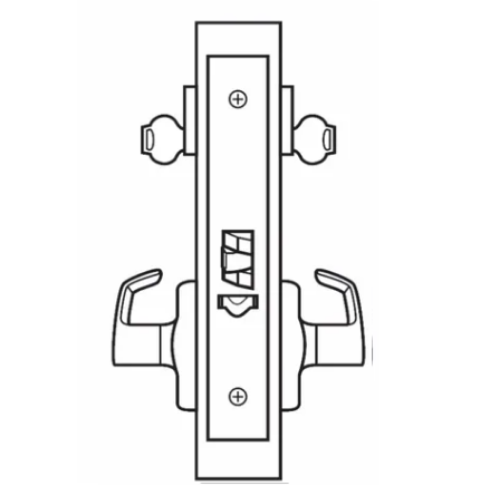

Entrance or Public Restroom - ANSI F09

Latchbolt by grip either side, unless outside grip is locked by key from inside. Latchbolt by key outside when outside grip is locked. Auxiliary latch deadlocks latchbolt. Inside grip always free.

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Warranty: Ten-year limited.

Model: Corbin Russwin ML2042LWM, ML2042LWM605, ML2042LWM612, ML2042LWM613, ML2042LWM626, ML2042LWM722

Corbin Russwin ML2042 LWM Entrance or Public Restroom Mortise Lock, LW Lever, M Escutcheon

Product code: ML2042 LWM

In Stock

$793.35

Certification/Compliance ANSI: Meets A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

UL /ULC-UL10C Positive Pressure: All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)All levers with returns, return to within 1/2" (13mm) of door face.
