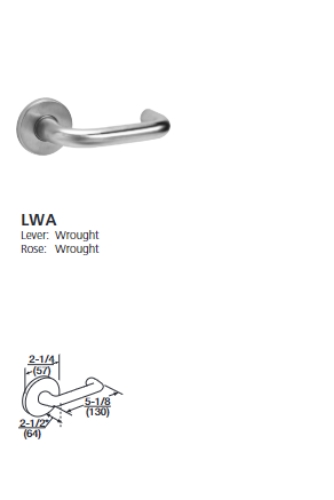

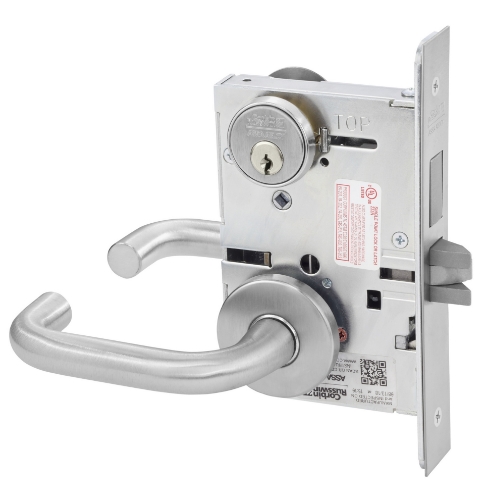

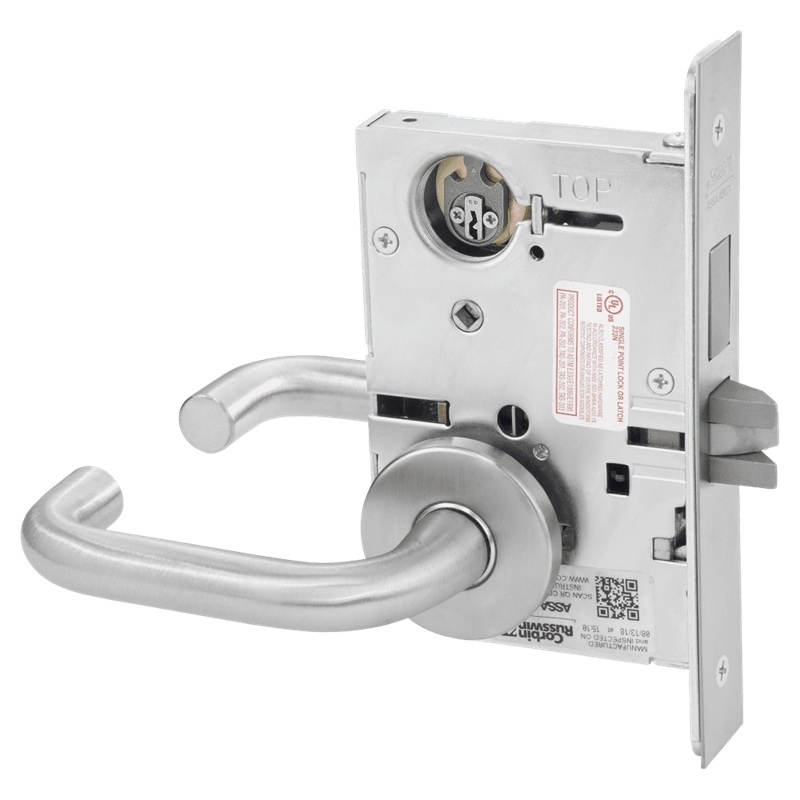

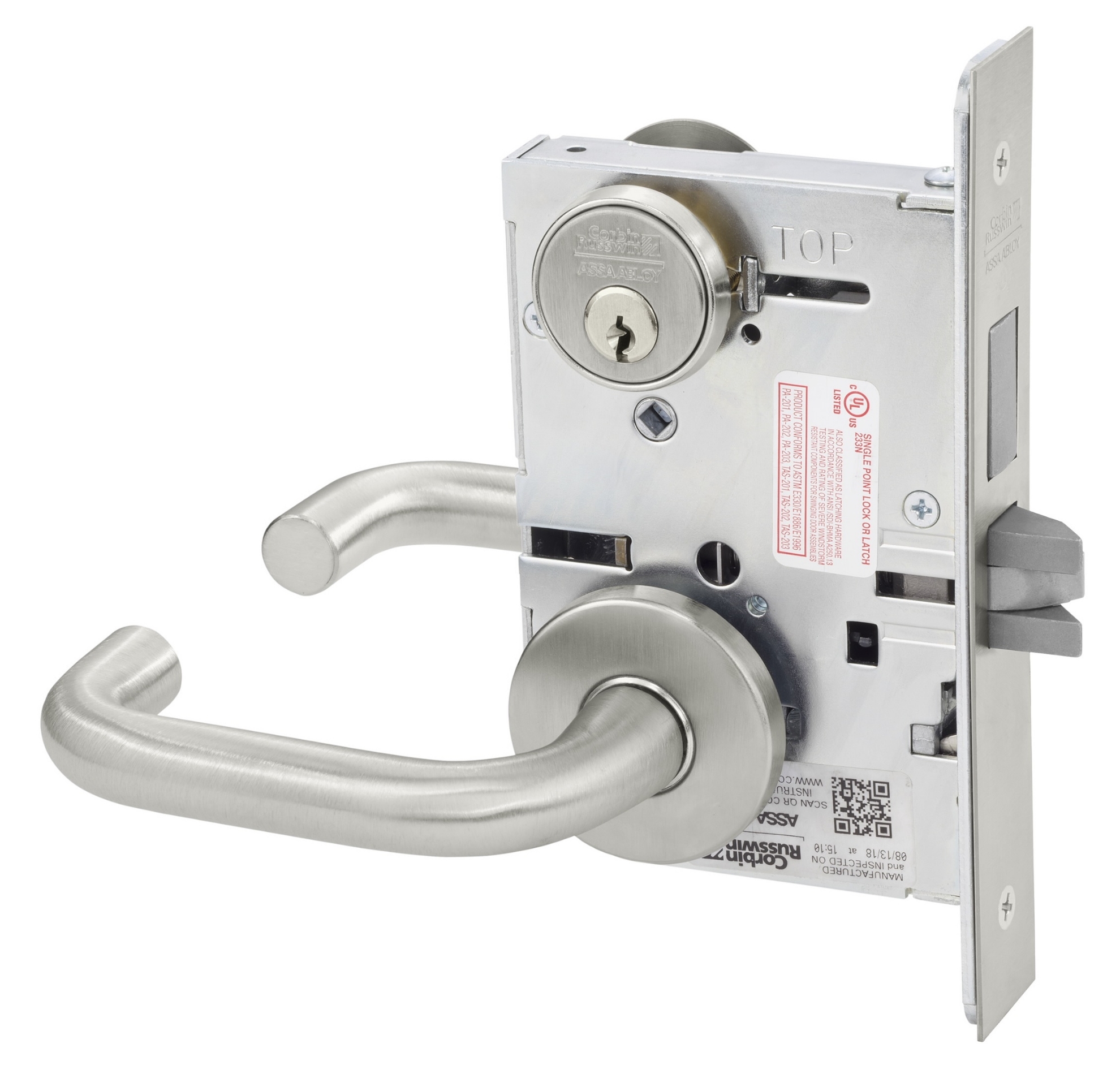

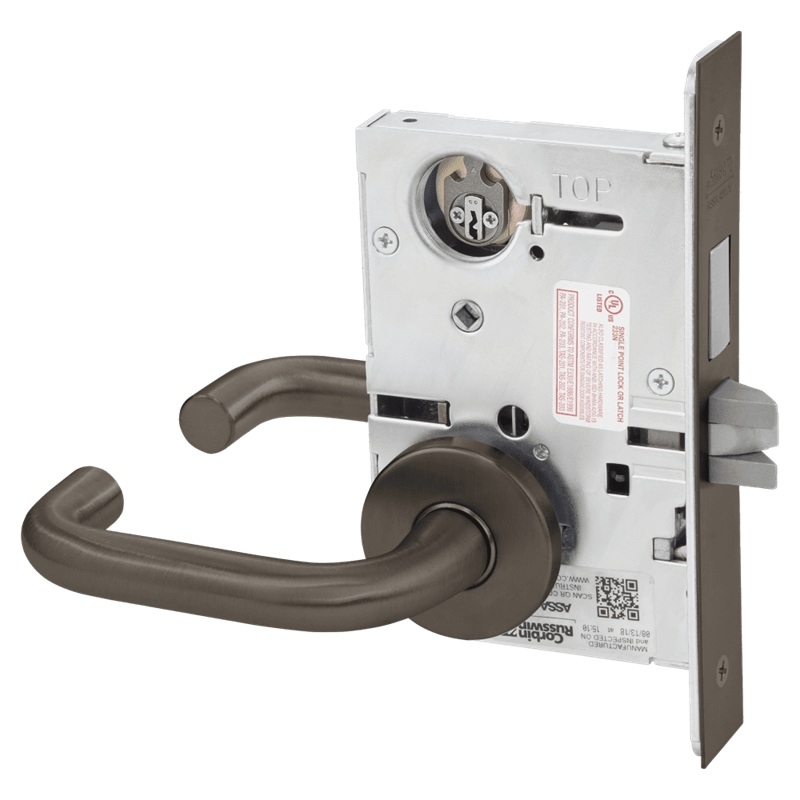

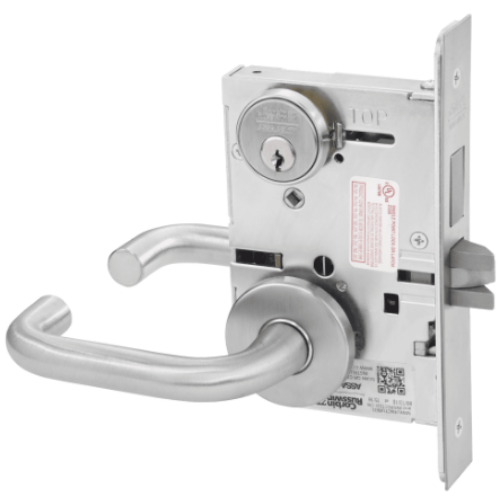

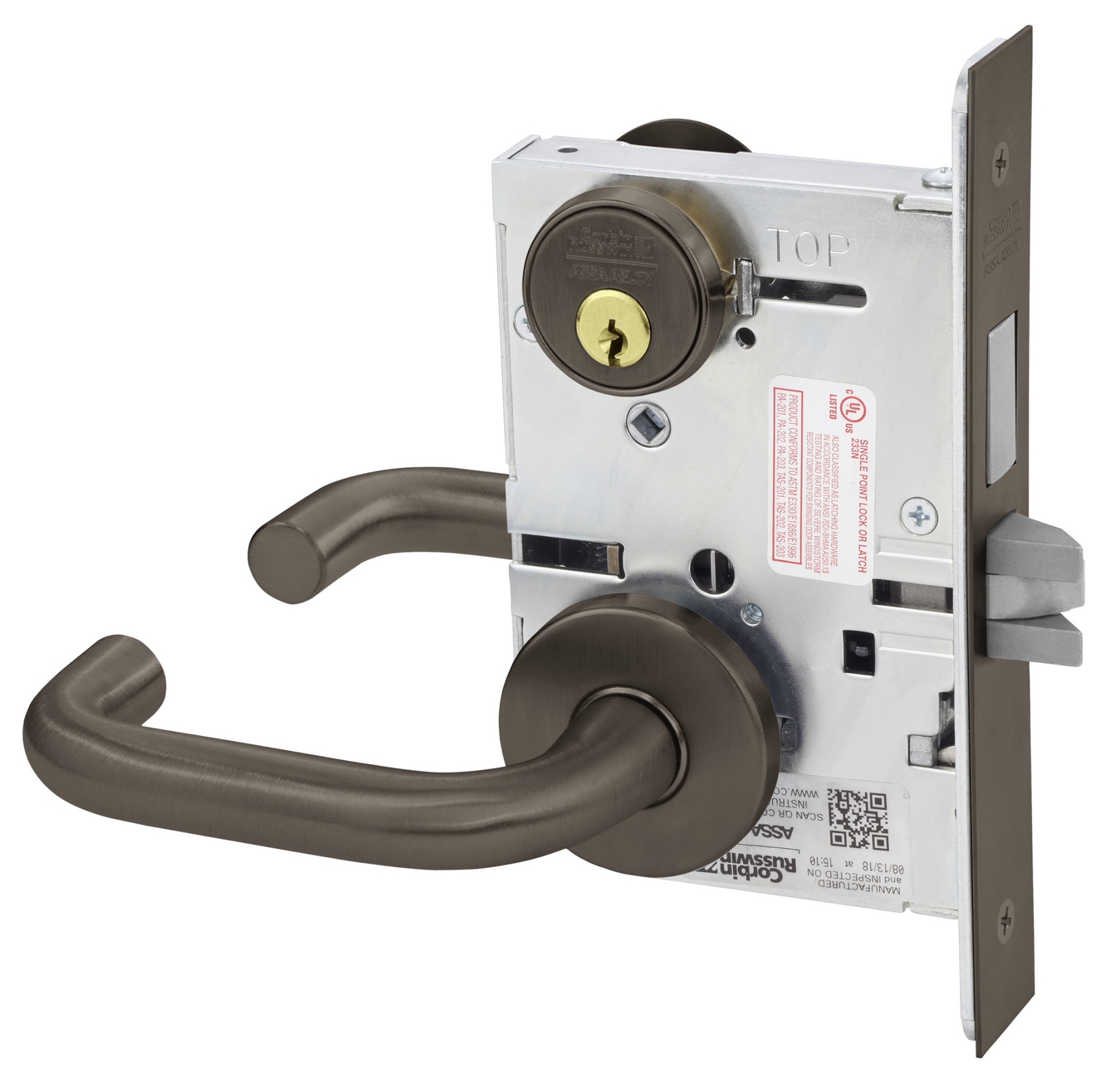

Corbin Russwin ML2062 LWA Intruder Deadbolt Mortise Lock, LW Lever, A Rose

 Corbin Russwin ML2062-LWA Intruder Deadbolt Lock

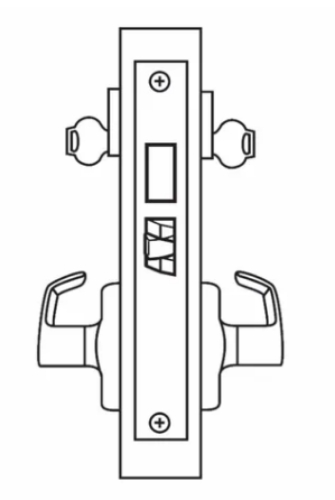

Intruder Deadbolt  - ANSI F33

- Latchbolt by grip either side, unless outside grip is locked by projection of deadbolt.  - Deadbolt thrown or retracted by key from either side.  - Inside grip simultaneously retracts latchbolt and deadbolt and unlocks outside grip.  - Inside grip always free

*Door Thickness:*1-3/4" (44mm) standard.

*Backset:*2-3/4" (70mm).

*Lockcase:*Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

*Armored Front:*Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt:2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

*Auxiliary Latchbolt:*9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

*Deadbolt:*One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

*Hub*Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

*Spacing*C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

*Strike:*Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

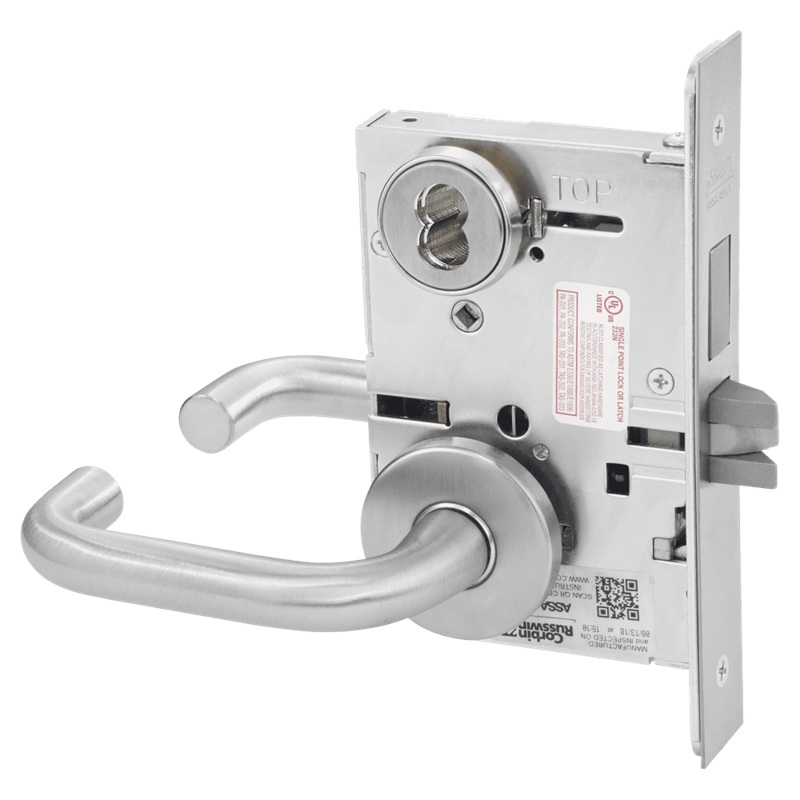

Cylinder:Brass, 6-pin, L4 keyway standard. Optional cylinders available, 7-pin cylinder, Interchangeable core (IC)

Keys:Two nickel silver standard.

*Keying Features Available:*Master keying, Construction master keying

Warranty:Ten-year limited.

Handing:Quick reversible. The lockset can be re-handed without disassembling the lock case

Certification/Compliance*ANSI:*Meets A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

*Federal:*Meets FF-H-106C.

*UL /ULC-UL10C Positive Pressure:*All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

*California State Reference Code:*(Formerly Title 19, California State Fire Marshal Standard)All levers with returns, return to within 1/2" (13mm) of door face.

Model: Corbin Russwin ML2062LWA, ML2062LWA605, ML2062LWA606, ML2062LWA612, ML2062LWA613, ML2062LWA625, ML2062LWA626, ML2062LWA630, ML2062LWA722, Corbin Russwin ML2062, ML2062LWA Corbin Russwin, Corbin Russwin  ML2062LWA605, Corbin Russwin ML2062LWA606, Corbin Russwin ML2062LWA612, Corbin Russwin ML2062LWA613, Corbin Russwin ML2062LWA625, Corbin Russwin ML2062LWA626, Corbin Russwin ML2062LWA630, Corbin Russwin ML2062LWA722, Corbin Russwin ML2062  ML2062LWA Corbin Russwin, ML2062LWA605 Corbin Russwin, ML2062LWA606 Corbin Russwin, ML2062LWA612 Corbin Russwin, ML2062LWA613 Corbin Russwin, ML2062LWA625 Corbin Russwin, ML2062LWA626 Corbin Russwin, ML2062LWA630 Corbin Russwin, ML2062LWA722 Corbin Russwin
