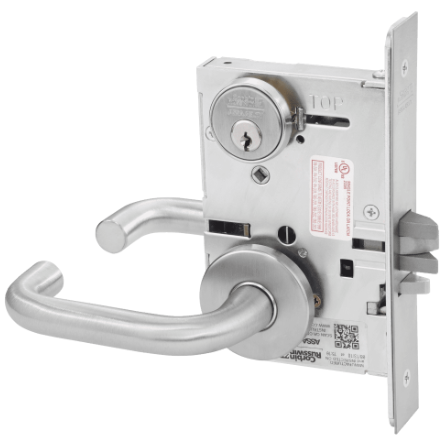

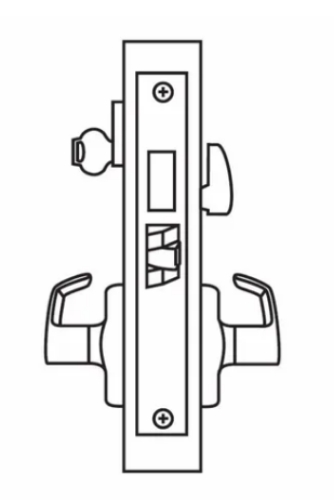

Corbin Russwin ML2065 Mortise Security Dormitory Lock

About this item

The Corbin Russwin ML2065 is the dormitory or entrance function in the ML2000 Series Grade 1 commercial mortise lock family, built for university residence halls, hotel guestrooms, healthcare staff entry points, and any opening where occupants need both privacy control from inside and key-controlled entry from outside using a single lock. American Locksets is an authorized ASSA ABLOY Corbin Russwin dealer stocking the ML2065 with same-day shipping and free shipping on all orders over $300.

Corbin Russwin ML2065 Mortise Dormitory Lock, ANSI Function F13, Grade 1

The ML2065 operates on ANSI Function F13. The latchbolt operates by grip from either side unless the outside grip is locked by projection of the deadbolt. The deadbolt is thrown or retracted by key from the outside, or by thumbturn from inside. Operating the inside grip simultaneously retracts both the latchbolt and the deadbolt and unlocks the outside grip in a single motion, providing immediate one-action egress from the room at all times. The inside grip is always free.

In practical terms, an occupant locks the room from inside by turning the interior thumbturn. An authorized person enters from outside by key, which retracts the deadbolt and allows the outside lever to function. The inside lever always exits the room regardless of the deadbolt state. This behavioral combination covers the core dormitory and hotel room requirement: resident-controlled privacy from inside, key-controlled authorized entry from outside, and guaranteed egress with no separate override needed.

ML2065 vs. Other Corbin Russwin Privacy and Dormitory Functions

The ML2000 Series covers multiple dormitory and privacy functions that address similar but distinct operational requirements.

The ML2065 Function F13 is correct for any opening where the occupant projects a deadbolt from inside to lock the outside lever, and the outside lever is released by key from the exterior. This is the classic dormitory and hotel room function.

The ML2060 Function F22 is the privacy function where the inside thumbturn locks the outside grip directly, without projecting a separate deadbolt into the strike. The ML2067 Function F20 adds a toggle-action stop as an additional locking method. For healthcare rooms requiring specific emergency override configurations, confirm the correct function with the hardware schedule before specifying.

Specifications

The ML2000 lock case is heavy-gauge steel, chrome plated, measuring 5-7/8 inches (149mm) high by 4 inches (102mm) wide by 15/16 inch (24mm) deep. An optional non-ferrous lock case is available for corrosion-sensitive environments. The front plate is heavy-gauge steel, 8 inches (203mm) by 1-1/4 inches (32mm), accommodating flat doors and doors beveled up to 1/8 inch (3mm) in 2 inches (51mm). Wide front option D138 is available for 1-3/8 inch (35mm) doors.

Key component specs:

• Backset: 2-3/4 inch (70mm) standard

• Door thickness: 1-3/4 inch (44mm) standard, optional thicknesses available

• Latchbolt: 2-piece mechanical with anti-friction insert, 5/8 inch (16mm) x 1 inch (25mm) x 3/4 inch (19mm) throw

• Auxiliary latchbolt: 9/16 inch (14mm) effective throw, 3/8 inch (10mm) effective auxiliary latch deadlocking

• Deadbolt: One-piece stainless steel, 19/32 inch (15mm) x 1-1/4 inch (32mm) x 1 inch (25mm) throw

• Hub: Steel, 5/16 inch (8mm); knob/lever to cylinder center-to-center spacing 3-5/8 inch (92mm); knob/lever to thumbturn hub 2-7/16 inch (62mm)

• Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip standard, 4-7/8 inch (124mm) x 1-1/4 inch (32mm), 1-1/8 inch (29mm) lip to center

• Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard; 2 nickel silver keys furnished; optional Pyramid and Access 3 high-security cylinders available

• Handing: Handed, quick reversible without disassembling the lock case

• Armored front: Wrought brass, bronze, or stainless steel, machine screws standard; ML2000VR uses security Torx screws

Certifications and Warranty

ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1. Meets ANSI A117.1 Accessibility Code. Federal specification FF-H-106C. UL and ULC listed for 3-hour fire doors, A label, 4-foot by 10-foot single and 8-foot by 10-foot pairs, positive pressure UL10C and UBC 7-2. Windstorm and hurricane certified, confirm local codes. Independent UL cycle testing at 14.5 million cycles, Verification ID V875753. 10-year manufacturer warranty.
