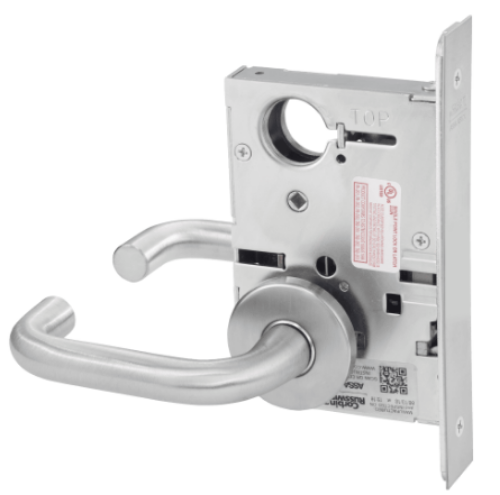

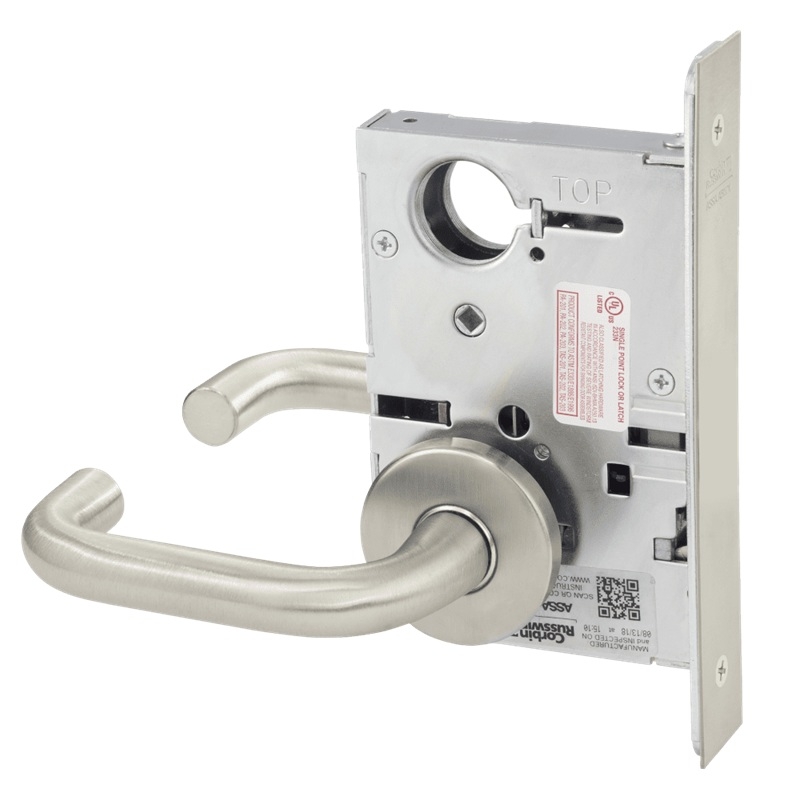

Corbin Russwin ML2070 LWA Full Dummy Trim Mortise Trim, LW Lever, A Rose

The Corbin Russwin ML2070 is the full dummy trim in the ML2000 Series, using the same LW Lever (Lustra Wide) and A Rose configuration as the active ML2000 function locks. It matches the appearance of any ML2000 LWA active lock in the same finish, which is why it's specified on inactive door leaves, fixed panels, and architectural applications where visual consistency with operating ML2000 hardware on the same elevation matters.

For the complete Corbin Russwin ML2000 Series active functions, browse our Corbin Russwin lever locks. For all commercial mortise locks, view our mortise locks catalog.

When to Specify Full Dummy Trim

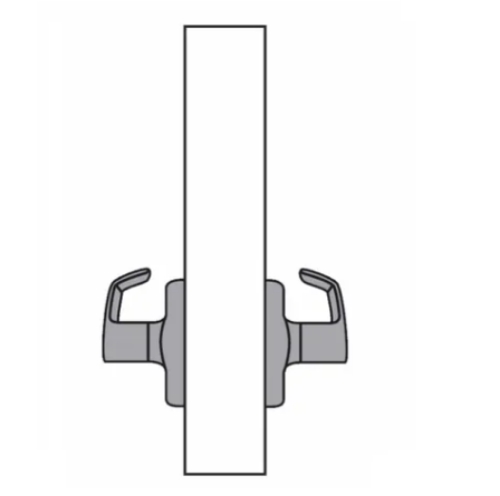

The most common application is the inactive leaf of a pair of doors. On a double-door entrance where only one leaf has an active lock and latch, the other leaf needs a handle on both sides for visual balance and user experience. The ML2070 mounts on that inactive leaf and provides a pull handle on each side that matches the active lock's trim appearance exactly. Without dummy trim, the inactive leaf has no handle and creates both an aesthetic problem and a functional awkwardness for people approaching the entrance.

The ML2070 is also specified on fixed panels adjacent to active doors, display entries where the door panel is non-functional, and any application where a developer or architect wants consistent lever hardware appearance across a facade without installing operational lock bodies in every opening.

Corbin Russwin ML2070 LWA Technical Specifications

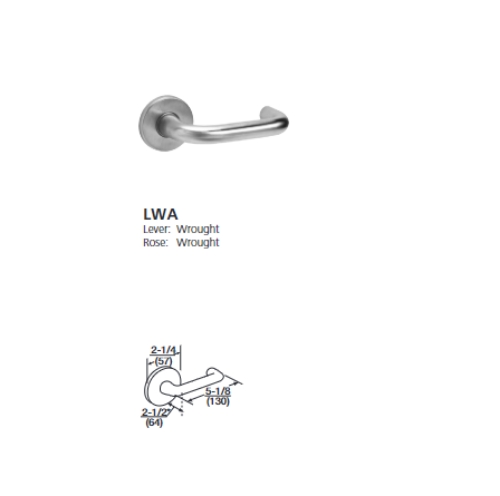

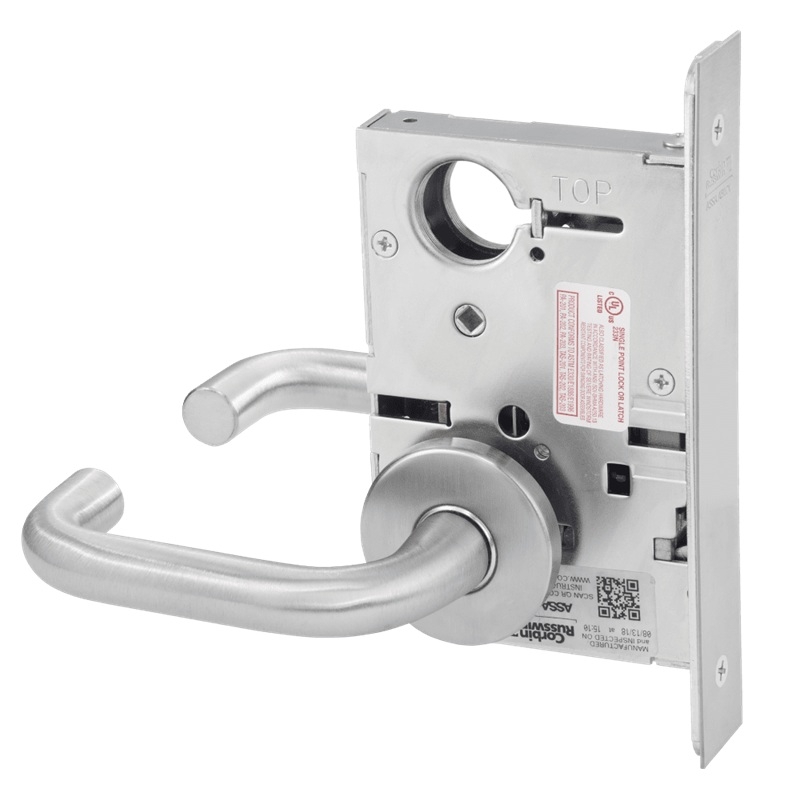

Series: Corbin Russwin ML2000. Function: ML2070, Full Dummy Trim. Lever: LW, Lustra Wide. Rose: A rose, standard flat round. Grade: ML2000 series trim grade. Function type: Grip acts as pull only, no mechanical operation. No latch, no deadbolt, no cylinder. Door thickness: 1-3/4" (44mm) standard. Warranty: 10-year limited. Available models by finish: ML2070LWA605, ML2070LWA606, ML2070LWA612, ML2070LWA613, ML2070LWA625, ML2070LWA626, ML2070LWA630, ML2070LWA722. Available finishes: 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel, 722.

ML2070 vs. ML2010: Dummy vs. Passage

The ML2010 is the passage function: a full active mortise lock with latch, deadbolt, and cylinder where both levers always operate the latch freely. The ML2070 (this product) is the dummy trim: no latch, no deadbolt, no operation of any kind. Both use the same LWA trim configuration so they look identical when installed side by side.

If a pair of doors has one active leaf and one inactive leaf, the active leaf gets the ML2010 (or whichever active function the opening requires) and the inactive leaf gets the ML2070. If both leaves need to operate, both get active function locks. The ML2070 is never a substitute for a functional lock: it provides appearance only, not security, not latch retention, and not any access control function.

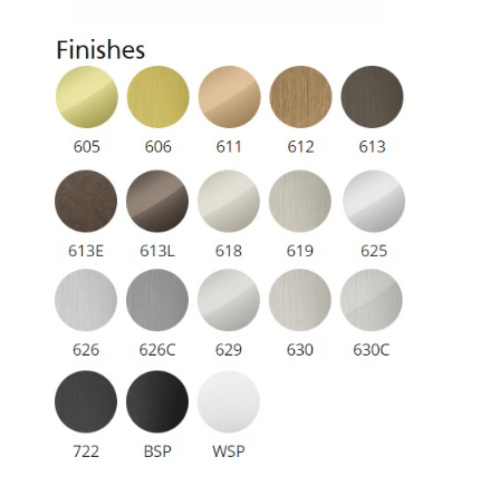

Finish Selection and Matching

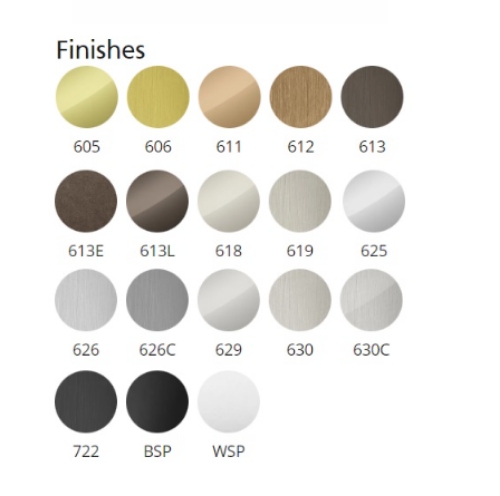

The ML2070 is available in 8 standard finishes matching the full ML2000 series. When specifying dummy trim to match active hardware on the same opening, order both the active lock and the ML2070 in the same finish designation (605, 626, 630, etc.) to ensure finish consistency. Finish lots can vary across production runs; ordering both at the same time from the same source reduces the risk of visible finish differences between the active and inactive leaf hardware.
