Name: Corbin Russwin ML2087 Security Vestibule, Double Cylinder
SKU: ML2087LWA
Price: 781.59 USD
Availability: InStock

Commercial Locks
Mortise Locks

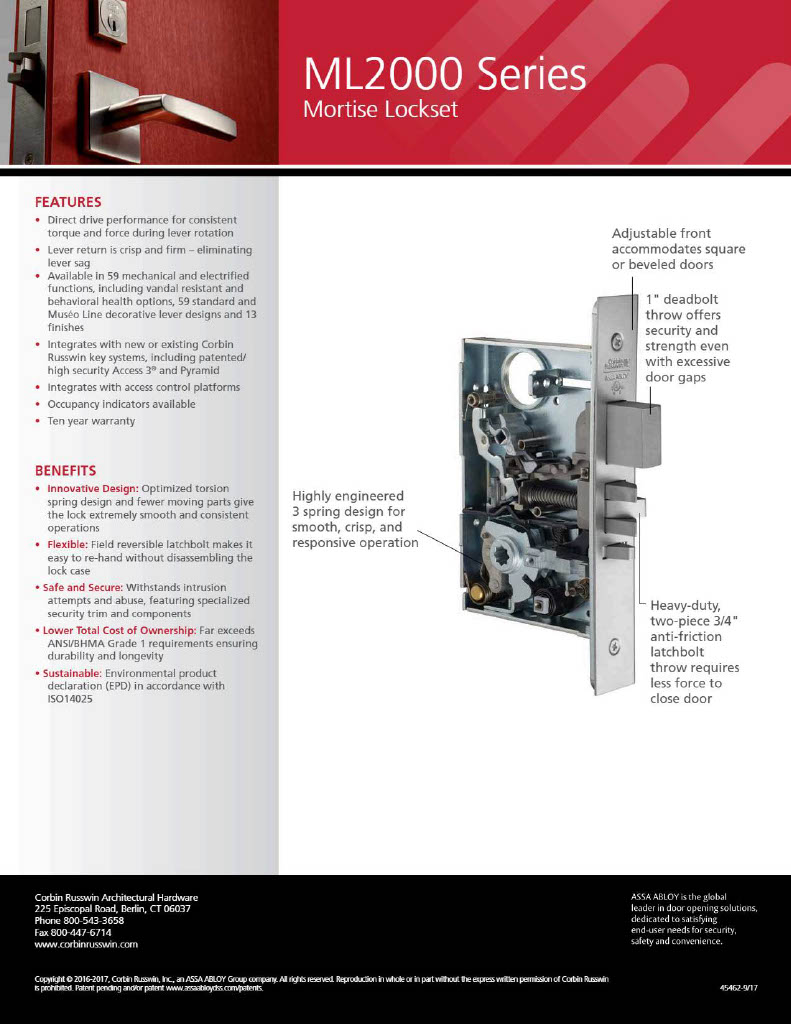

Corbin Russwin ML2000 Series
ML2000 - All Levers
Corbin Russwin ML2087 Security Vestibule, Double Cylinder

Corbin Russwin ML2087 Security Vestibule, Double Cylinder

Product Details

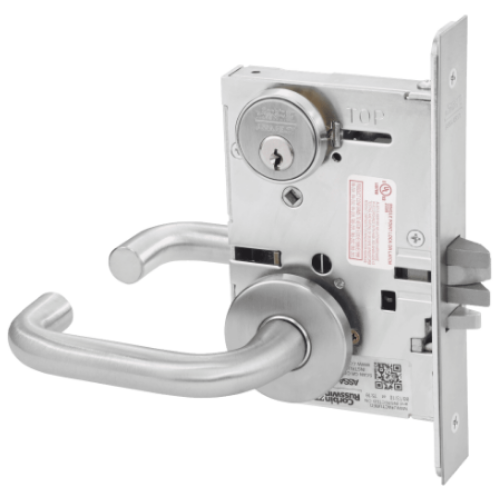

Corbin Russwin ML2087 Security Vestibule, Double Cylinder

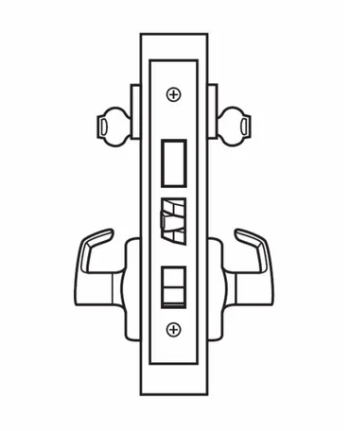

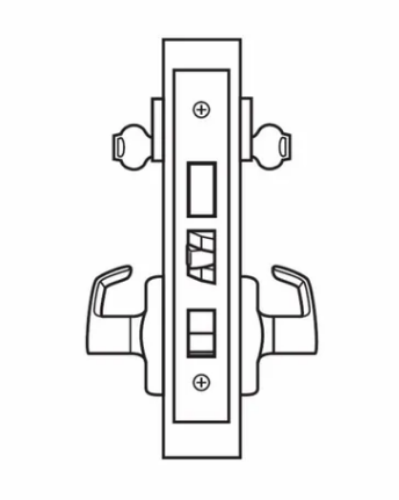

ML2087 - Security Vestibule

Latchbolt by grip outside, unless outside grip is locked by key outside.
Outside grip remains locked unless unlocked by key outside.
Latchbolt by key outside when outside grip locked.
Latchbolt by key inside.
Inside grip always rigid.
Auxiliary latch deadlocks latchbolt.

Notes:- - Handing must be specified. - This function can only be field handed for door swing i.e. LH to LHR or RH to RHR. - Not available with L, R or V escutcheon trim. - This function does not allow free egress when inside locked and can pose a life. - safety hazard in event of an emergency. - Installation should be in accordance with approved codes only.

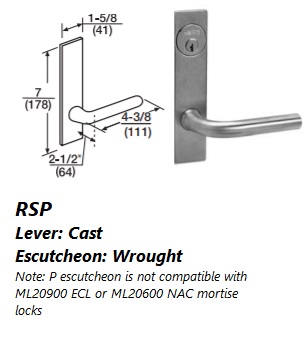

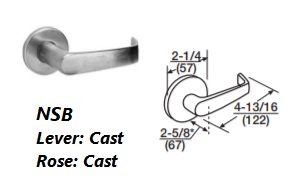

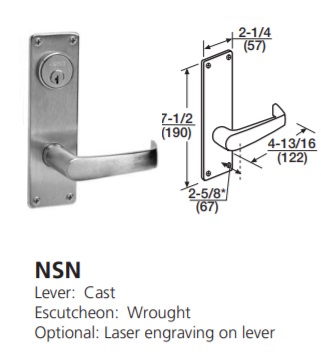

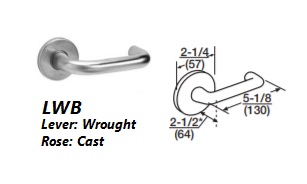

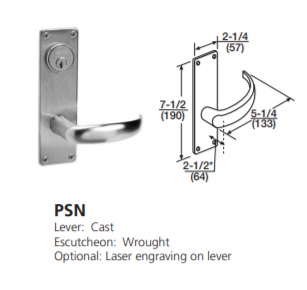

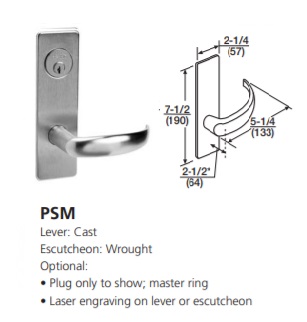

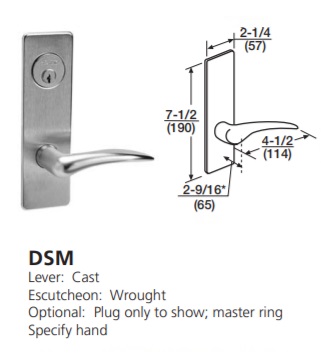

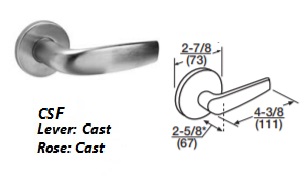

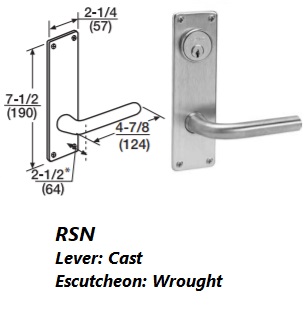

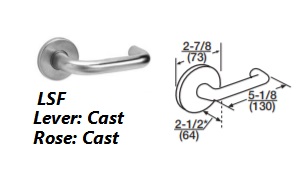

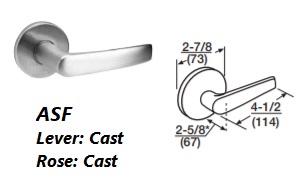

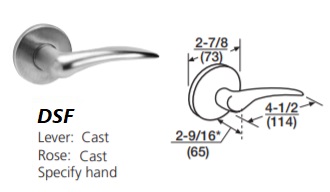

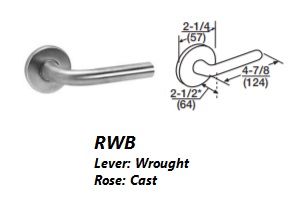

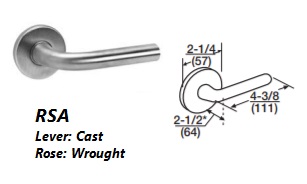

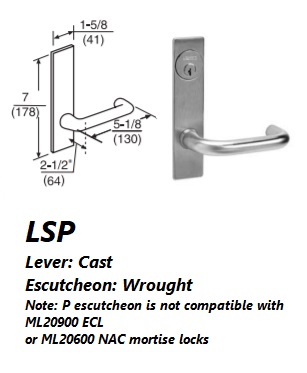

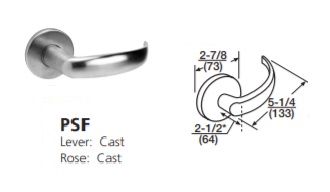

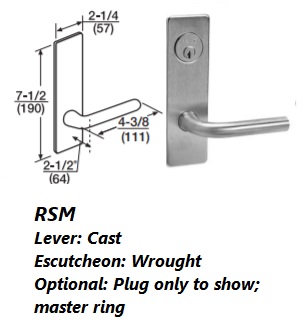

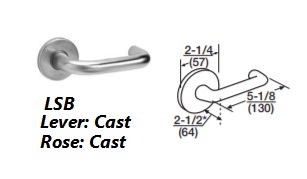

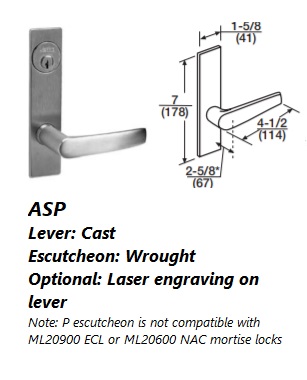

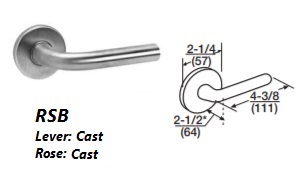

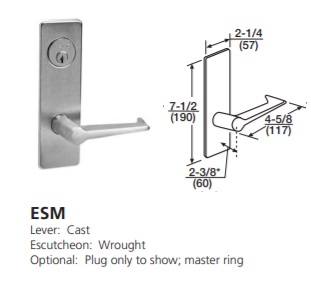

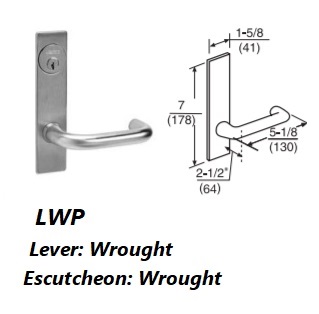

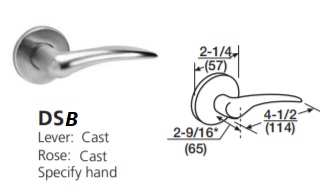

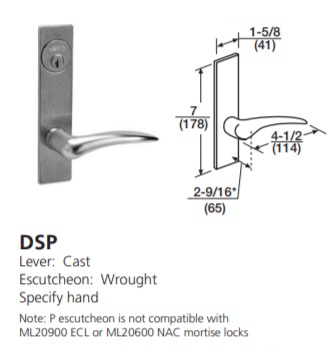

Levers

Corbin Russwin ML2002 Mortise Classroom Intruder Lock

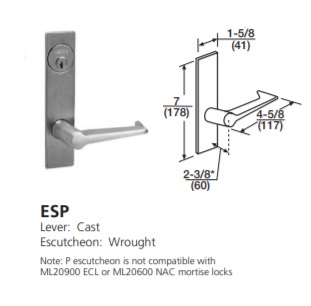

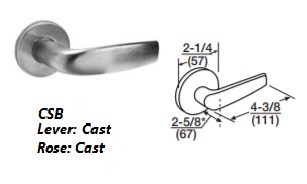

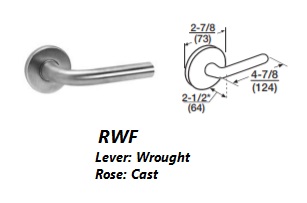

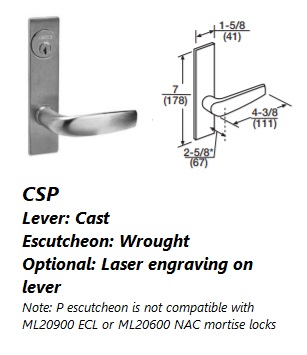

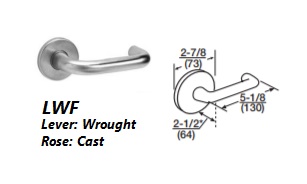

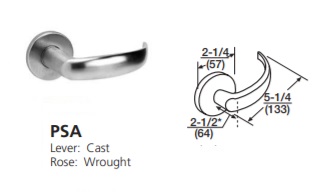

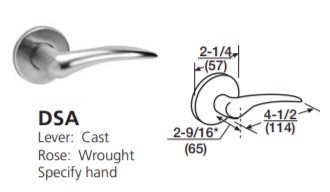

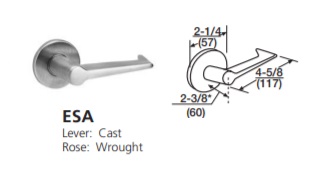

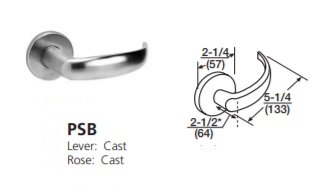

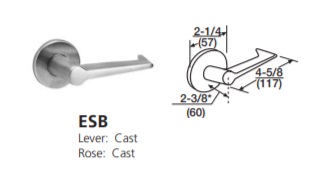

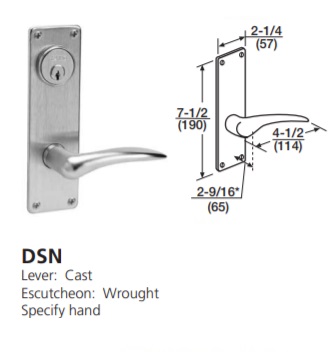

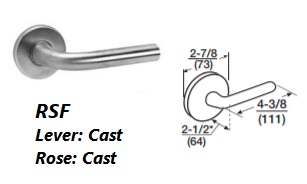

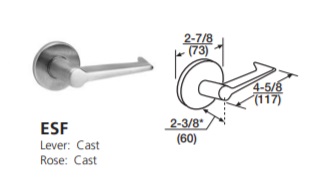

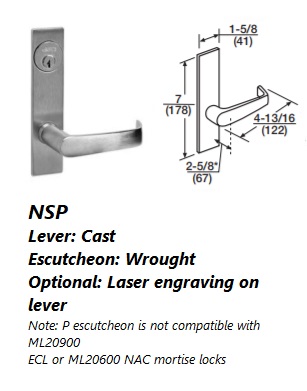

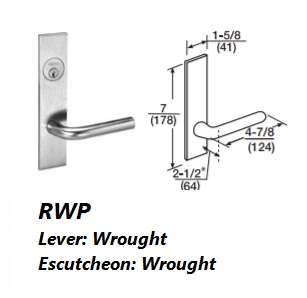

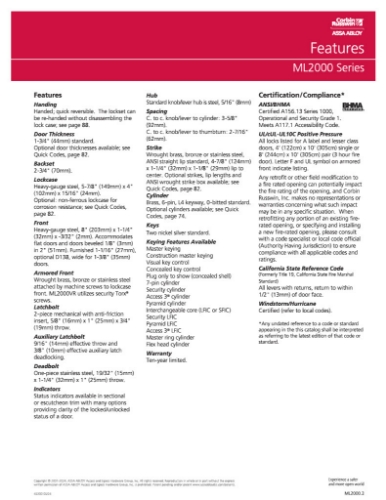

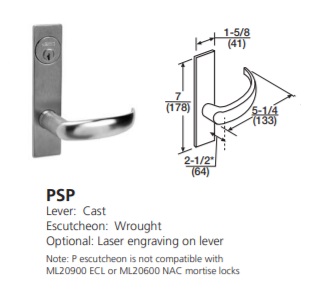

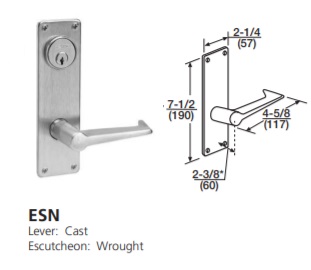

Lustra-Complies with codes requiring lever to return to within 1/2" (13mm) of door face. Brass, bronze or stainless steel. Regis-Brass, bronze or stainless steel. Citation- Brass, bronze or stainless steel - Laser engraving option. Newport -Complies with codes requiring lever to return to within 1/2" (13mm) of door face. - Brass, bronze or stainless steel - Laser engraving option. Armstrong -Brass, bronze or stainless steel - Laser engraving option. Dirke- Brass, bronze or stainless steel -Not reversible -Handed levers. Essex-Complies with codes requiring lever to return to within 1/2" (13mm) of door face. Brass, bronze or stainless steel. Princeton -Complies with codes requiring lever to return to within 1/2" (13mm) of door face - Brass, bronze or stainless steelL - Laser engraving option. ** Specification

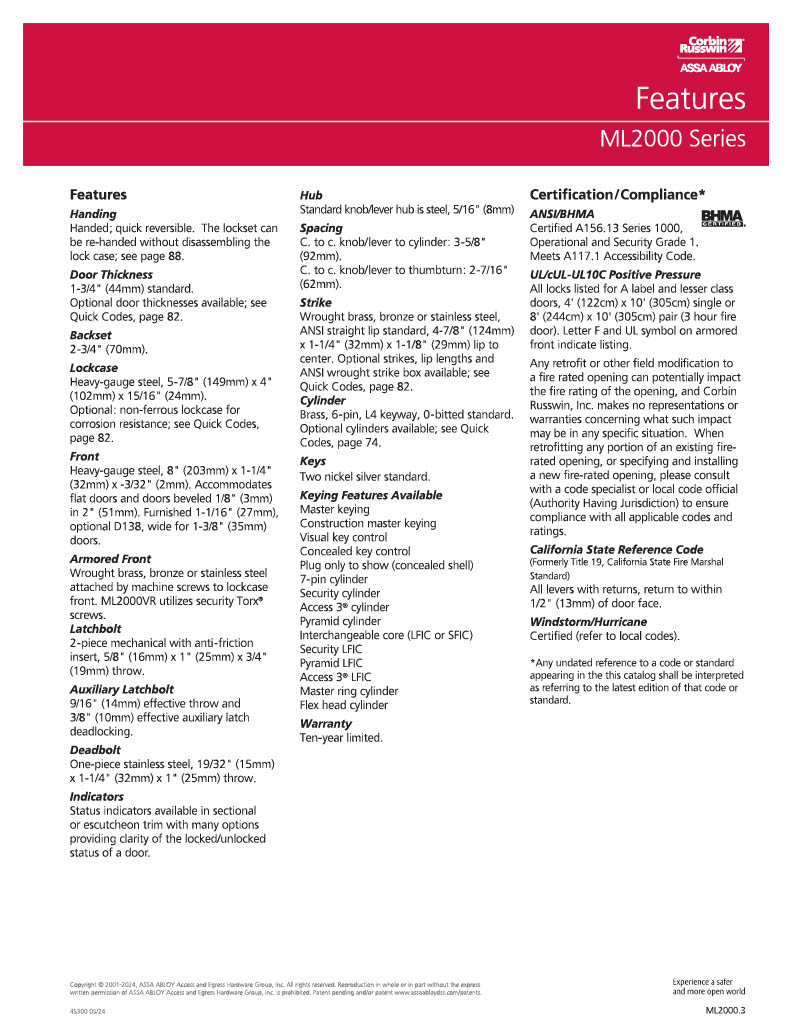

Handing:**Quick reversible. The lockset can be re-handed without disassembling the lock case

*Door Thickness:*1-3/4" (44mm) standard.

*Backset:*2-3/4" (70mm).

*Lockcase:*Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

*Armored Front:*Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt:2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

*Auxiliary Latchbolt:*9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

*Deadbolt:*One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub*Knob:*stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

*Spacing*C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

*Strike:*Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder:Brass, 6-pin, L4 keyway standard. Optional cylinders available, 7-pin cylinder, Interchangeable core (IC)

Keys:Two nickel silver standard.

*Keying Features Available:*Master keying, Construction master keying

Warranty:Ten-year limited.

Corbin Russwin ML2087 Security Vestibule, Double Cylinder

ML2087 - Security Vestibule

Latchbolt by grip outside, unless outside grip is locked by key outside.
Outside grip remains locked unless unlocked by key outside.
Latchbolt by key outside when outside grip locked.
Latchbolt by key inside.
Inside grip always rigid.
Auxiliary latch deadlocks latchbolt.
