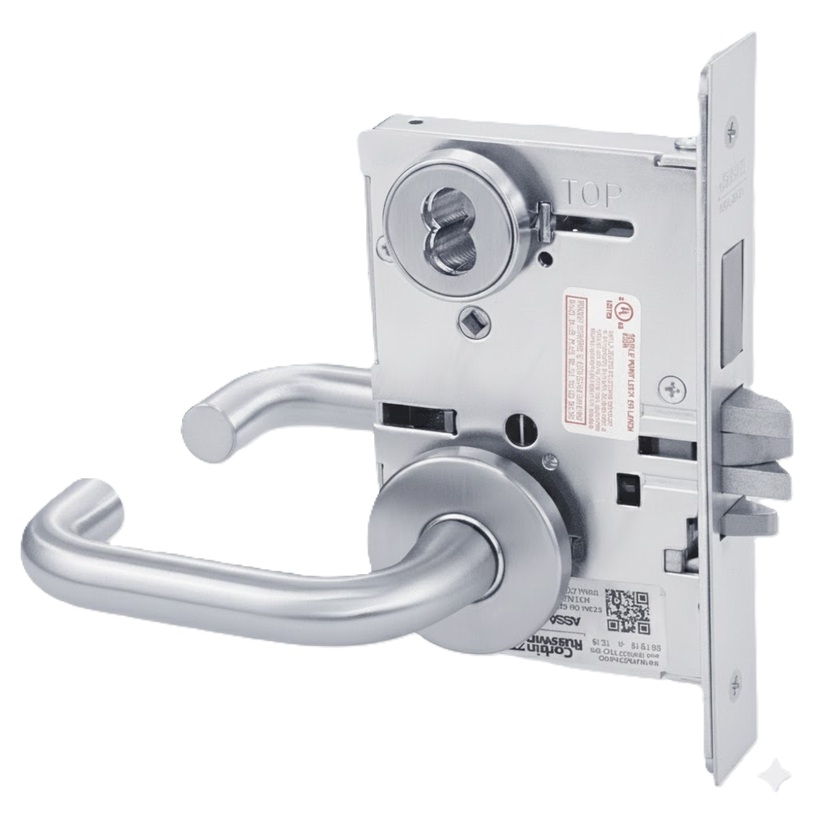

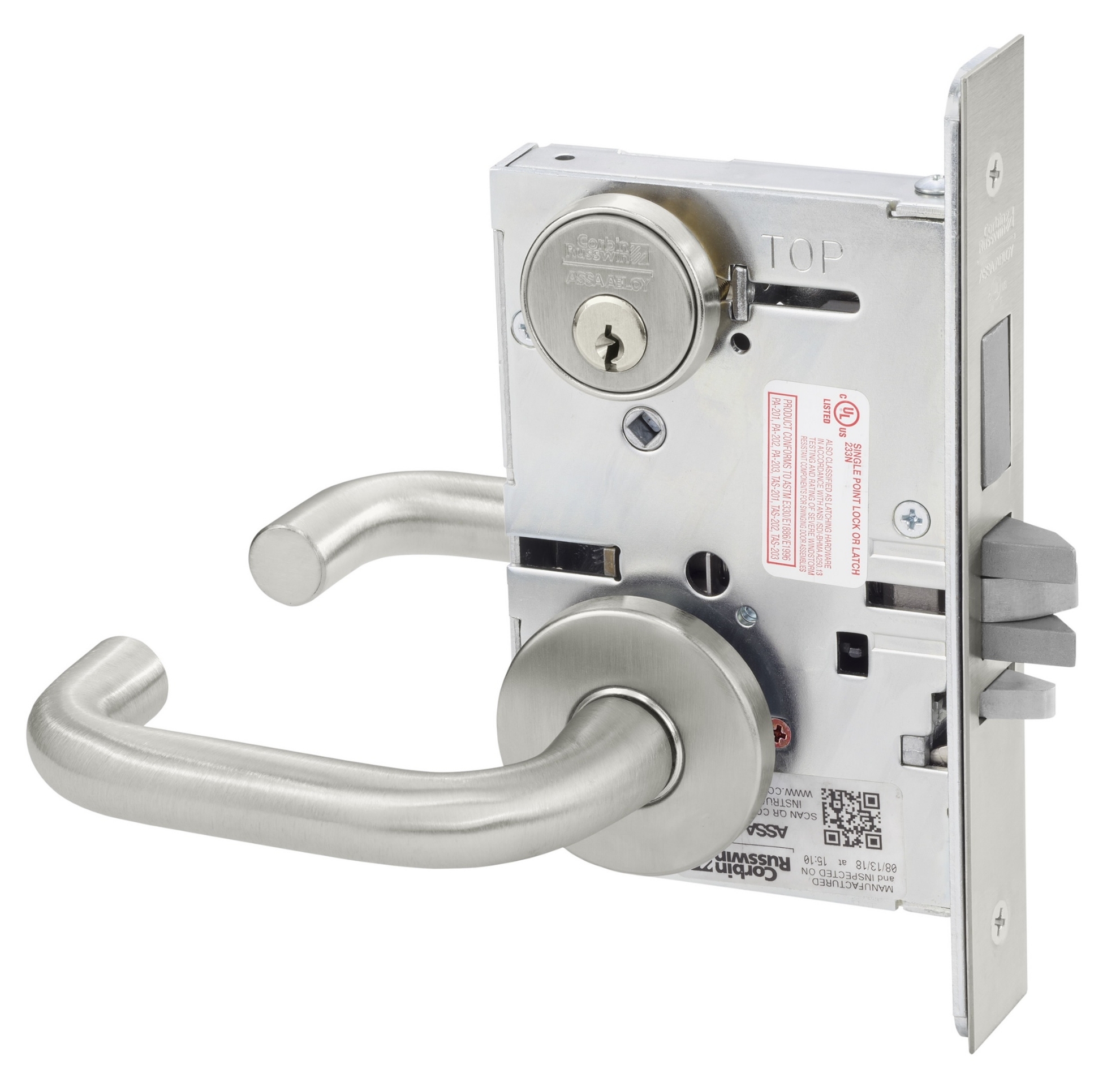

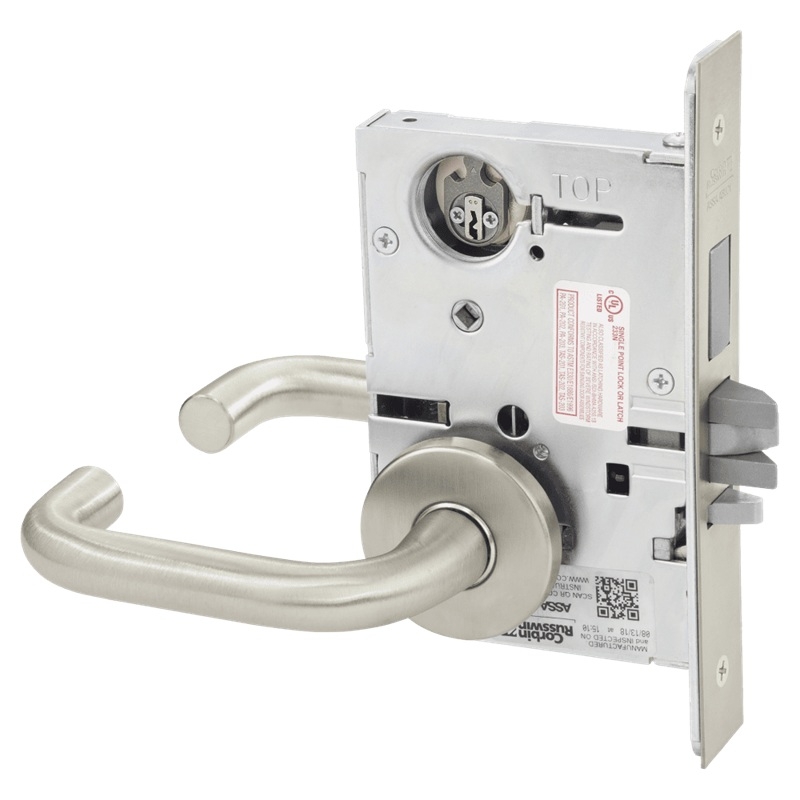

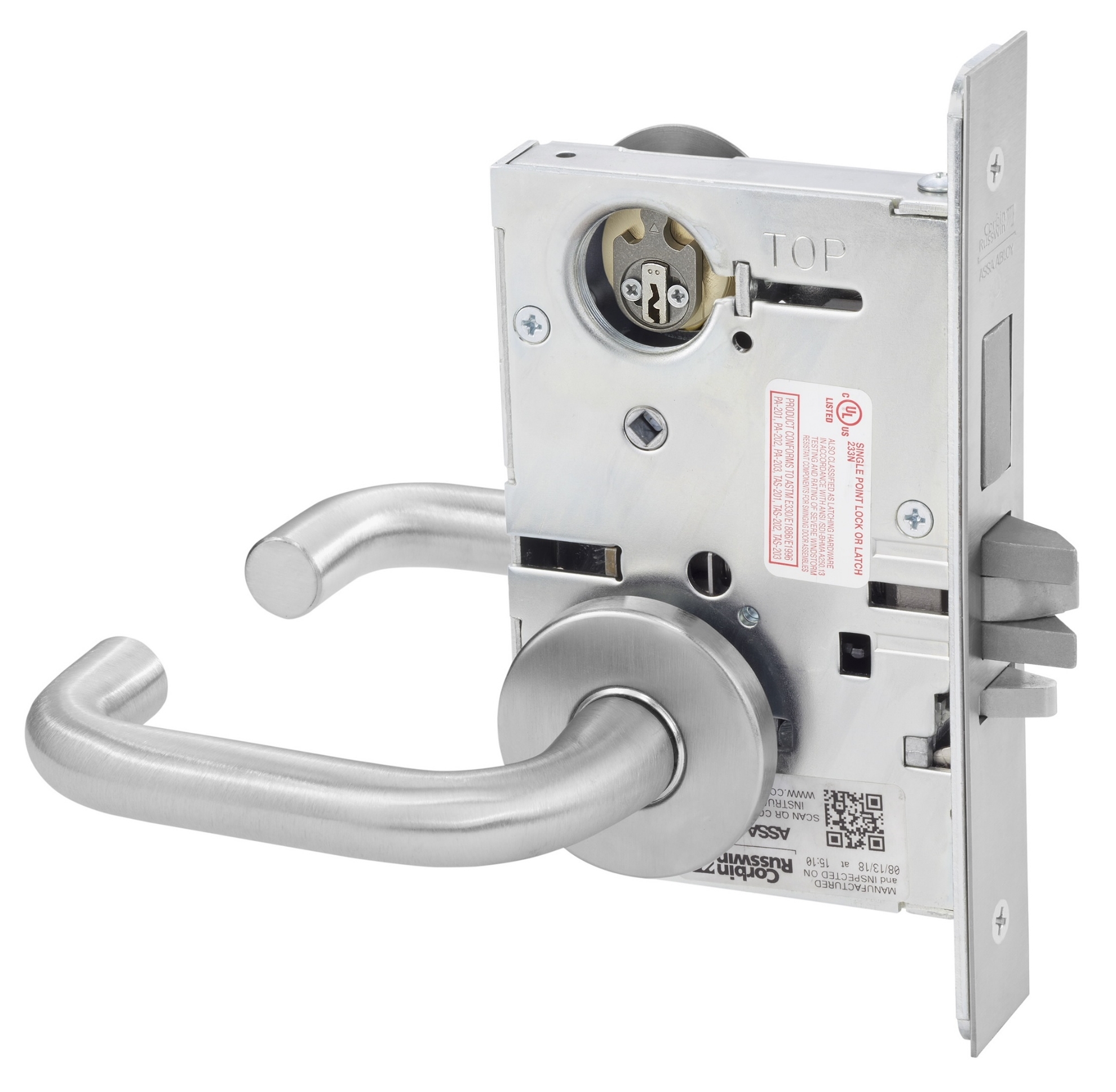

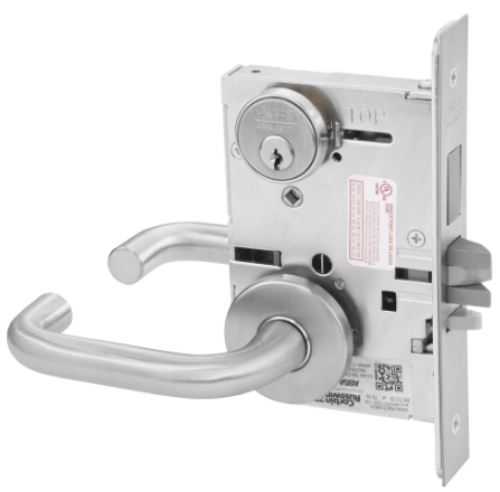

Corbin Russwin ML2092 LWA Security Institution or Utility Mortise Lock, LW Lever, A Rose

Corbin Russwin ML2092 LWA Mortise Security Institution or Utility  Lock

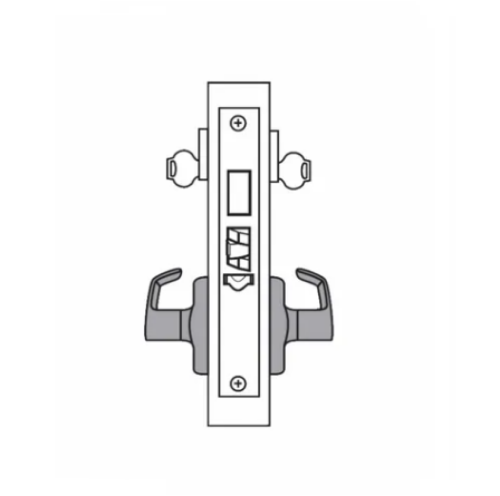

ML2092 - Security Institution or Utility

• Latchbolt by key either side.
• Deadbolt thrown and retracted by key either side.
• Auxiliary latch deadlocks latchbolt.
• Inside and outside grips remains locked at all times.

Note:Indicator shows deadbolt position only. This function does not allow free egress and can pose a life safety hazard in event of an emergency. Installation should be in an accordance with approved codes only

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt:2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin, L4 keyway standard. Optional cylinders available, 7-pin cylinder, Interchangeable core (IC)

Keys: Two nickel silver standard.

Keying Features Available: Master keying, Construction master keying

Warranty: Ten-year limited.

Model: Corbin Russwin ML2092LWA, ML2092LWA605, ML2092LWA606, ML2092LWA612, ML2092LWA613, ML2092LWA925, ML2092LWA926, ML2092LWA630, ML2092LWA722, Corbin Russwin ML2092, ML2092LWA Corbin Russwin, Corbin Russwin  ML2092LWA605, Corbin Russwin ML2092LWA606, Corbin Russwin ML2092LWA612, Corbin Russwin ML2092LWA613, Corbin Russwin ML2092LWA925, Corbin Russwin ML2092LWA926, Corbin Russwin ML2092LWA630, Corbin Russwin ML2092LWA722, Corbin Russwin ML2092, ML2092LWA Corbin Russwin, ML2092LWA605 Corbin Russwin, ML2092LWA606 Corbin Russwin, ML2092LWA612 Corbin Russwin, ML2092LWA613 Corbin Russwin, ML2092LWA925 Corbin Russwin, ML2092LWA926 Corbin Russwin, ML2092LWA630 Corbin Russwin, ML2092LWA722 Corbin Russwin

Certification/Compliance ANSI: Meets A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

UL /ULC-UL10C Positive Pressure: All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)All levers with returns, return to within 1/2" (13mm) of door face.
