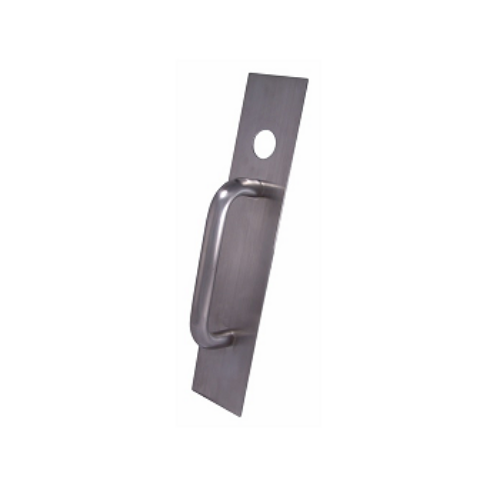

Design Hardware DH-2P-03NL-32D Pull Trim with Cylinder Hole, Night Latch Function, Trim for the 1000R, 2000R Exit Devices, Satin Stainless Steel

Product Details

Design Hardware DH-2P-03NL-32D Pull Trim with Cylinder Hole, Night Latch Function, Trim for the 1000R, 2000R Exit Devices, Satin Stainless Steel

Specification

Construction:Stainless steel construction

Pull Plate:3" Wide x 13 7/8" Height x 1/16" thick

Pull:3/4" diameter hollow x 6 1/4" etc x 2 7/16" projection

Application:Pull trim option for 1000R & 2000R. Will cover 161 door prep

(Not recommended for SVR devices as rods can be hard to Iift with rim cylinder tailpiece)

Mounting:Thru bolted design thru bolts to head of exit device and to door with finish washer:ill cover 161 door prep

Handing:Non-handed

Door Thickness:1 3/4"

Functions:02DT Dummy, 03-NL Night latch (key retracts latch)

Accessories:03-NL includes cylinder sleeve for installation into 161 door prep

Fasteners:,includes thru bolt posts, 1/4"-2 machine screws & finish washer for installation

Cylinders:Rim Cylinder required for 03NL (not included) Rim cylinder housing for 6 or 7 pin Small format IC core (less core) also available

Finishes:US3, US4, US10B, US26, US32D

Warranty:Limited lifetime warranty

Design Hardware DH-2P-03NL-32D Pull Trim with Cylinder Hole, Night Latch Function, Trim for the 1000R, 2000R Exit Devices, Satin Stainless Steel

SKU: DH-2P-03NL-32D

In Stock

$86.42

$136.55

You saved $50.13

About this item

Design Hardware DH-2P-03NL-32D Pull Trim with Cylinder Hole, Night Latch Function, Trim for the 1000R, 2000R Exit Devices, Satin Stainless Steel

Specification

Construction:Stainless steel construction

Pull Plate:3" Wide x 13 7/8" Height x 1/16" thick

Pull:3/4" diameter hollow x 6 1/4" etc x 2 7/16" projection

Application:Pull trim option for 1000R & 2000R. Will cover 161 door prep

(Not recommended for SVR devices as rods can be hard to Iift with rim cylinder tailpiece)

Mounting:Thru bolted design thru bolts to head of exit device and to door with finish washer:ill cover 161 door prep

Handing:Non-handed

Door Thickness:1 3/4"

Functions:02DT Dummy, 03-NL Night latch (key retracts latch)

Accessories:03-NL includes cylinder sleeve for installation into 161 door prep

Fasteners:,includes thru bolt posts, 1/4"-2 machine screws & finish washer for installation

Cylinders:Rim Cylinder required for 03NL (not included) Rim cylinder housing for 6 or 7 pin Small format IC core (less core) also available

Finishes:US3, US4, US10B, US26, US32D

Warranty:Limited lifetime warranty
