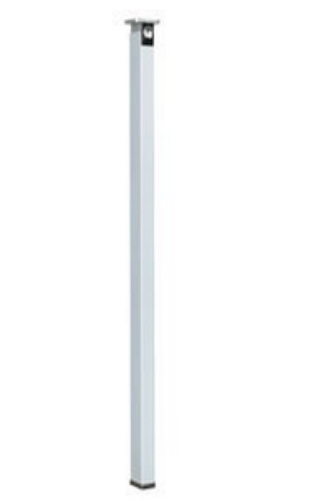

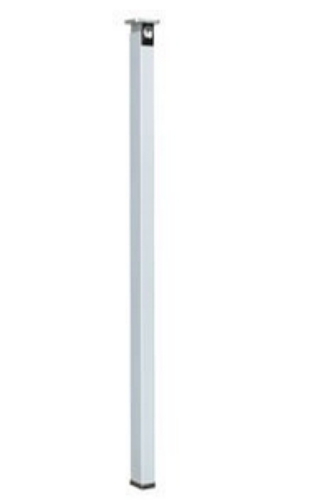

Detex 90KR 8FT KEYED REMOVABLE MULLION

Detex 90KR 8FT KEYED REMOVABLE MULLION

Benefits

Mullion can be removed in seconds with one key turn, and easily snaps back into place without needing the key

Simple, user-friendly operation

Provides years of trouble-free service and protection

Easily cut to fit most any size application (10’ and smaller)

Easy retrofit application

Cylinder located inside the building to prevent tampering (cylinder sold separately)

Easily adapted to any double door application

Easy installation, no drilling of the mullion tube

Standard primer gray coating allows for easy field painting

Features

For use on standard and fire- rated pairs of doors

Designed for heavy duty use

Small profile base plate prevents interference when moving objects through doorway

Locking head mounted to frame, not mullion

Available for 7', 8' & 10' doors

Shims provided to insure accurate fit

Technical Information

11 gauge, 2" x 3" steel mullion tube

Base anchors included

Top Fitting

Top fitting has a latch that allows the mullion to be locked back into place without use of the key.

Sill or Bottom Fitting

The sill or bottom fitting has a small footprint and, once installed, all fasteners are hidden by the mullion tube

Detex Limited Warranty

3 Year Limited Manufacturers Warranty

Model: Detex 90KR 8FT ,  90 KR 8FT , 90-KR-8FT

Listings and Approvals

UL and Warnock Hersey Listed for 3 hour fire rated pairs of doors up to 8’x8’

 WHI labeled for use with other manufacturers’ fire exit hardware (Call for non-Detex product applications)
