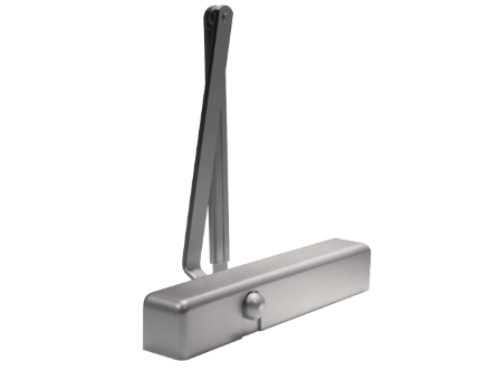

Dormakaba 8616 T Door Closer w/ Track Arm (pull side mount)

Dormakaba *8616 T Door Closer with Track Arm*(SNB1)

Provides slide track function for improved aesthetics and vandal resistance. Units can be installed to provide 85 Degree, 90 Degree, 110 Degree, or 180 Degree of door opening (conditions and application permitting). Arm is non-handed.

TTrack arm complete. Can be used on pull-side T applications (closer on door, track on frame) and JT applications (track on frame, closer on door). Can also be used with FT flush transom applications (closer on transom, track on door).

8616closer is for interior and exterior doors. Meets barrier-free requirements (adjustable size 1 thru 6).

Adjustable backcheck standard. Controls opening motion during abusive or abrupt opening.

Backcheck positioning valve standard. Maintains effective backcheck range on parallel arm applications. Valve is accessible with the closer installed.

Optional delayed action adjustable with a separate independent valve. Delays door closing to allow unobstructed passage through the opening.

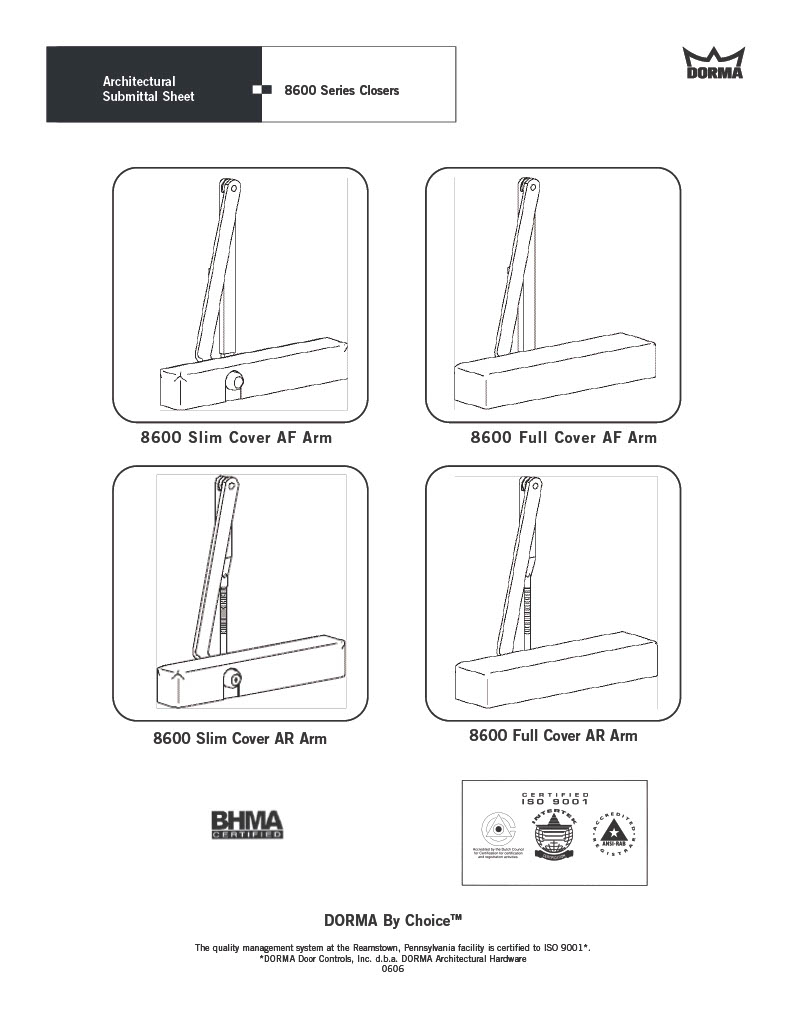

Slim plastic cover standard. Full plastic cover optional.

Designed to minimize change in closing speed during severe temperature changes.

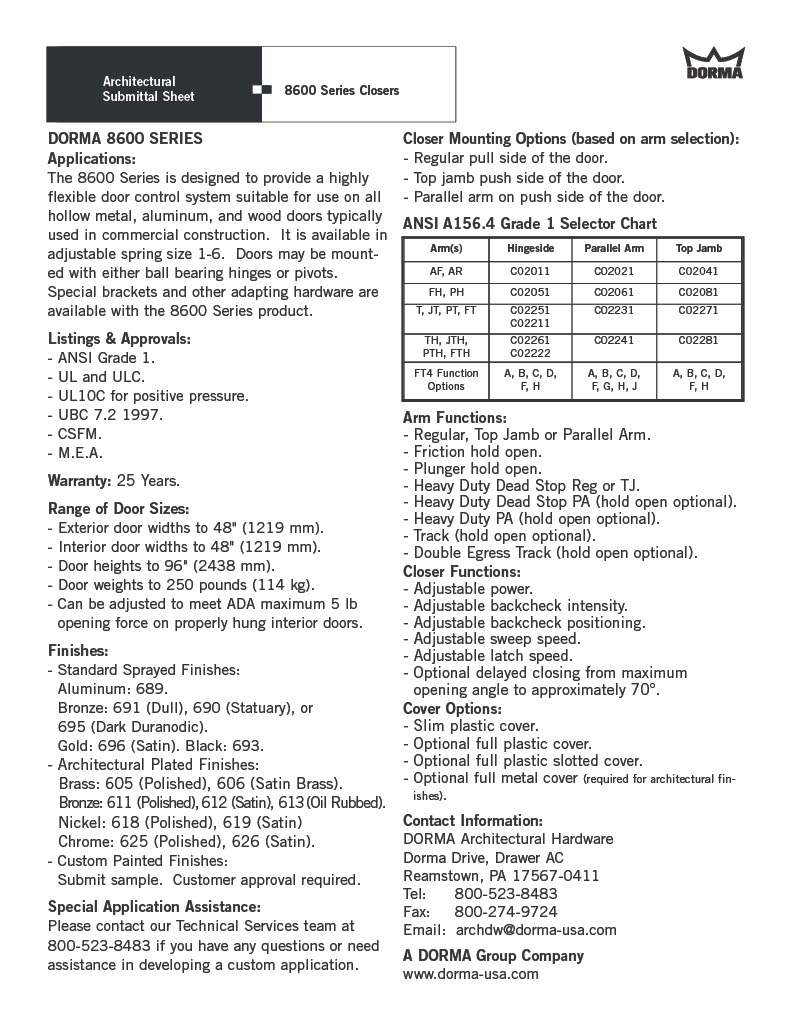

The 8600 Series is certified to the requirements of ANSI A156.4 Grade 1.

In addition to all of these superior features, the 8600 Series is backed by DORMAs unprecedented 25-year warranty.

SNB1:SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard.

Model:Dormakaba,8616 T**689, 8616 T 695, 8616T689, 8616T695
