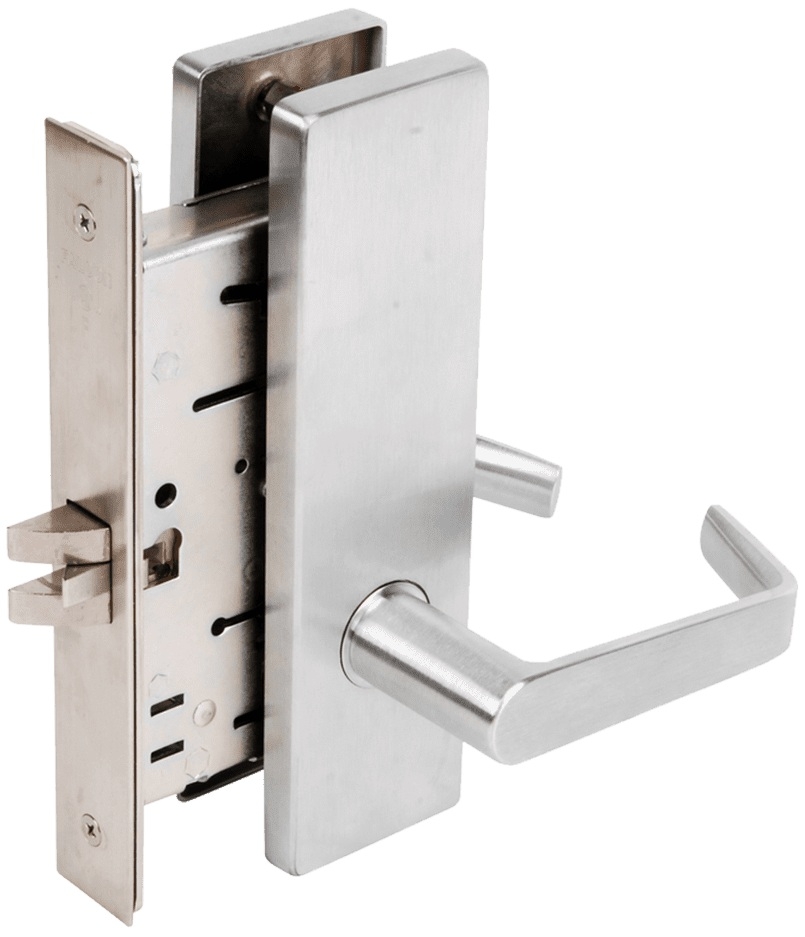

Falcon MA101 Passage Mortise Latchset - ANSIFO1

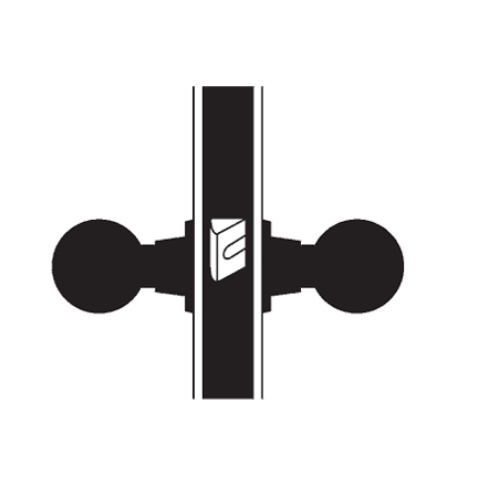

Latchbolt by knobs/levers at all times.

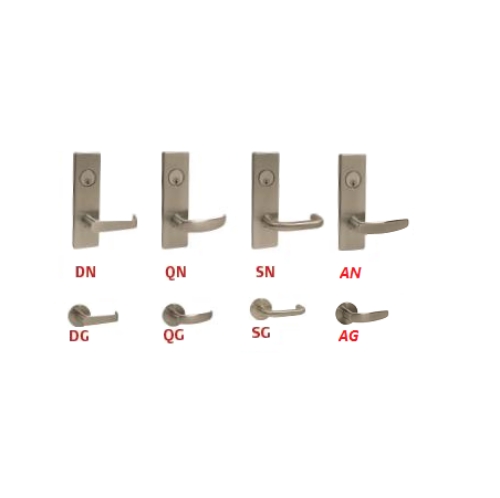

Available in the following trim styles:

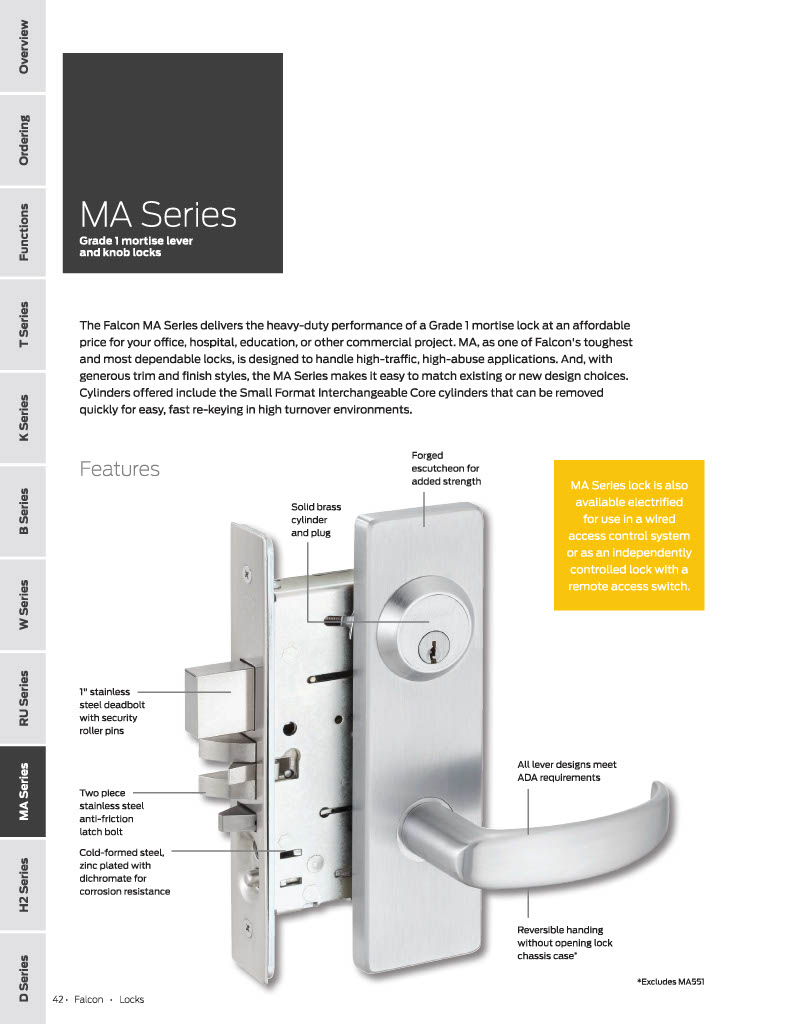

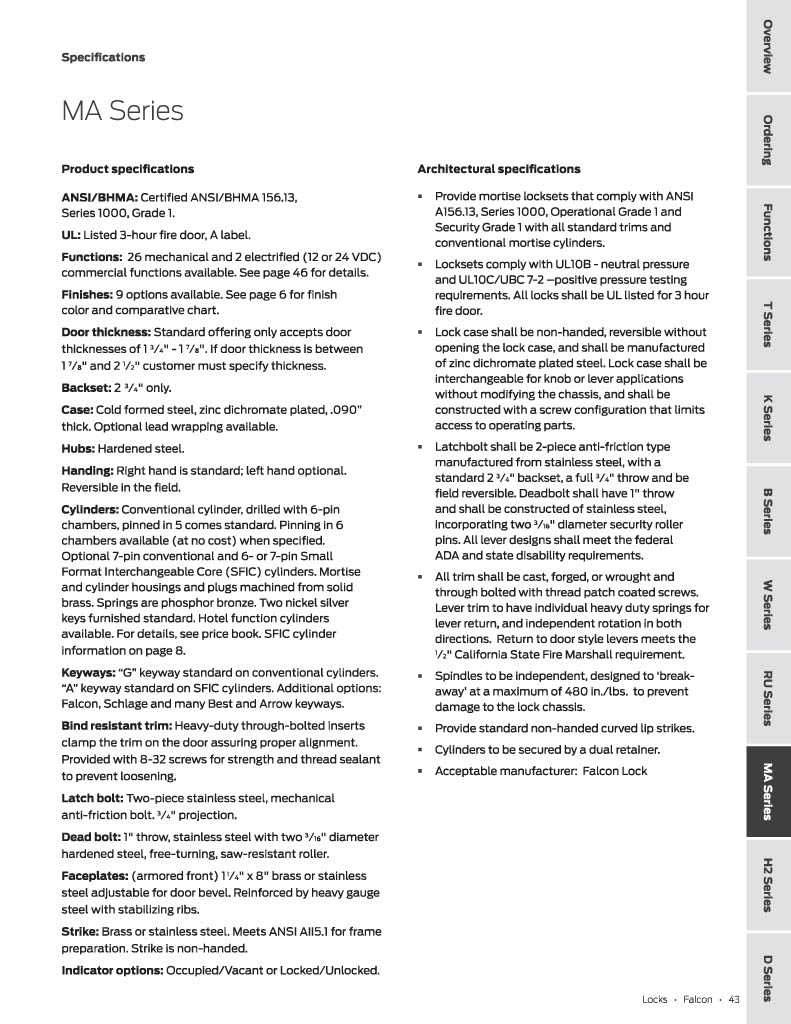

MA Series Lock Features
Door thickness:Standard accommodates thickness of 1-3/8 to 2-1/2".
Backset:2-3/4only.
Case:Cold formed steel, zinc dichromate plated, .090 thick.
Hubs:Hardened steel.
Handing:Right hand is standard; left hand optional. Reversible in the field.
Cylinders:Solid brass cylinder and plug.Standard mortise cylinders are furnished as 5-or 6-pin as standard. 6 or 7-pin are available on
interchangeable core cylinder.
Furnished with two nickel silver keys standard
Keyways:G keyway standard on standard cylinder.
A keyway standard on I/C cylinder.
Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4projection.
Dead Bolt:1throw, stainless steel with two 13/16diameter hardened steel, free-turning, saw-resistant roller.
Faceplates:(Armored Front) 1-1/4x 8brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
Electrified Functions:Available in 12 or 24 VDC. ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
UL:3 hour A label.

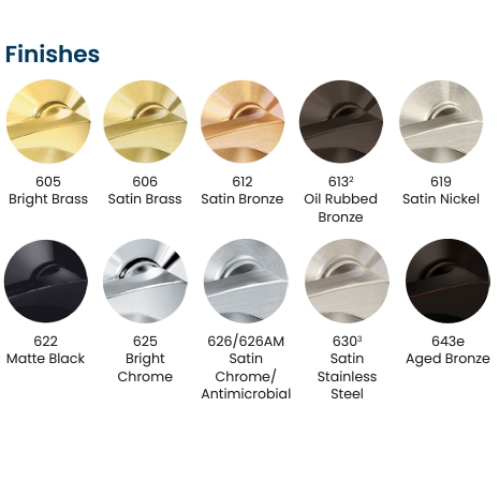

Model: Falcon MA101, DG, Dane-Gala, QG, -Quantum-Gala, SG, Sutro-Gala, DN, Dane-Napa, QN, -Quantum-Napa, SN, Sutro-Napa, HG, Hana-Gala, HN, Hana-Napa, 626, Satin Chrome, 613, Oil Rubbed Bronze, 630, Satin Stainless Steel, MA101DG, MA101QG, MA101SG, MA101HG, MA101DN, MA101QN, MA101SN, MA101HN, MA101DG626, MA101DG613, MA101DG630 ,MA101QG626, MA101QG613, MA101QG630, MA101SG626, MA101SG613, MA101SG630, MA101DN626, MA101QN626, MA101SN626, MA101HG626, MA101HN626
