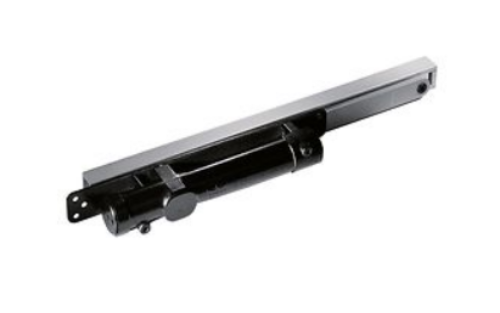

Dormakaba ITS96-13 NHO - Concealed Door Closer Non hold open - Aluminum(689)

Dormakaba *ITS96-13 NHO - Concealed  Door Closer Non hold open  - Aluminum(*689)

Technical Details

. Efficient cam and roller design. . Rapid decrease in opening force makes doors easy to open, yet provides maximum closing force at the latch. . Non-handed. . ITS9613 installs in 1-3/4" thick doors (min); . All ITS96 models can be inverted to install the closer body in the frame. . Suitable for interior wood, hollow metal, and aluminum doors and frames. . ITS9613—Interior doors up to 36" wide NOT to exceed 125 lb. . Invisible when door is closed. . Adjustable spring force size for ITS9613 is 1–3 . Opening force 5 lb or less for ITS9613 on interior doors where door without closer attached is 1 lb opening force or less. . Sweep and latch valve adjustment easily accessible after installation. . Maximum door opening approximately 130 Degree . Cushioned stop position adjustable between 80 Degree –130 Degree  (separate limiting stop required for doors in abusive conditions). . Inverted application available. Consult factory for details. . Accessory track brackets available for ease of installation or for frames lacking adequate reinforcement.

Model:Dormakaba ITS96, ITS9613, ITS96689, ITS9613689,ITS9613NHO689

All closers shall be ITS96 Series concealed in the door cam and roller closers. The closers will have aluminum alloy bodies with high compression steel springs and steel cams and rollers for doors opening up to 130 Degree maximum. The closers will have two noncritical thermostatic valves to separately control sweep and latch speeds and provide constant closing speeds even under extreme temperatures. The closers will have field adjustable spring power from size 1–3 to meet barrier-free requirements or 2–5 for exterior or larger doors. Must be capable of spring adjustment when installed in the door. Install the ITS96 closer body in the door with the track in the frame. Closers to have cushioned stop adjustable from 80 Degree–130 Degree.
