Product Details

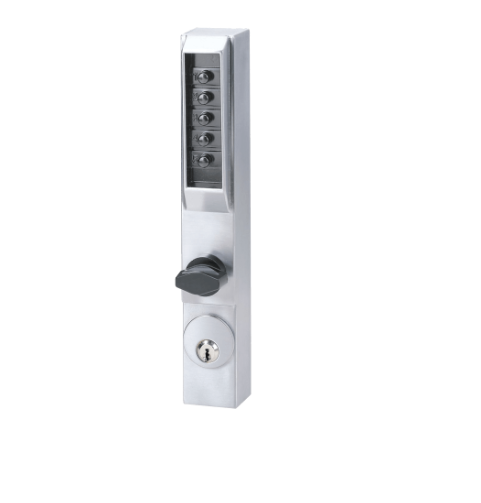

Dormakaba * Simplex 3001-26D-41 Narrow Stile Pushbutton Lock with Thumbturn Key Override Passage Lockout - Satin Chrome *
Backset : (Drive Assembly)
Model 3010: Right Hand; Right Hand Reverse—31⁄32" (25 mm)
Model 3020: Left Hand; Left Hand Reverse—31⁄32" (25 mm)
Model 3030: Right Hand; Right Hand Reverse—1⅛" (29 mm) or 1½" (38 mm)
Model 3040: Left Hand; Left Hand Reverse—1⅛" (29 mm) or 1½" (38 mm)
The 3000 lock is designed for use with Adams Rite 4510/4710 Mortise latch (not supplied).* *
* *
Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination.* *
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements* *
Locking Device: Adams Rite 4510/4710/4910 mortise latch
Number of Codes: Single access code—one easy-to-manage code for all users* *
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Non-handed; required drive assembly is factory-handed, not field reversible
Key Override: Accepts Maximum Security (MS) mortise cylinders; can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently).

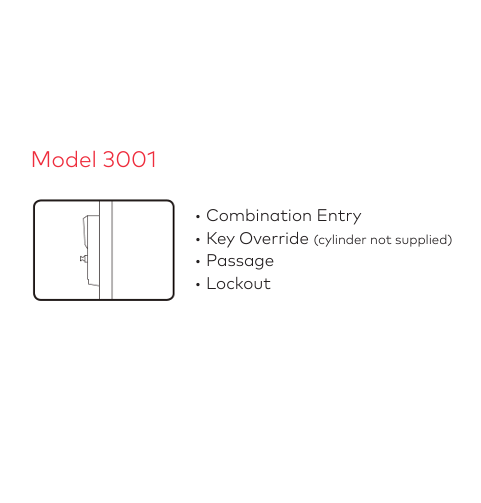

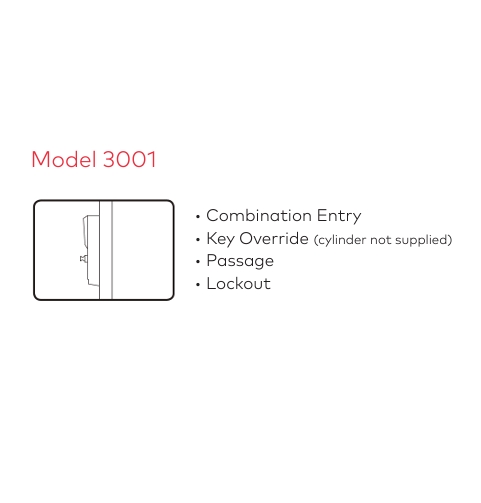

Operation Modes - Pushbutton Access:* *
Passage — allows access without using the lock entry code. Feature activated from the outside using cylinder override key.
Lockout — disables the lock so that entry code cannot be used to gain access. Access is permitted using the key override only. This is activated from the outside using the cylinder override key.
Economical: A cost effective access control solution
Mechanical Features:
Construction: All metal cast front housing, force-resistant, clutch-protected fixed thumbturn
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Finishes: Satin Chrome 26D (626); 55 (695) Duranodic
Latch: Purchased separately (Adams Rite)

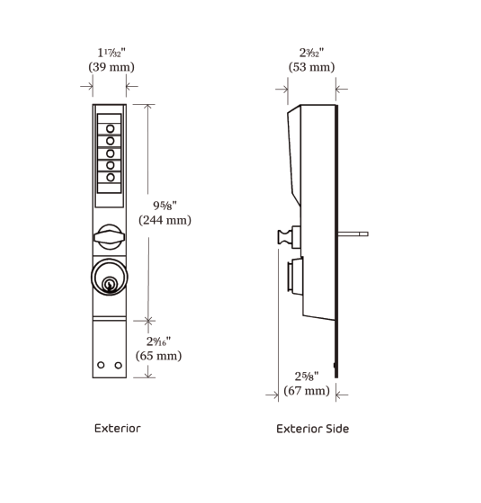

Stile Width: 1⅞" (48 mm) minimum, required for mounting
Door Thickness: 1¾" (44 mm) maximum
Weight: 4 lbs. (1.8 kg)
Strike: Sold separately (Adams Rite or Kaba Ilco Corp.)
Items Supplied Include: Installation instructions, full-scale template, combination change key, and screwdriver
Certification and Testing
Durability: Weather resistant
Warranty: 1-year warranty
Model: Dormakaba Simplex 3001-26D-41, 300126D41, 300-1-26D-41, 3001 26D 41, 300 1 26D 41, 3001-26D41, 300126D-41
