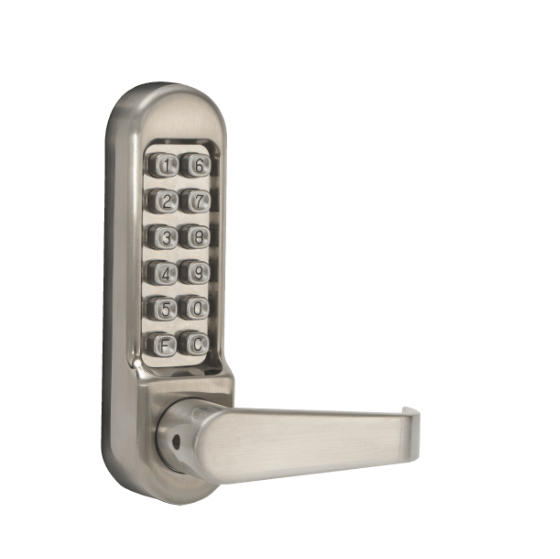

Dormakaba Simplex LD471-48-32D-41 Pushbutton Lever Lock - 2 3/8 Backset

Dormakaba *Simplex LD471-48-32D -41 Light Duty Pushbutton Lever Lock - 2 3/8 Backset  - Satin Stainless*

Kaba Simplex LD471 is for2-3/8" Backset, ( for2-3/4 Backset see LD472.See Below)

Features

Access Control:Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards

No Battery:Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device:Tubular latch

Number of Codes:Single access code (non-sequential)—one easy-to-manage code for all users

Programming:Lock is easily programmed via keypad once removed from door

Operation Modes:Pushbutton Access Passage (easily removed in field)

Economical:A cost effective access control solution

Key Override:Not available

Mechanical Features

Construction:Solid cast housings; solid cast levers

Numeric Keypad:Vandal resistant, metal pushbuttons

Handing:Non-handed, pre-assembled for right-hand door installations (easily changed in field)

Finishes:Satin Stainless 32D (630), Bright Brass (03), Antique Brass (05) housings and levers

Backset:2¾" (70 mm) backset, 2⅜" (66 mm) backset

Latch:3½" (89 mm) latch

Installation

Door Preparation:Easily installs on wood or metal doors. Requires three holes (two through bolts, one for latch spindle)

Door Thickness:1⅜" (35 mm) to 2½" (64 mm)

Supplies Included:Lock assembly, installation manual, template, and required hardware; as well as two 2½" (64 mm) x 8" (203 mm) cover plates and two 2" (51 mm) gaskets

Warranty:1-year warranty

Model: DormakabaSimplex LD471-48-32D-41, LD-471-48-32D-41, LD4714832D41, LD 471 48 32D 41, LD471 48 32D-41, LD47148-32D-41,
