Product Details

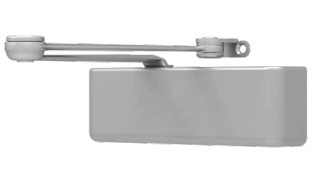

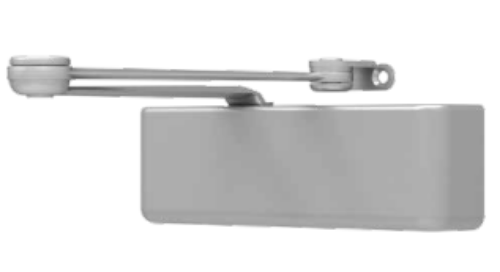

LCN 4511 EDA*Heavy Duty,*High Security Closer - Mounting Hinge (Pull Side)

Size:Adjustable Size 2-5

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm:Extra duty

Fluid:All Weather Fluid

Cover:Metal Security

Fasteners:TORX machine screw pack

Reveal:Should not exceed 1/8˝ (3 mm)

Top Rail :Less than 3-1/2˝ (89 mm), requires PLATE 4510-18, Plate requires 2˝ (51mm) minimum top rail

Head Frame:Less than 1˝ (25 mm), consultfactory

Clearance:2-1/4˝ (57 mm) behind door required for installation

Arm Clearance:Above door 1-1/8˝ (29 mm)required

Certifications:Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4511cylinder meets ADA requirements

Model:LCN 4511 EDA LH AL, 4511 EDA RH AL

LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)

Name: LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
SKU: 4511 EDA
Price: 567.80 USD
Availability: InStock

SKU: 4511 EDA

In Stock

Chat

$567.80

$835.00

You saved $267.20

About this item

The 4510 SMOOTHEE® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Resources

LCN Full Catalog

LCN 4511 EDA*Heavy Duty,*High Security Closer - Mounting Hinge (Pull Side)

Size:Adjustable Size 2-5

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm:Extra duty

Fluid:All Weather Fluid

Cover:Metal Security

Fasteners:TORX machine screw pack

Reveal:Should not exceed 1/8˝ (3 mm)

Top Rail :Less than 3-1/2˝ (89 mm), requires PLATE 4510-18, Plate requires 2˝ (51mm) minimum top rail

Head Frame:Less than 1˝ (25 mm), consultfactory

Clearance:2-1/4˝ (57 mm) behind door required for installation

Arm Clearance:Above door 1-1/8˝ (29 mm)required

Certifications:Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4511cylinder meets ADA requirements

Model:LCN 4511 EDA LH AL, 4511 EDA RH AL
